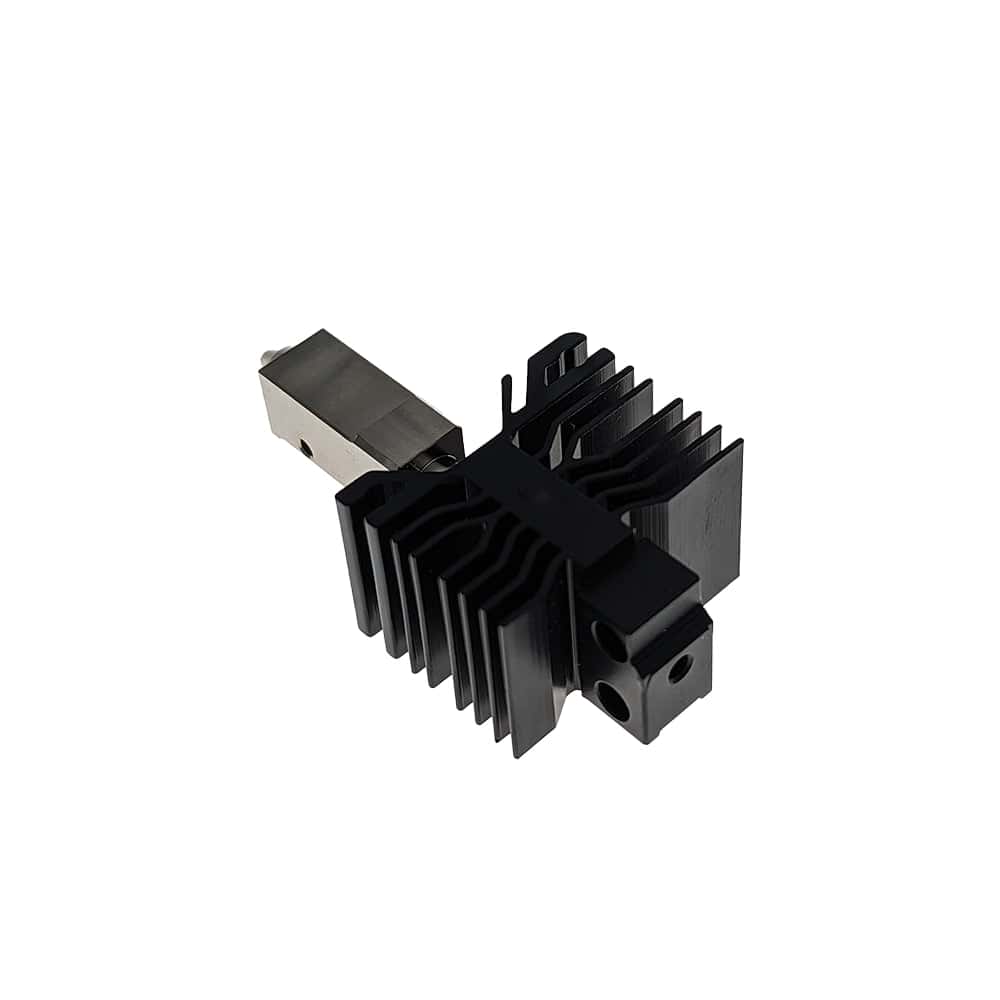

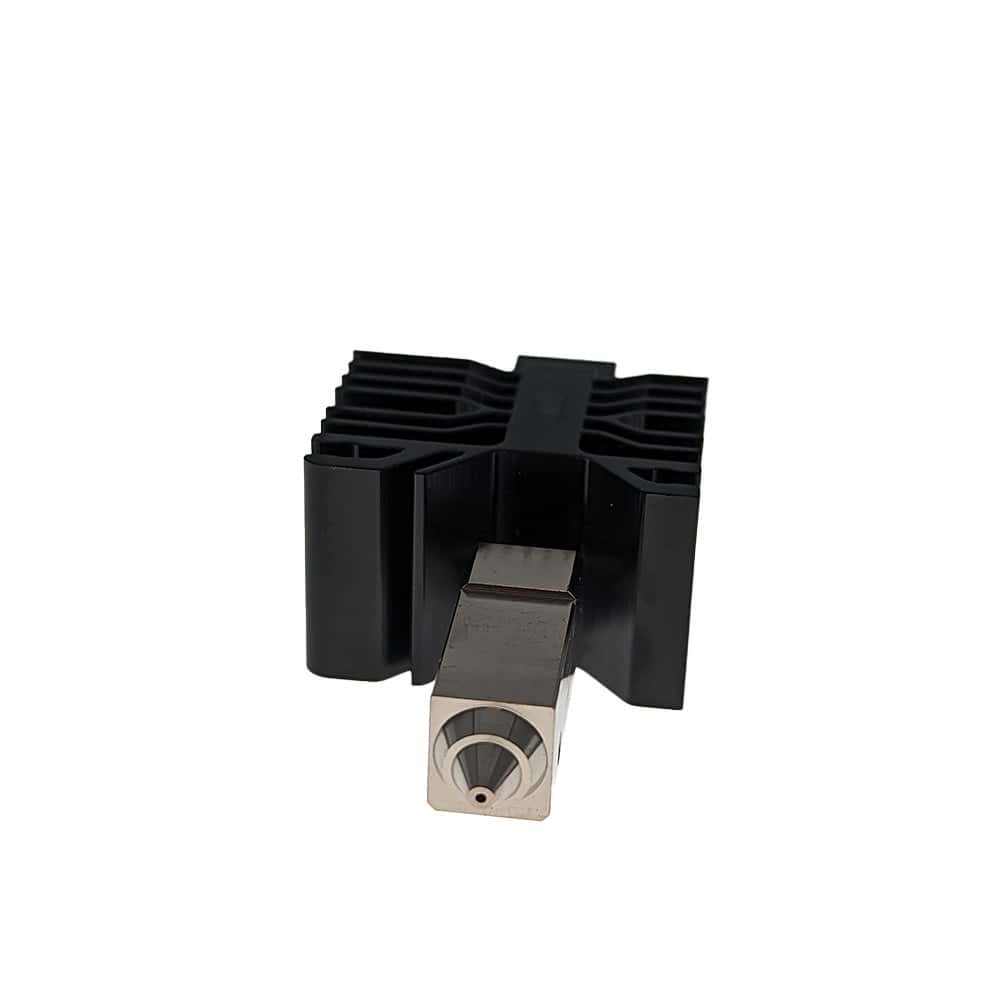

Bambu Lab All Metal Hotend

Upgrade Hotend Kit for Bambu lab X1&P1P 3D Printers

Heat sink and throat

Adopt side fixed shaft with top wire fixing

Hexagonal top wire: Easier and more convenient to fix and dismantle

Aluminum radiator: Radiator and pipe heating blocks are removable

Fixed shaft: Fastened with top screw

Integrated piping and heating blocks: Stable connection, removable and replaceable, reducing the cost of use

Hardened steel nozzles: Good thermal conductivity and high hardness

High temperature resistant Fast thermal conductivity

1. Heating block upgraded to chrome zirconium copper with nickel-plated finish

2. The nozzle is made of hardened steel with hardening and hardening

treatment to increase wear resistance and extend service life.

3. Chrome-plated copper heating block：500℃

4. Hardened steel nozzles：0.4mm

Throat and nozzle, Inner wall roughness RA0.4

Smooth inner wall of the orifice to reduce clogging and improve print quality

Throat wall thickness: 0.25mm

Printing Consumables

Support printing PLA, ABS, PETG, TPU, PP, PC, nylon, PEEK, PEI and other consumables

Throat and nozzle Structural upgrade

1. Solve the problem of shedding, removable and replaceable, reduce the cost of use

2. The throat and the heating block are one piece of interference fit throat structure upgrade, and the step limit is added at the fit with the heating block to solve the phenomenon of leaking and falling off.

3. Nozzle structure upgrade, using threaded connection heating block and throat, to solve the phenomenon of falling off, and can be disassembled and replaced to reduce the cost of use.

Product size:

Suitable for: 1.75mm consumables

Hole diameter: 0.4mm

Inner hole: 2.0mm

Thread pitch: 1mm
