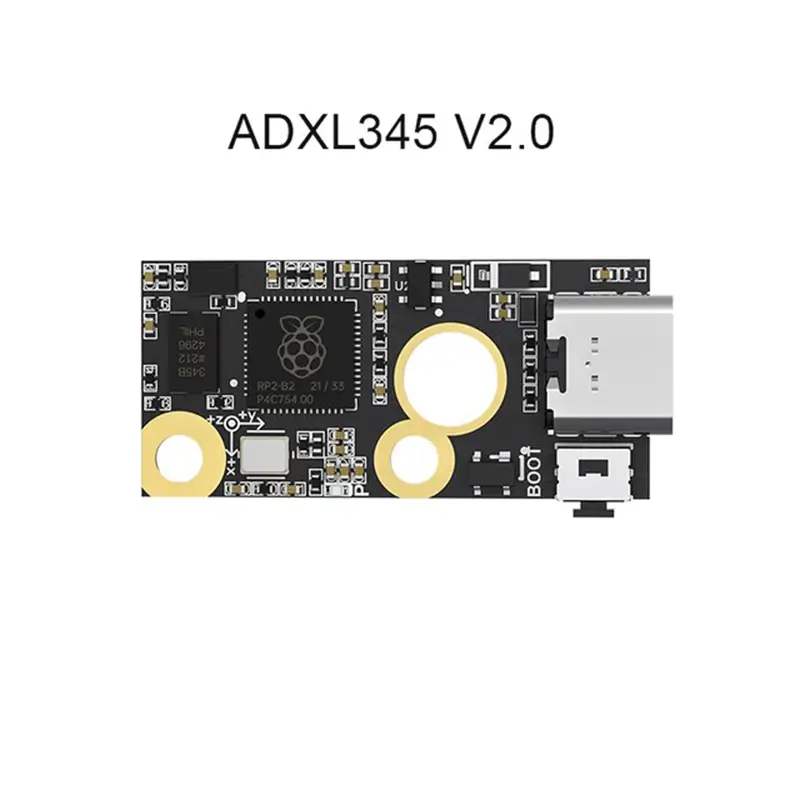

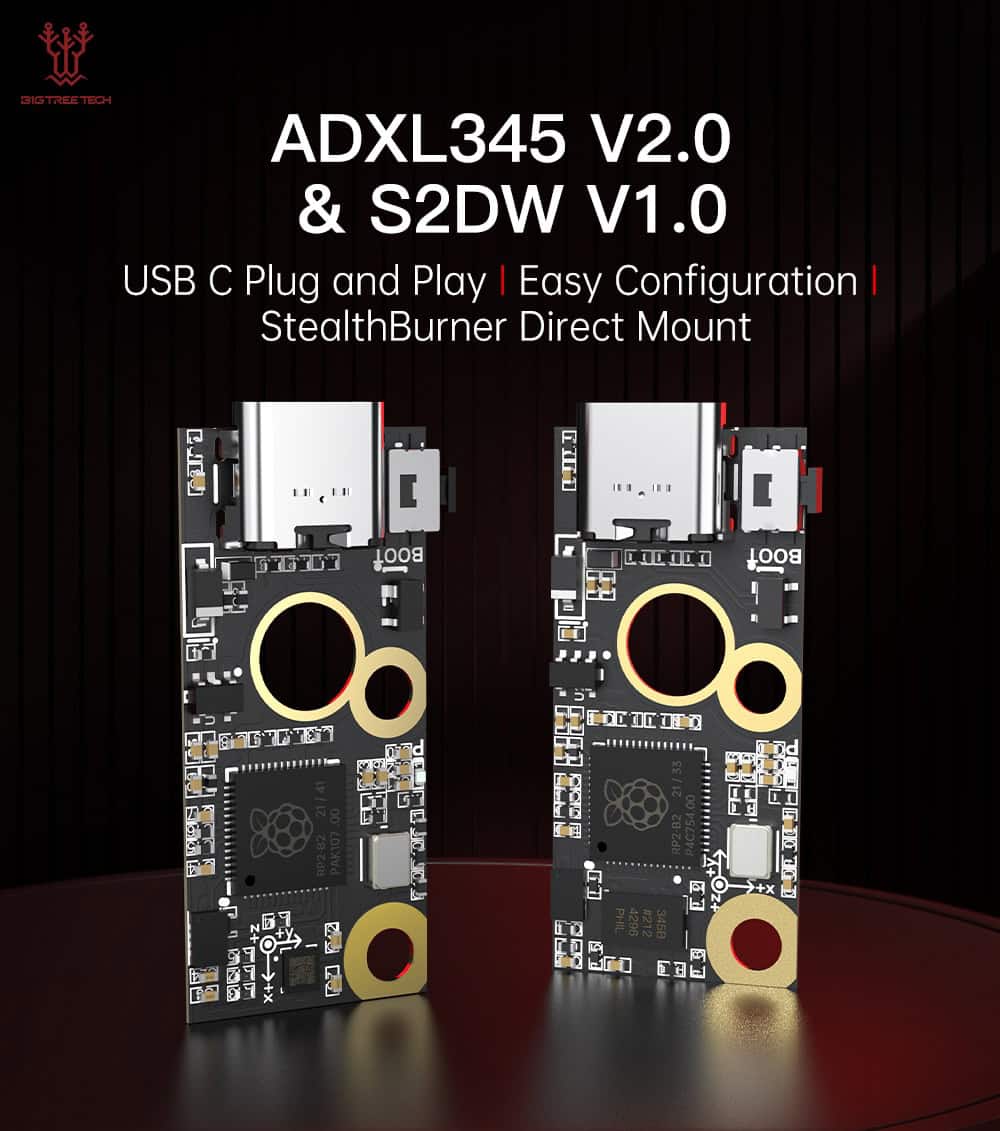

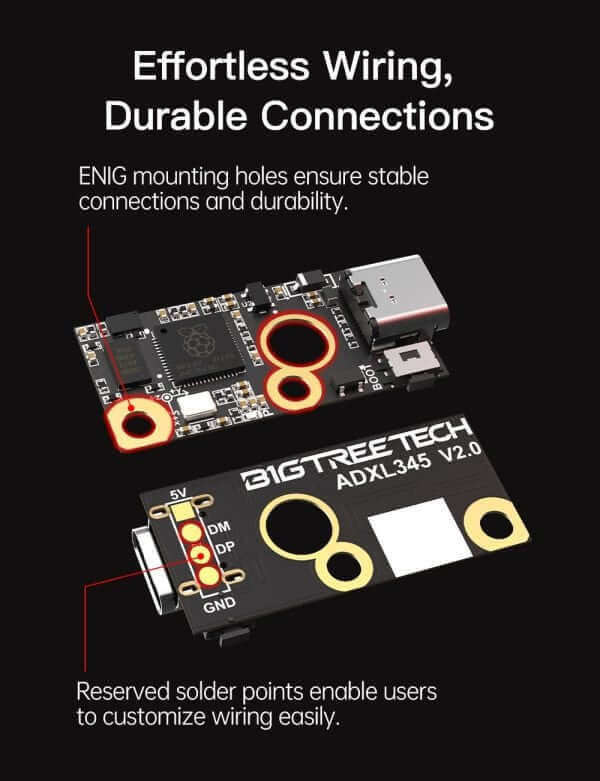

BIGTREETECH, ADXL345 V2.0

BIGTREETECH ADXL345 V1.0 Accelerometer Board Support Klipper 3D Printer Parts For Voron V0.1 Raspberry Pi 36MM Motor

Features:
brand new and high quality

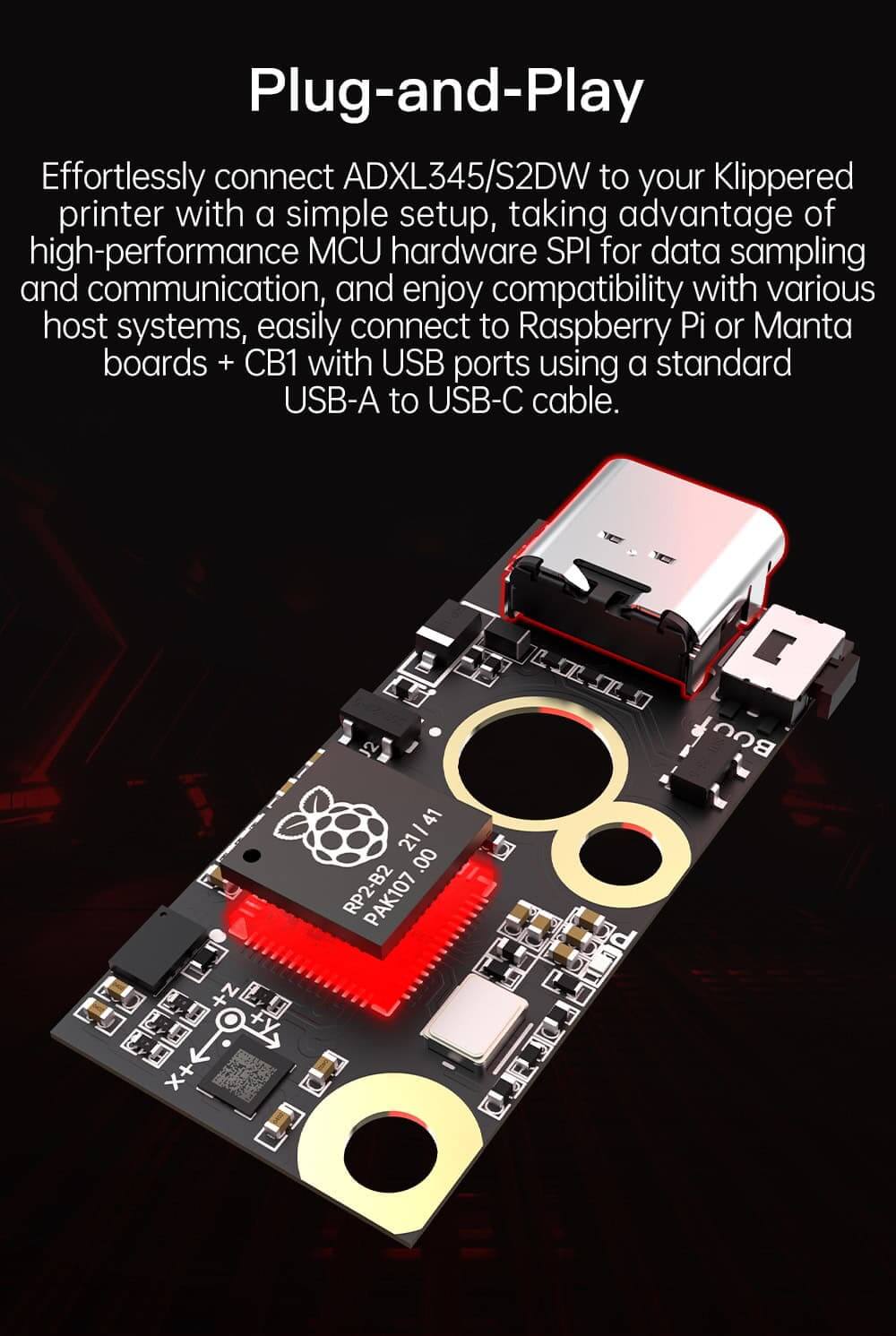

ADXL345 connect to Raspberry Pi or MCU via Spi.
ADXL345 is a 3-axis accelerometer with optional measurement range of ±2 g, ±4 g, ±8 g or ±16 g, 13-bit resolution. The ability to measure both dynamic acceleration due to motion or shock, as well as stationary acceleration, such as gravitational acceleration, allows the device to function as a tilt sensor.

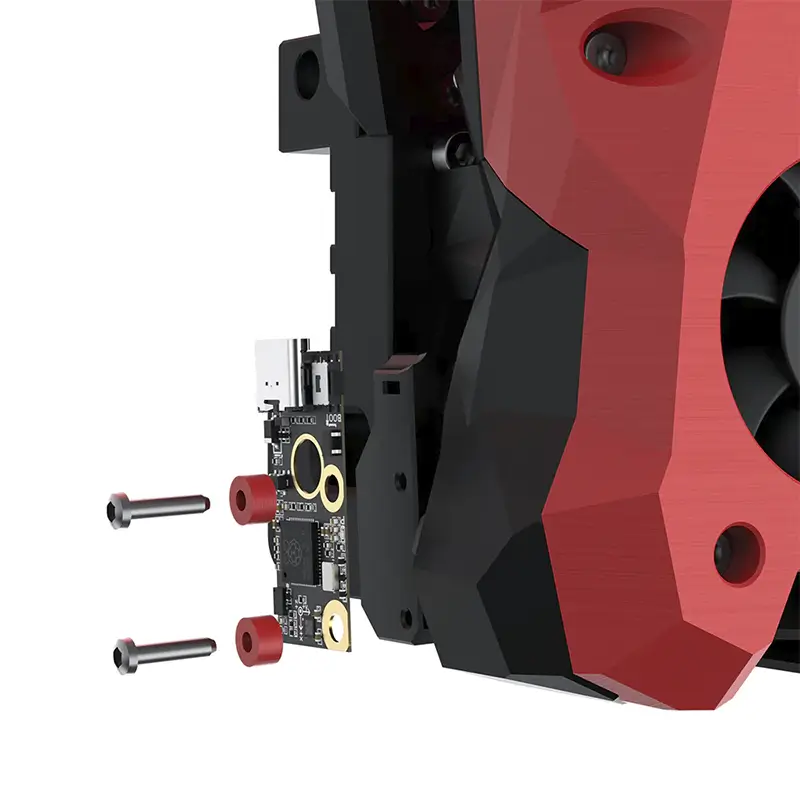

It can be directly installed on the 36 stepper motor, which is convenient to fix.
One end of ADXL345 V1.0 cable adopts ZH1.5 6Pin plug, and the other end adopts 2.54mm 6x1Pin head 70cm, which can be easily compatible with motherboards without ADXL345 socket, and the cable is 70cm, which is convenient for users to DIY.
This product currently only supports Klipper firmware.
We have designed a 5V power supply that is more suitable for most motherboards.

Specifications:
Model: ADXL345 V1.0
Power: 5V
Size: approx. 5.017×3.416cm/1.98×1.34in

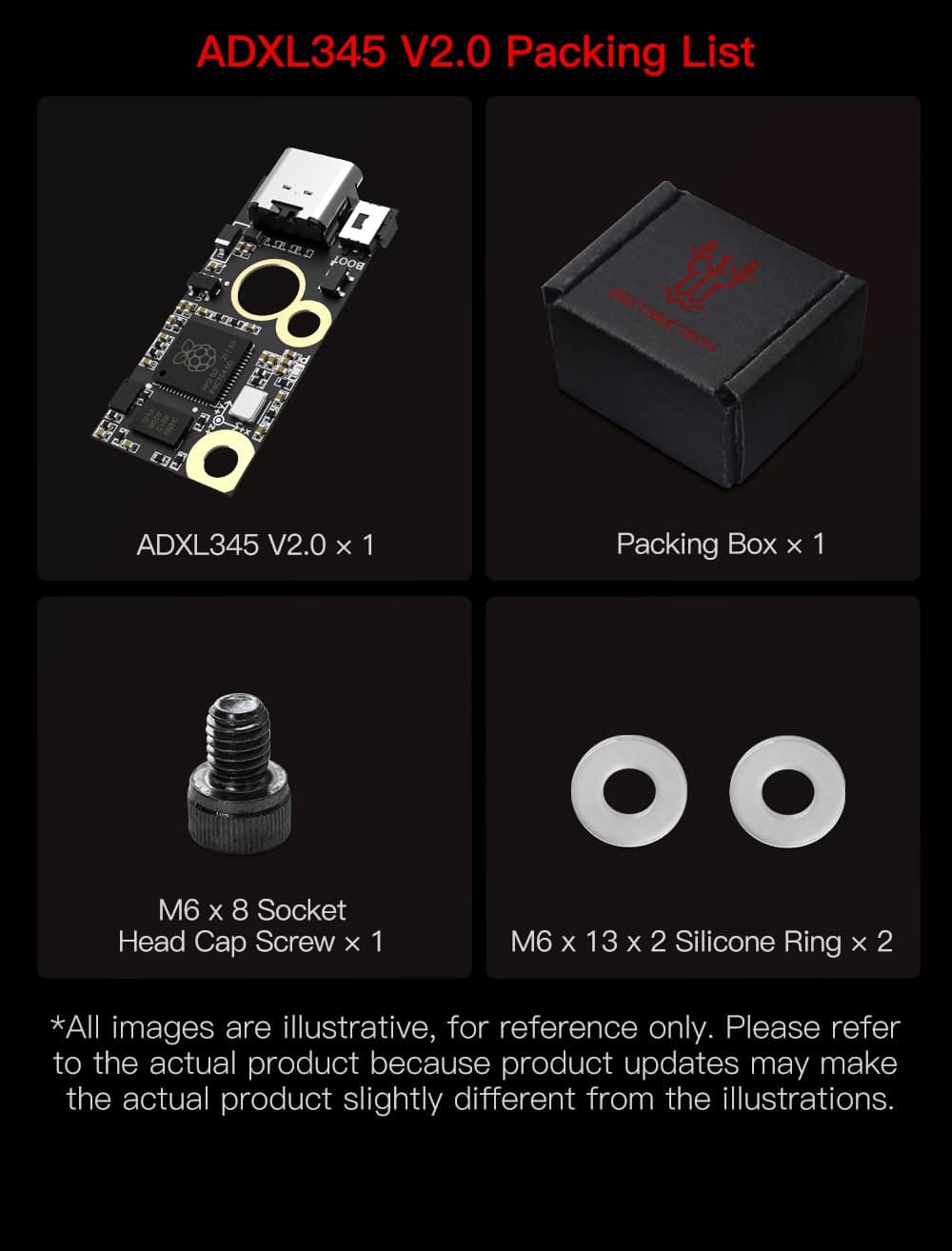

Package Includes:
1PC x ADXL345 V1.0 Accelerometer Board

Note:
The ADXL345BCCZ three-axis accelerometer needs to have a stable installation plane, otherwise it will affect its measurement accuracy.

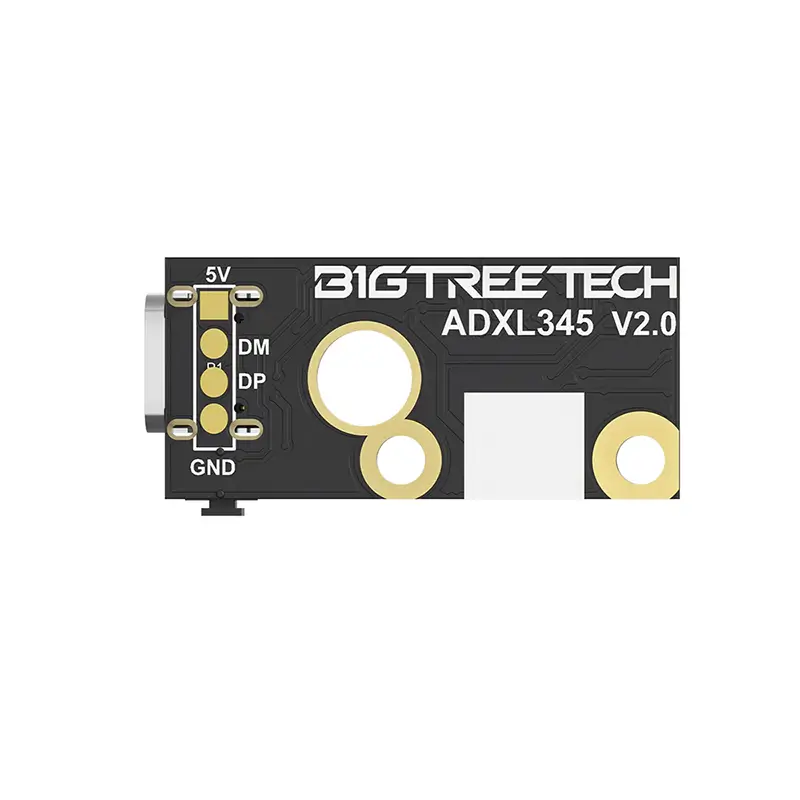

Note that the board is powered by 5V, and 5V and GND cannot be reversely connected.
