BIGTREETECH, TMC5160T Plus V1.0 High-Power Stepper Motor Driver

 79.00  235.00

Opis

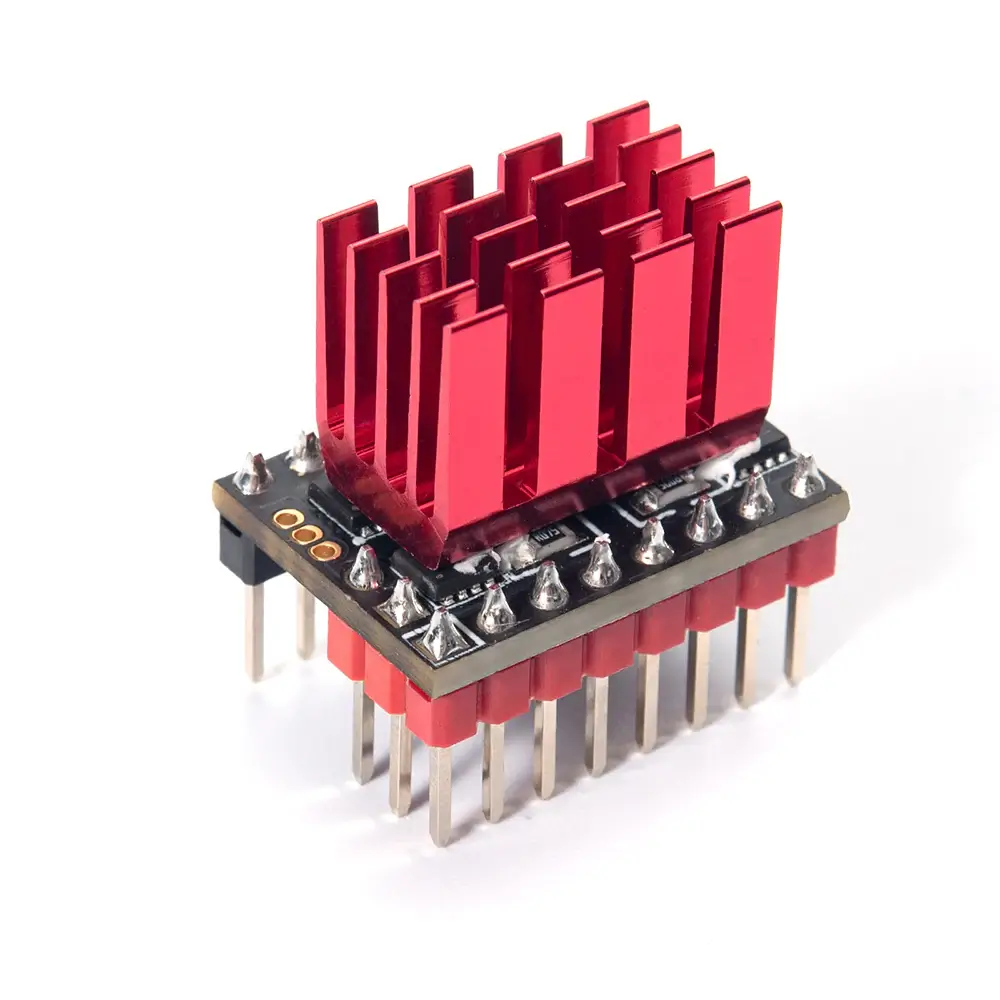

Product Profile

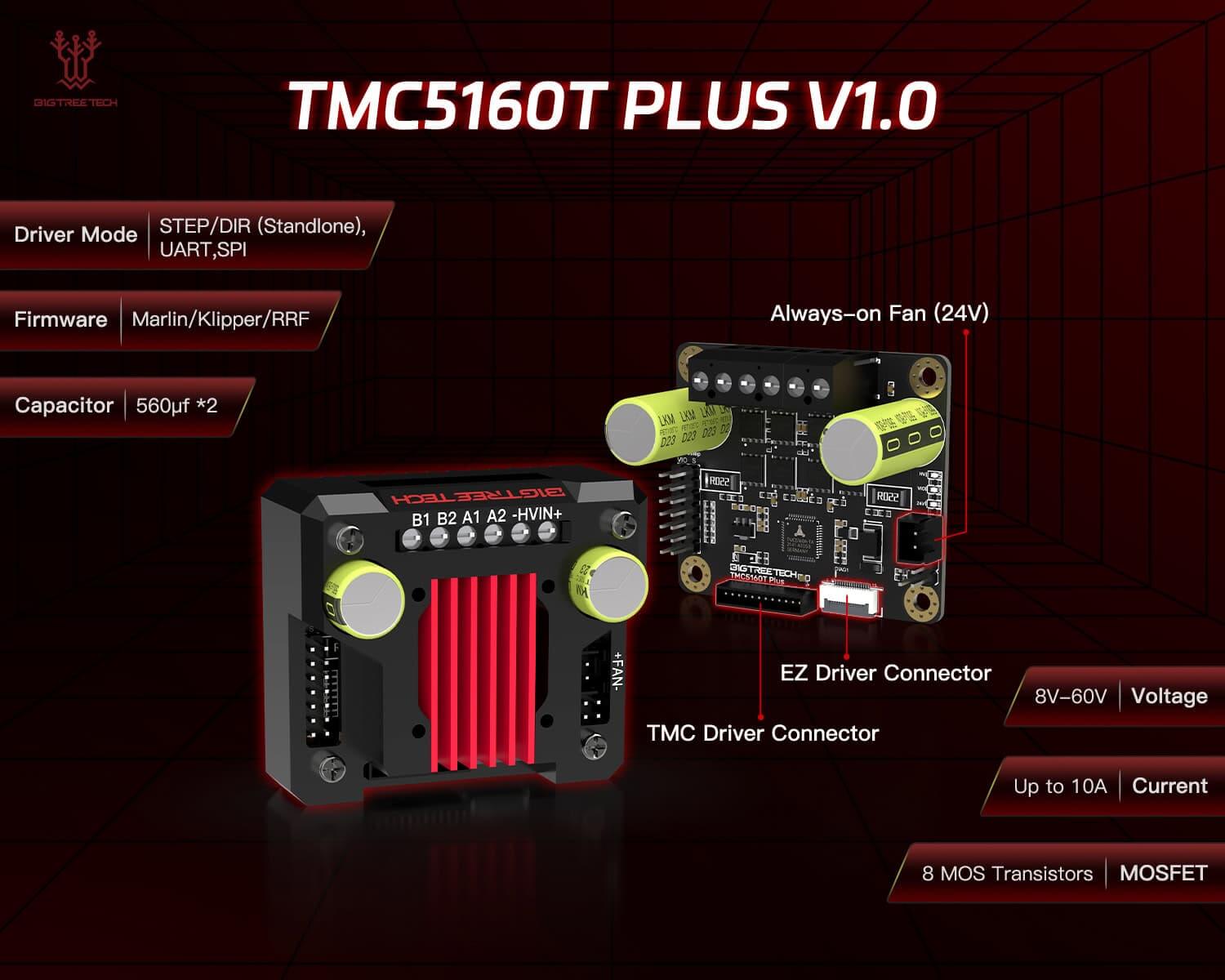

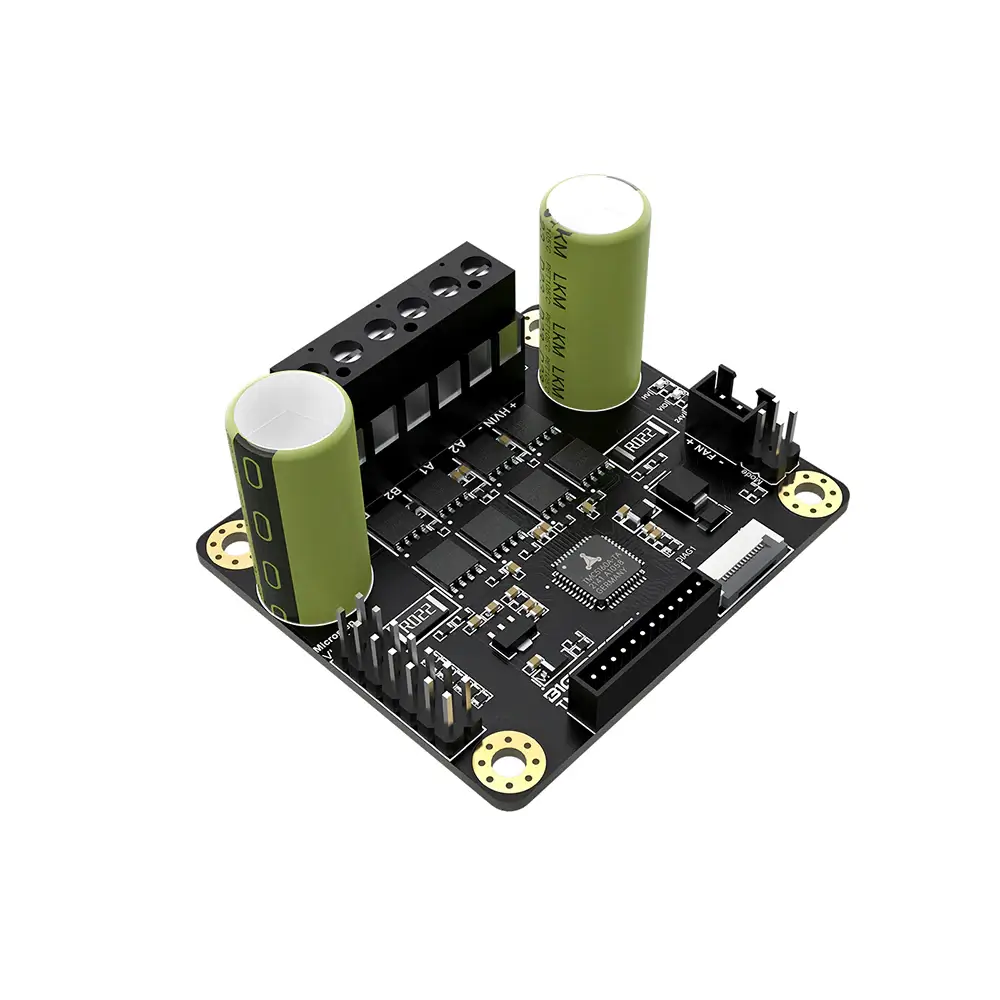

TMC5160T Plus is a high-power stepper motor driver control module, featuring 8

high-power MOSFETs separately mounted on the board with a maximum voltage

of 60V. This supports a wider range of stepper motors and offers greater

adaptability.



Features Highlights

– 8 high-power MOSFETs separately mounted on the board with 100V voltage

resistance, 93A current resistance, and equivalent resistance as low as 6mΩ,

significantly enhancing the drive’s performance;

– Supports a maximum voltage of 60V, a maximum effective current (IRMS) of

10.6A, and a sine wave peak current of up to 15A;

– StealthChop™ mode and SpreadCycle™ mode selectable, with standalone

mode, UART mode, and SPI mode selectable;

– Generates significantly less heat compared to other drives with the same chip

model, and outperforms others on the market;

– Can prevent motor jitter and avoid losing steps;

– Tested to drive 36, 42, 57, 86, etc., stepper motors;

– ESD protection on the drive power, logic power, etc., to prevent damage due

to power fluctuations and static electricity;

– On-board 24V always-on fan interface facilitates active cooling;

– Encoder interface reserved for DIY usage;

Integrated heat sink design, providing high heat dissipation while enhancing

structural integrity and aesthetics;

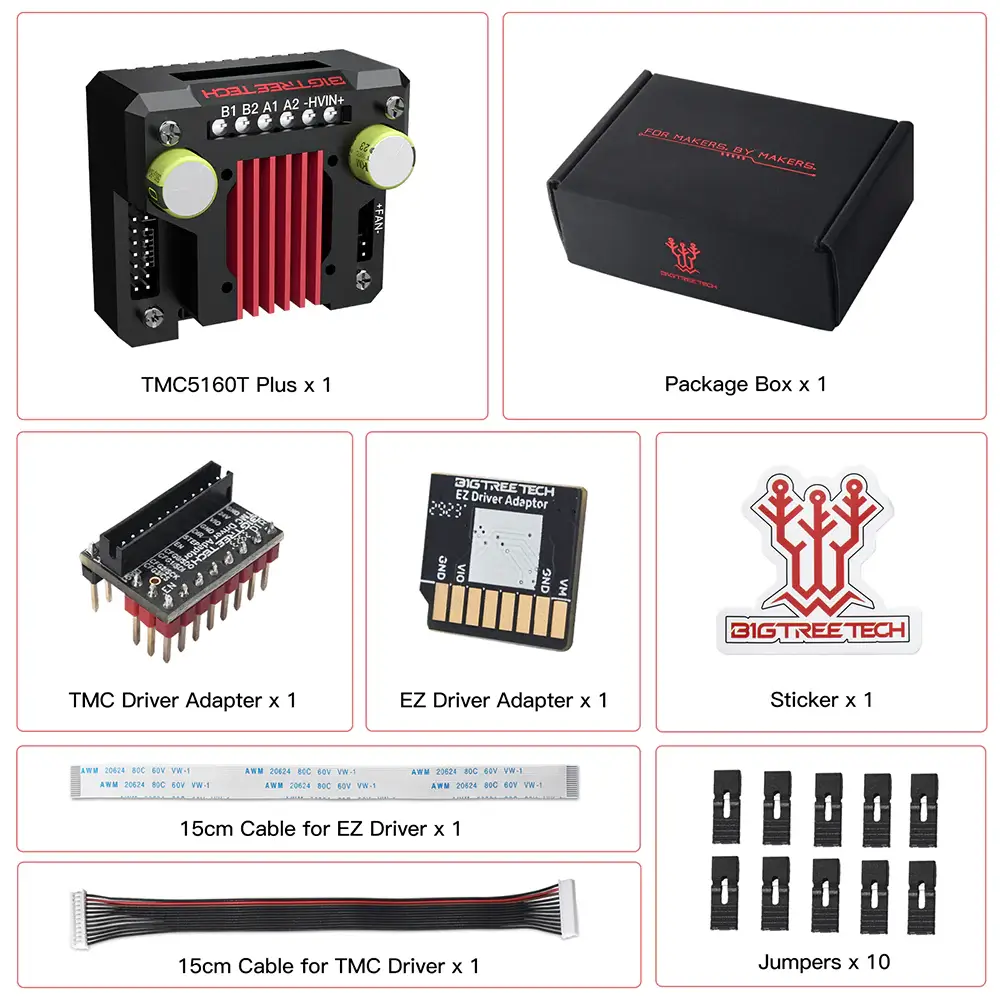

– Supplied with adapters and wires for both standard drives and EZ drive, for

user convenience;

– Heat sink pre-designed with fan mounting holes for DIY fan installation.



Specifications

– Dimensions TMC5160T Plus: 64 x 56 x 32.55mm

– TMC5160T Plus (W/o case): 58 x 50 x 28mm

– Drive Chip TMC5160-TA

– Input Voltage (HVIN) 8V-60V

– Maximum Effective Current 10.6A, Sine Wave Peak Current 15A

– Capacitor 2 x 560uF

– Maximum Subdivision 256

– Operating Mode SPI, SD

– Sampling Resistor 22mΩ



Safety Instructions

1. Turn off the power before installing the driver to prevent damage.

2. Do not plug or unplug the driver module with power on to avoid damage.

3. Be cautious of polarity when connecting; reversing can cause the driver to

burn out.

4. The factory-installed heat sink should not be removed, as doing so will

decrease heat dissipation in the absence of thermal interface material.

5. For large currents (greater than 3A), active cooling is required for normal

operation.

6. This product uses a 0.022R sampling resistor, so the maximum effective

driving current is 10.6A.

7. Pay attention to the power sequence; ensure the driver power is turned on

before the logic power. That is, turn on the driver power first, then power on

the motherboard.

8. Regardless of whether the driver uses high or low voltage power delivery,

the output voltage from the main control board to the drive must not

exceed 24V; exceeding this will damage the driver.
