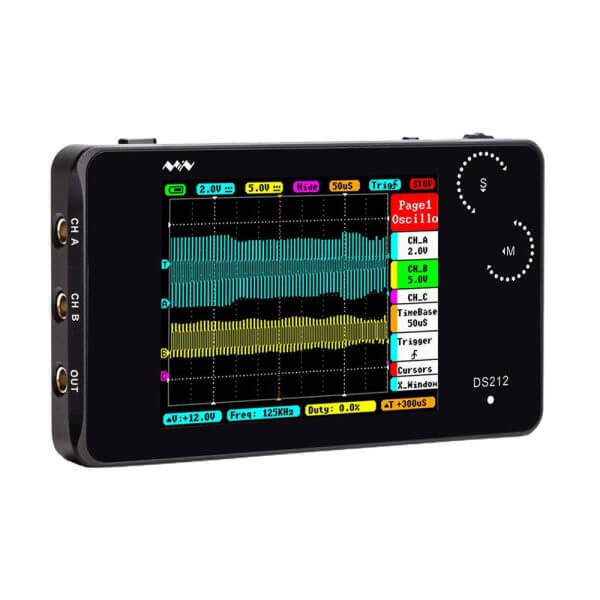

MINIWARE DS212 Mini Oscilloscope
zł 509.00 (zł 413.82 excl. VAT)
Na stanie
Opis
Information
Additional information
Importer
Reviews (0)
Functionalities:
Synchronous mode: Auto, Normal, Single, None, Scan
Rising/Falling edge trigger
Modes of vertical precise, horizontal precise measurement and triggering threshold
Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg
Inbuilt signal generator/10Hz—1MHz square wave (duty adjustable) or 10Hz—20KHz
Sine/Square/Triangle/Sawtooth wave

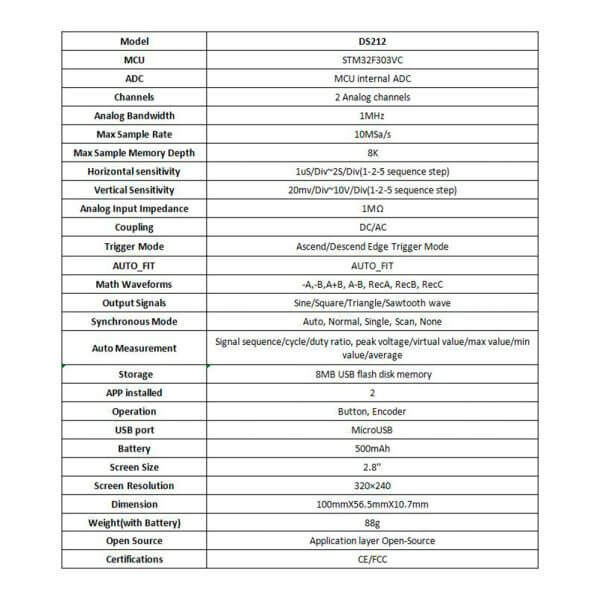

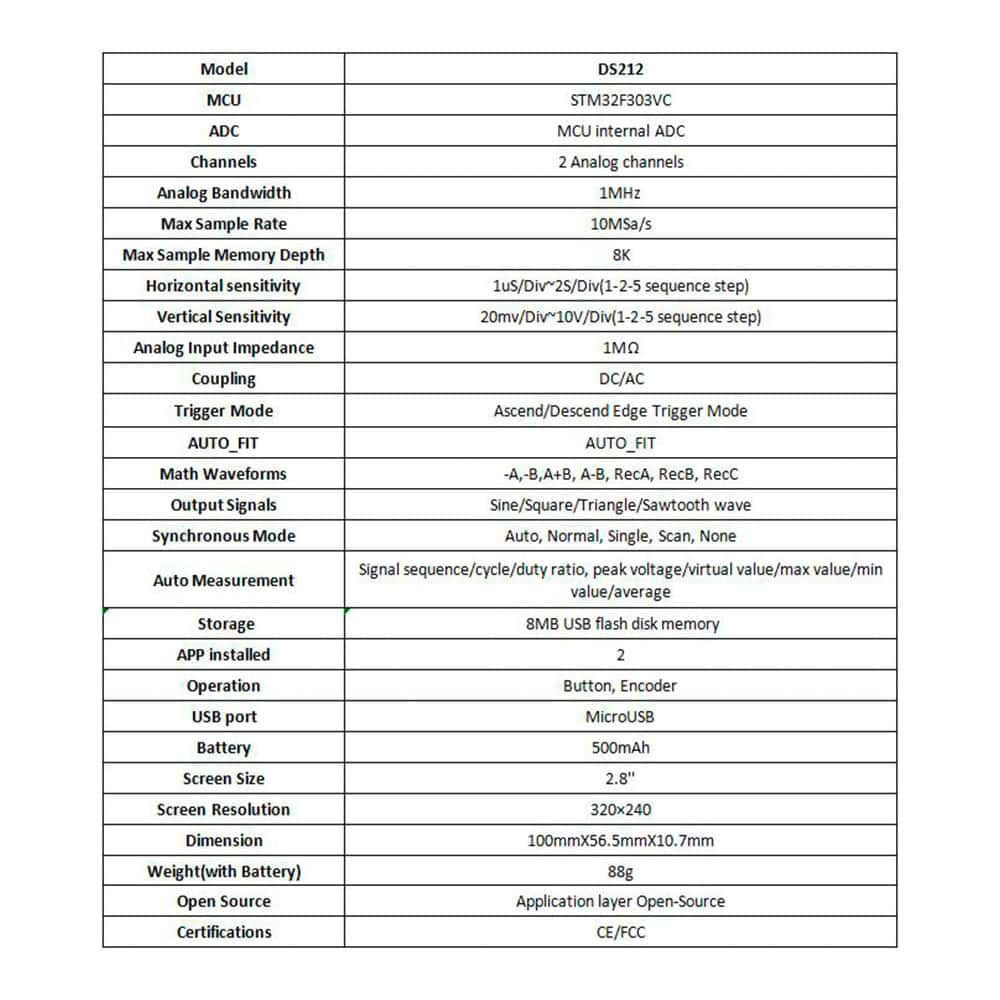

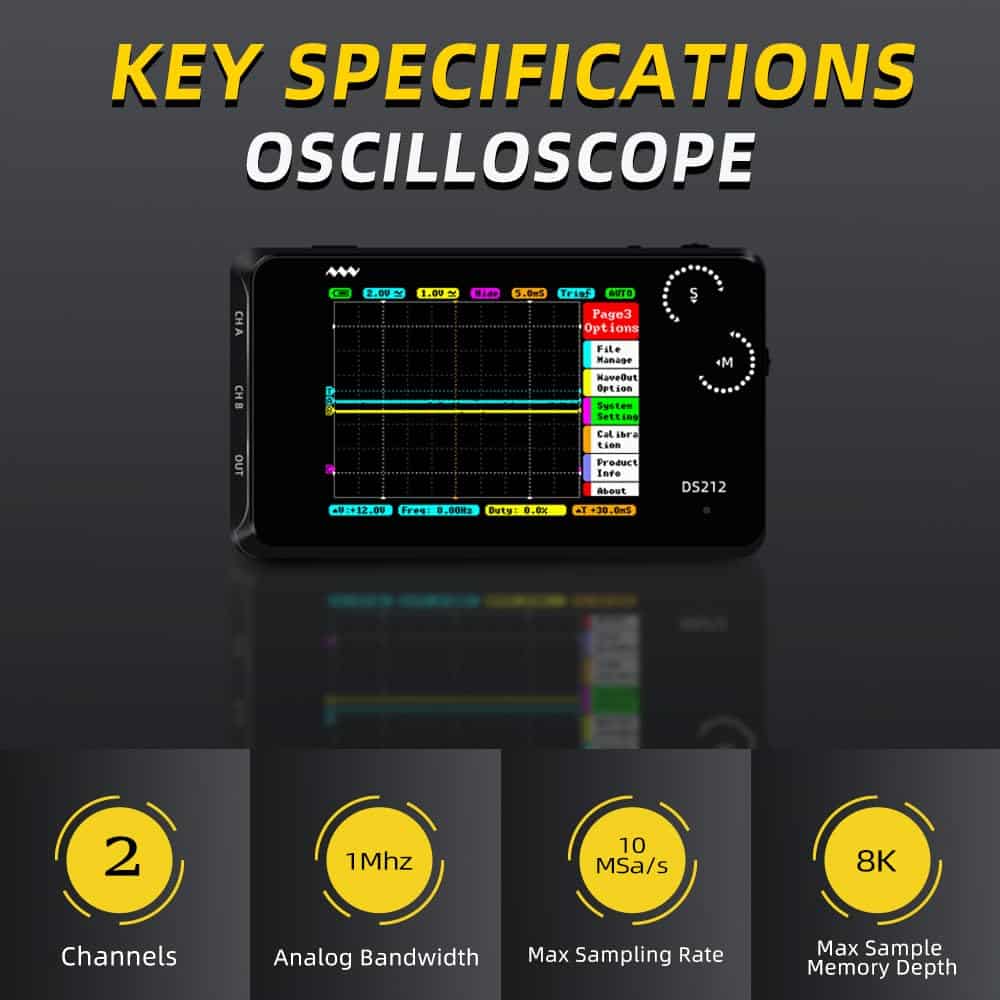

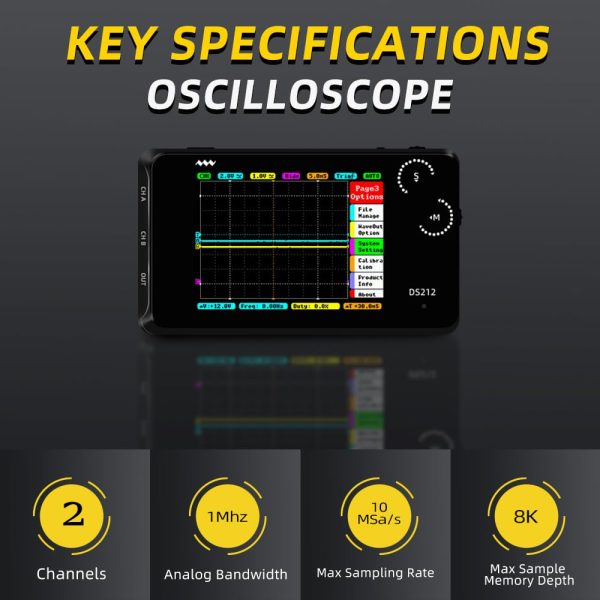

Specifications:
Max sample rate：10Msa/s
Analog bandwidth：1MHz
Max sample memory depth：8K
Analog input impedance：1MΩ
Max input voltage：±40V(X1)
Coupling：AC/DC
Vertical sensitivity：20mv/Div~10V/Div (1-2-5)
Horizontal sensitivity：1uS/Div~2S/Div（1-2-5）
Product parameter:
Inbuilt 8MB U disk storage for waveform data and images
Internal 550mAh Lithium battery, Recharging through Micro USB port
2.8″ Full Color TFT LCD Display(320X240 pixels)

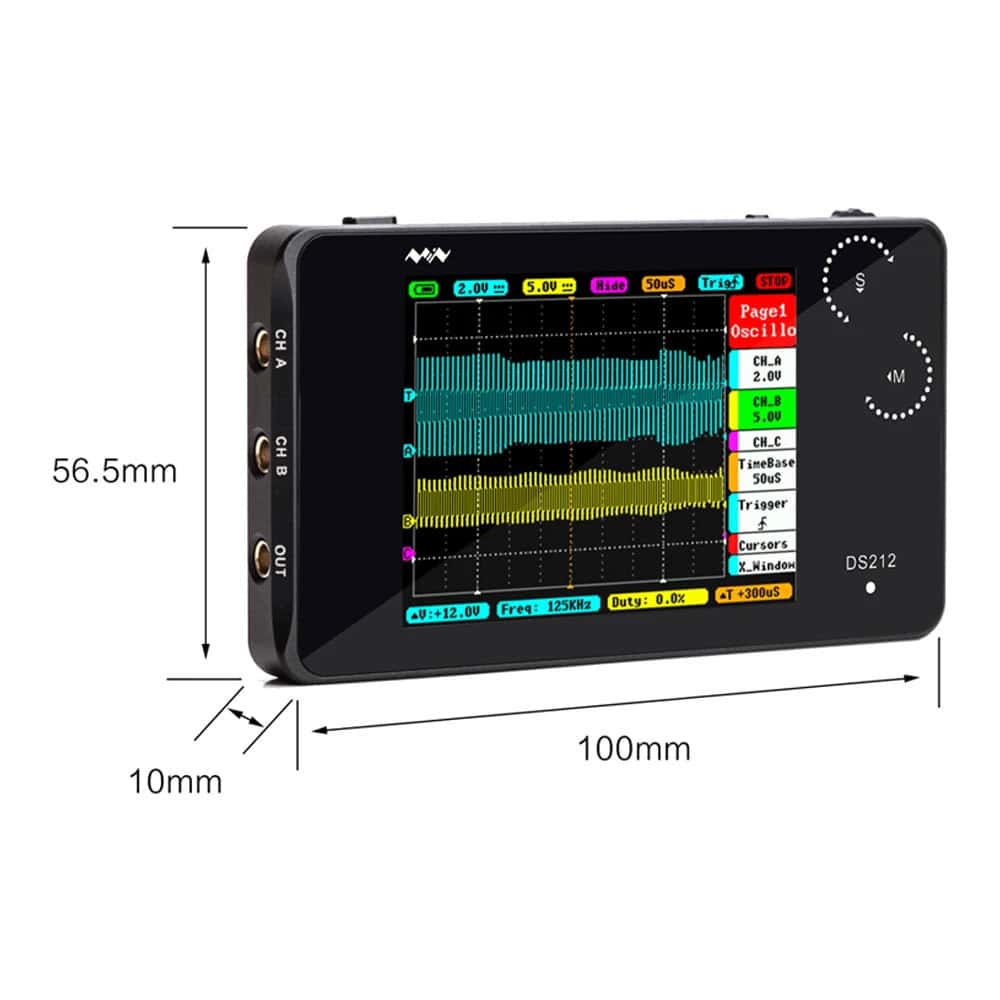

Dimension (100mm X 56.5mm X 10.7mm)
