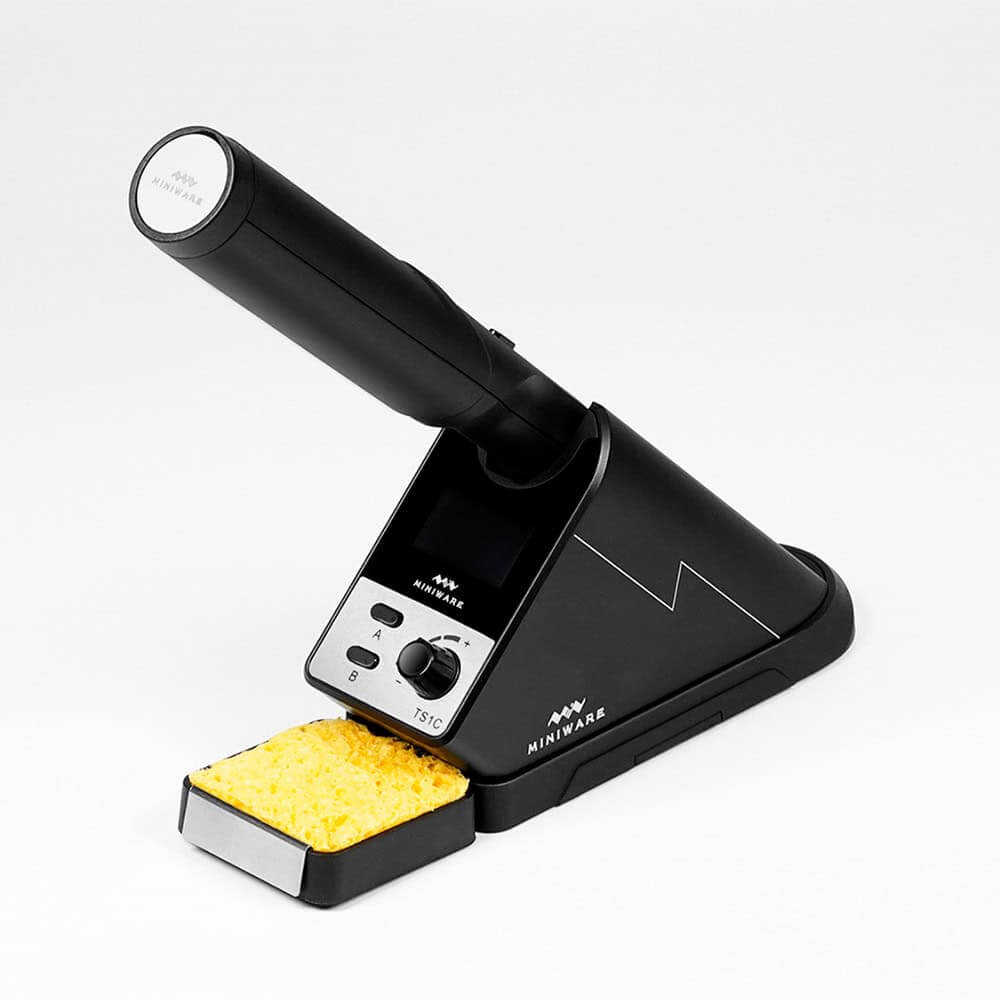

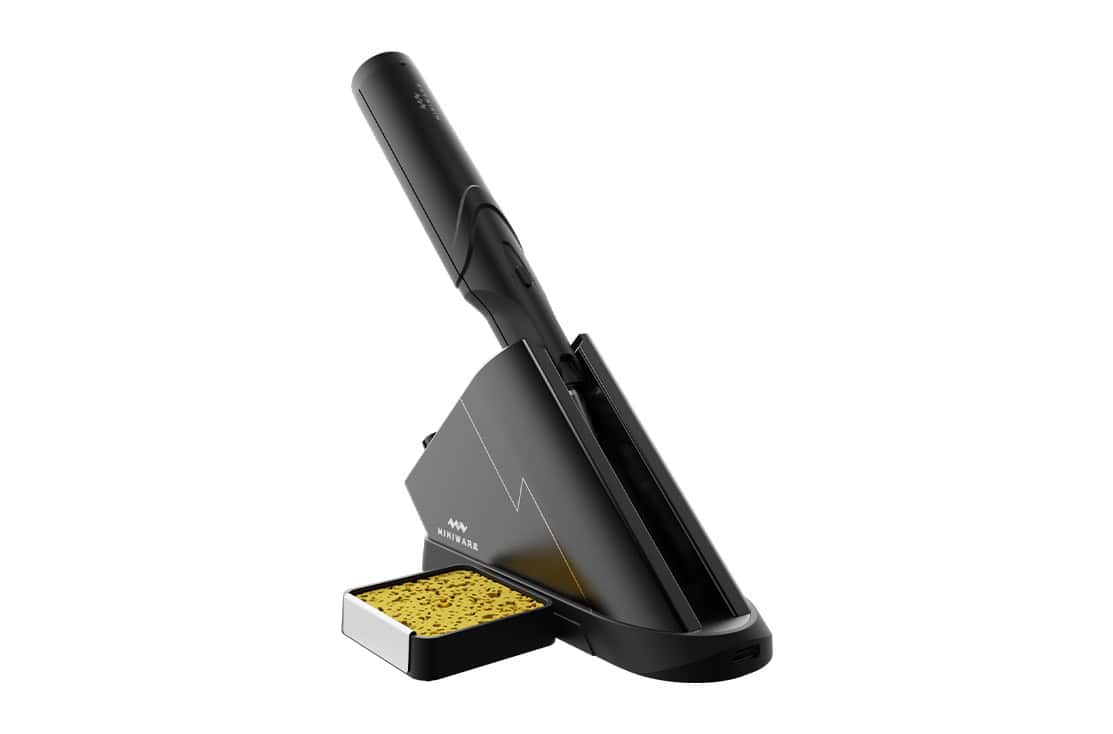

MINIWARE TS1C Cordless Soldering Station

The TS1C is the first new energy storage intelligent desktop soldering tool based on  Bluetooth communication.

Control Station:

• Standard PD2 20V 45W MAX power input, over current safety protection；
• 128*64 pixel OLED screen, display soldering pen status in real time;
• Control station preheating, improve heating efficiency;
• Remote control and setting: temperature regulating, menu setting, viewing device info and status, etc.;
• Work as soldering stand and charging station;
• 3 expansion slots for multiple expandable accessories like sponge slot;

Soldering Pen:

• Built-in 750F high-efficiency energy storage supercapacitor, can be charged via control station (or via its USB Type-C interface in emergency cases)；
• 36W maximum heating power, can solder more than 180 solder joints (0805) continuously under a single full charge;
• Compatible with MINIWARE 3.5mm audio interface soldering tips (TS80/80P soldering tip series);
• Boost mode (holding the button on the pen);
• Multiple intelligent safety protections: over-temperature protection, capacitor under-voltage protection, charging protection, etc.
