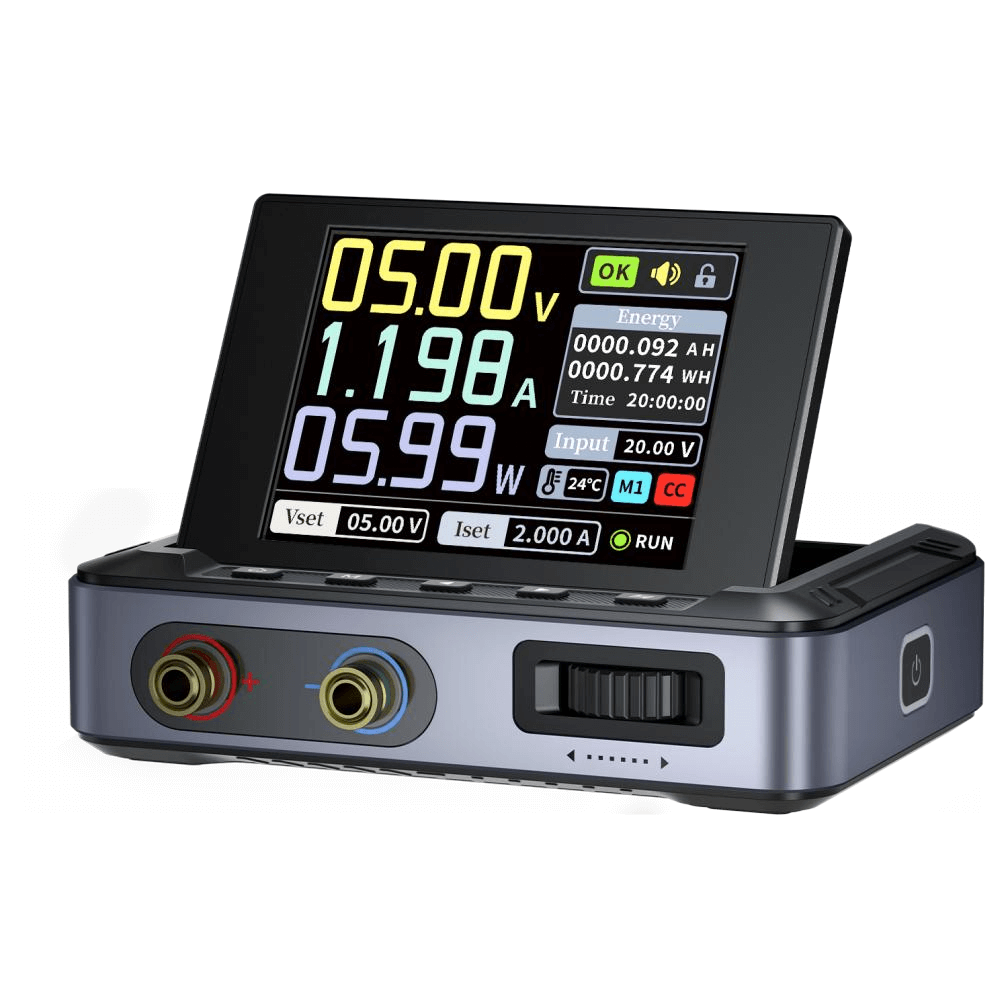

FNIRSI DPS150 Programmable DC Power Supply

FNIRSI DPS-150 is a high-performance adjustable DC power supply tailored for precision electronics work, testing, and development. With its compact design and versatile features, this power supply is perfect for various applications requiring stable and reliable power sources.

Key Features:

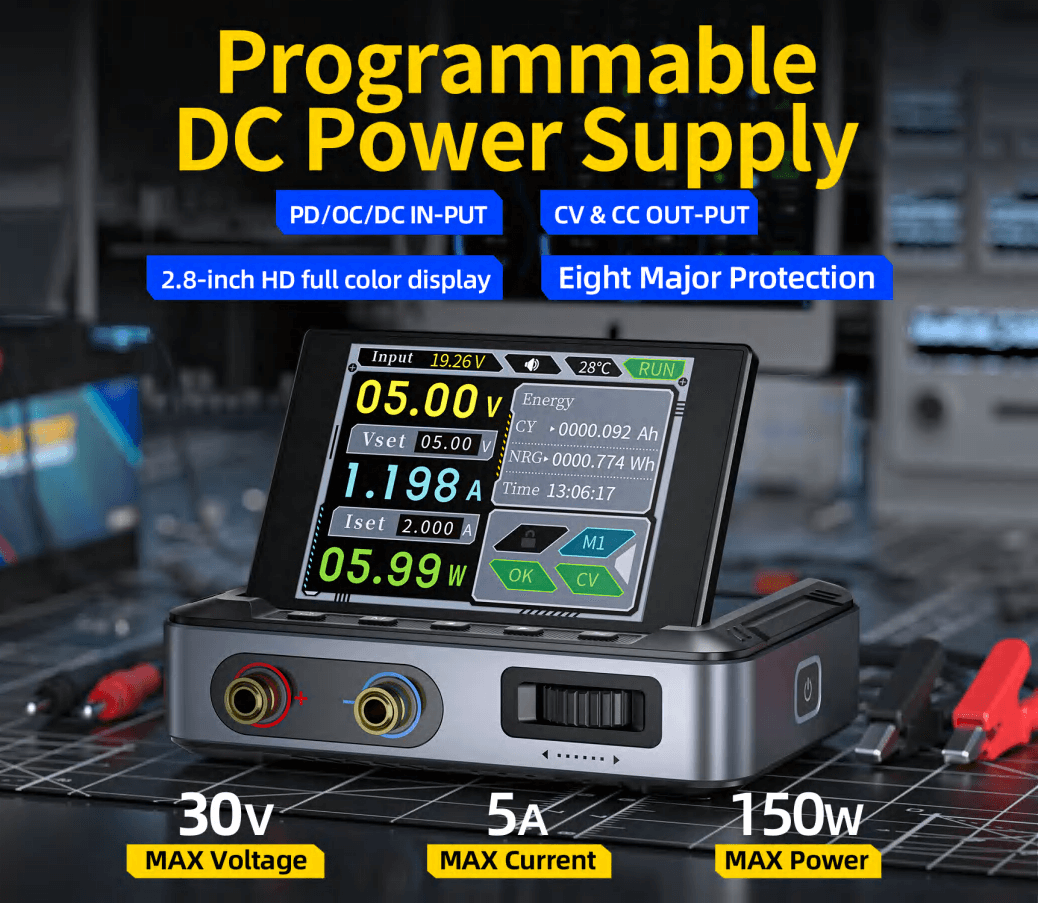

• Adjustable Output: Offers a wide output voltage range of 0-30V and a current range of 0-5A, allowing precise adjustment for diverse applications.
• Multiple Input Options: Compatible with DC power adapters, PD fast chargers, QC fast chargers, and power banks, providing flexibility in powering the unit.
• Intelligent Display: The 2.8-inch high-definition screen (320×240 resolution) provides clear readouts of voltage, current, and power settings.
• High Efficiency: Achieves an impressive full load efficiency of 96.30%, ensuring minimal energy loss during operation.

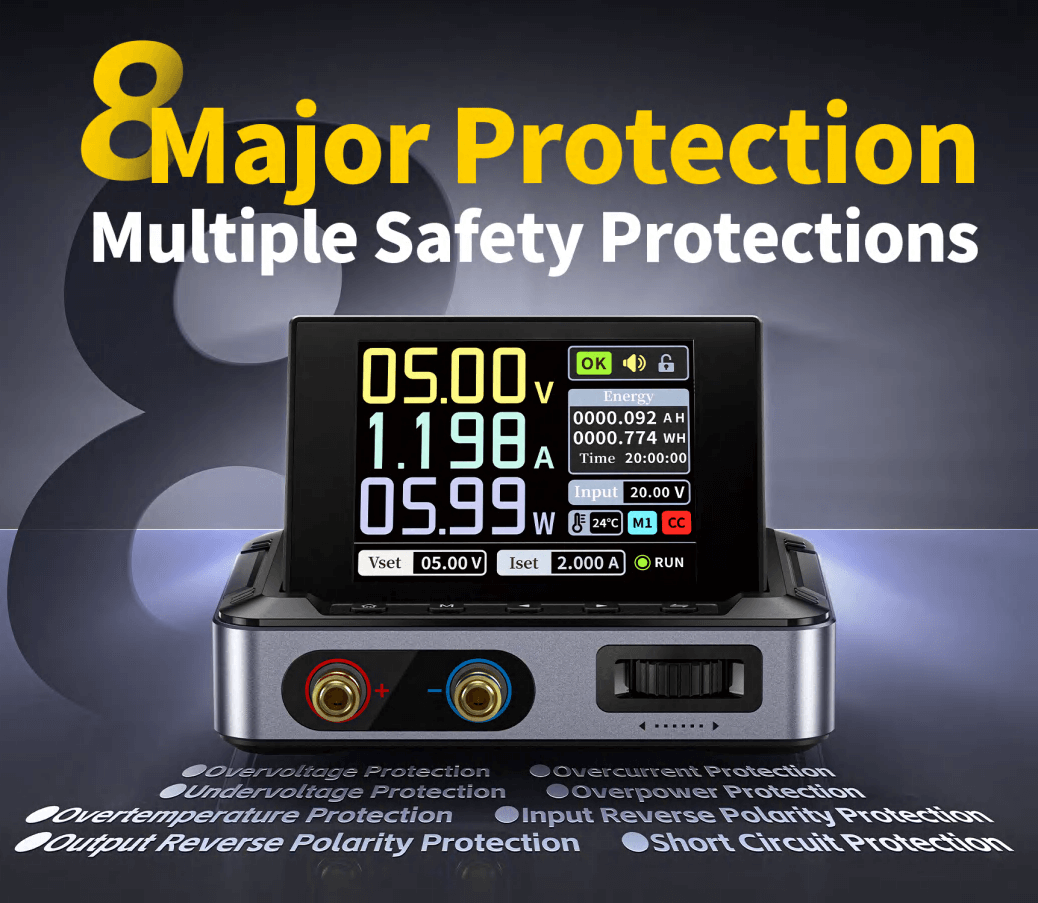

• Safety Protections: Equipped with multiple safety features, including overvoltage, overcurrent, overload, overheating, and reverse connection protection, ensuring safe operation.

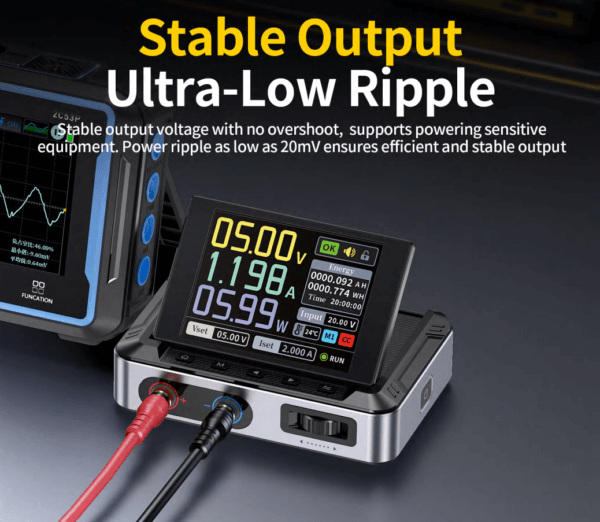

• Load Regulation: Maintains load regulation at a low 0.49%, ensuring stable output under varying load conditions.
• Compact and Portable: Weighing only 178g and with dimensions of 106x76x28mm, it is easy to transport and suitable for lab or field use.

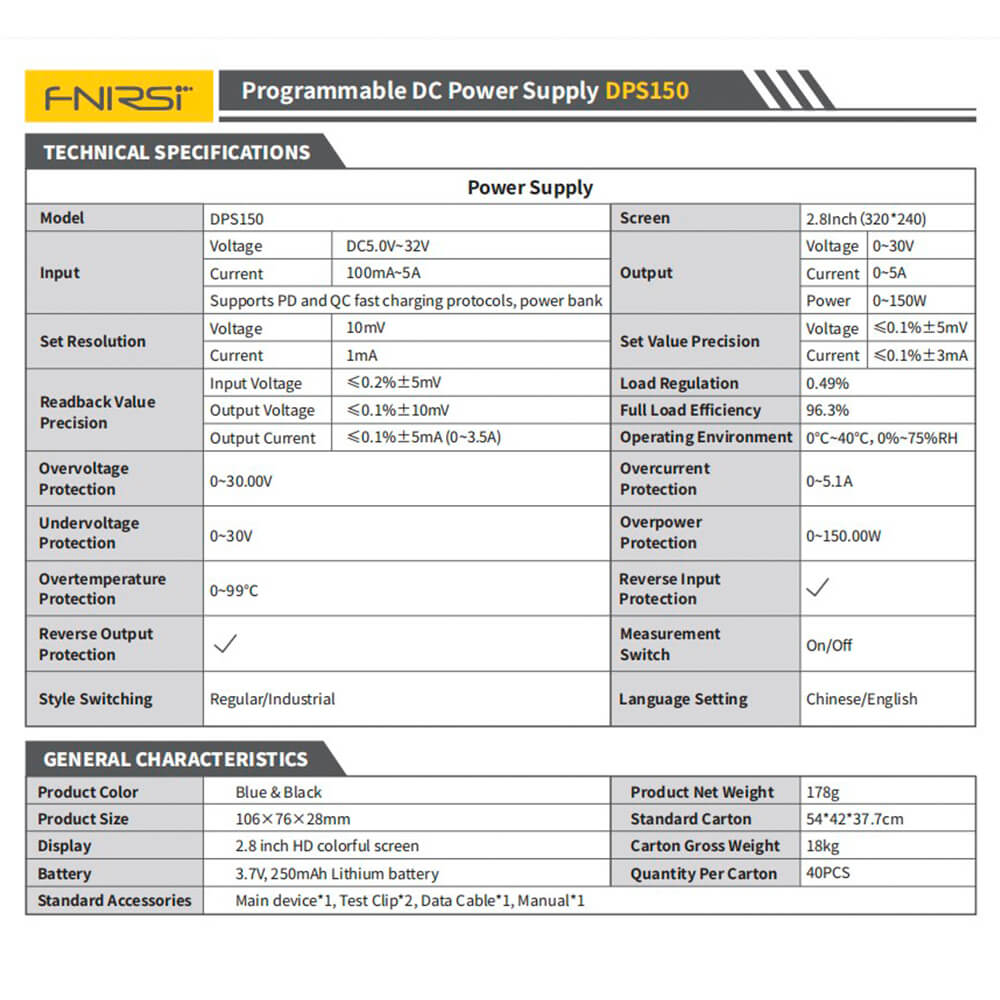

Specifications:

• Input Voltage: DC 5.0V~32V
• Input Current: 100mA-5A
• Output Power: Up to 150W
• Operating Environment: 0℃ to 40℃
• User-Friendly Interface: Designed for intuitive operation, meeting the needs of both beginners and experienced users.

Package Contents:

Standard Version:

• 1 * FNIRSI DPS-150 Host
• 2 * Alligator Clip Wire (Black&Red)
• 1 * USB Data Cable
• 1 * User Manual
• 1 * Packing Box

Optional Version:

• 1 * FNIRSI DPS-150 Host
• 2 * Alligator Clip Wire (Black&Red)
• 1 * USB Data Cable
• 1 * C2C PD Charging Cable
• 1 * 100W PD GaN Adapter
• 1 * User Manual
• 1 * Packing Box
