FNIRSI DSO-TC2 2-IN-1 Handheld Digital Oscilloscope Transistor Tester (End of Life)

FNIRSI DSO-TC2 is a versatile and compact handheld digital oscilloscope, perfect for both professional and hobbyist use. It combines the functionality of an oscilloscope and a transistor tester in one device.

Key features:

• Real-time Sampling Rate: 2.5MS/s
• Bandwidth: 200KHz
• Voltage Measurement Range:
  • X1: ±40V (Vpp: 80V)
  • X10: ±400V (Vpp: 800V)
• Trigger Modes: Rising edge, falling edge, adjustable trigger level with indication
• Display: 2.4-inch TFT color screen with a resolution of 320×240 pixels and LED backlight
• Battery: Built-in 1500mAh rechargeable lithium battery, providing extended usage time
• PWM Output: 5V, with a frequency range of 0-80kHz and a duty cycle adjustable from 0-100%
• Input Coupling: AC/DC
• Power Supply: 5V via USB Type-C interface
• Additional Features:
  • Automatic measurement of maximum, minimum, average, RMS, peak-to-peak, frequency, period, and duty cycle
  • Waveform freeze (HOLD function)
  • Transistor testing capabilities for NPN and PNP transistors, N-channel and P-channel field-effect transistors, diodes, and more
  • Hidden support frame for convenient use

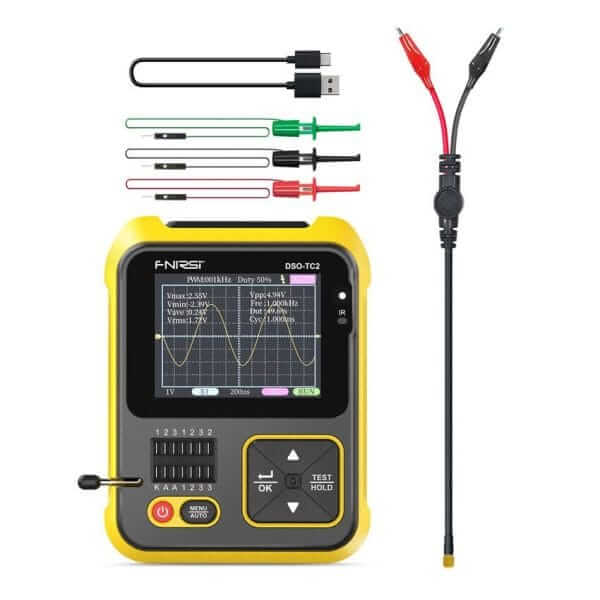

Packing List (Standard Version):

1 * Tester
1 * Type-C charging cable
3 * Test hook
1 * Ordinary probe

Packing List (Option)

1 * Tester
1 * Type-C charging cable
3 * Test hook
1 * Ordinary probe
1 * Adapter
1 * P6100 High Voltage Probe
