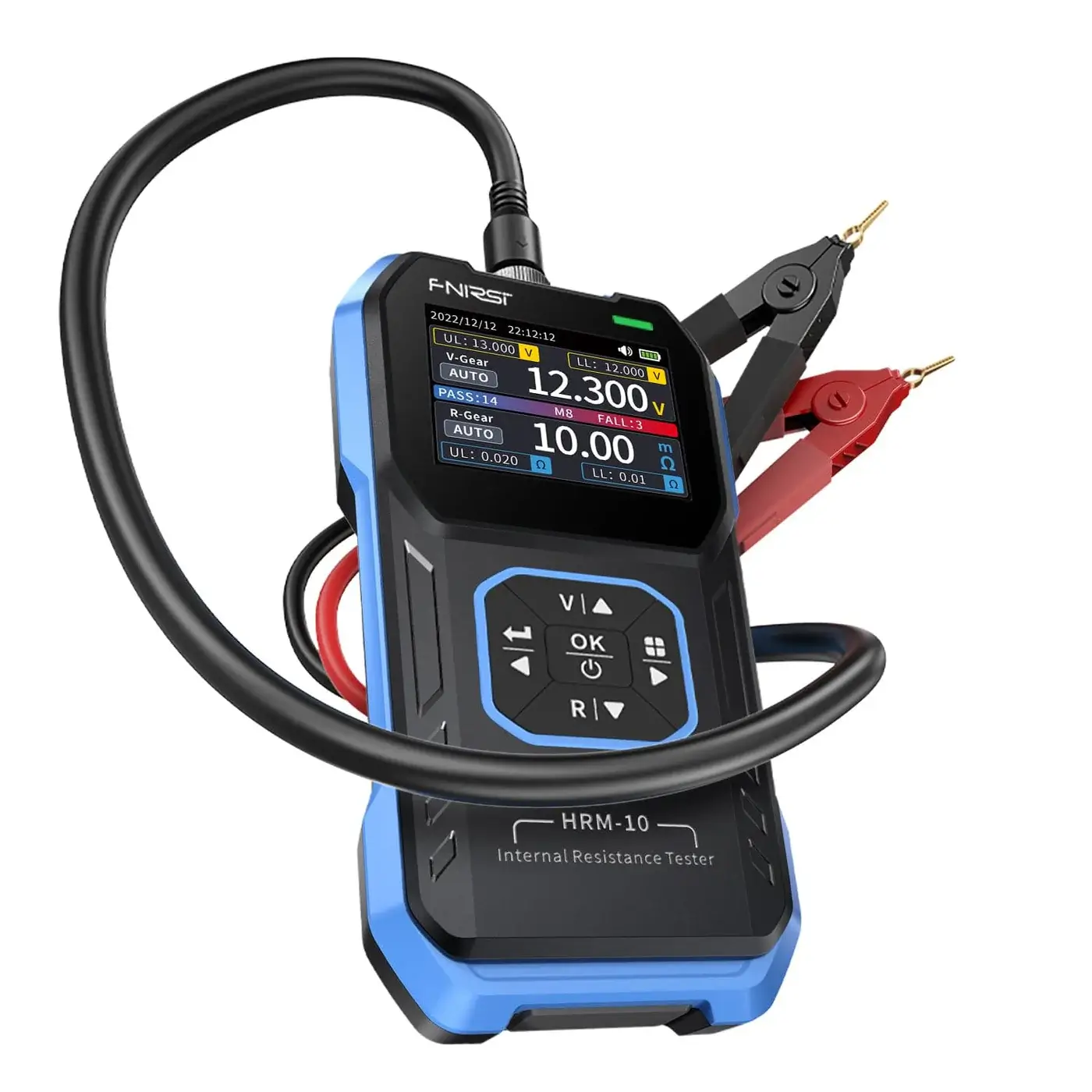

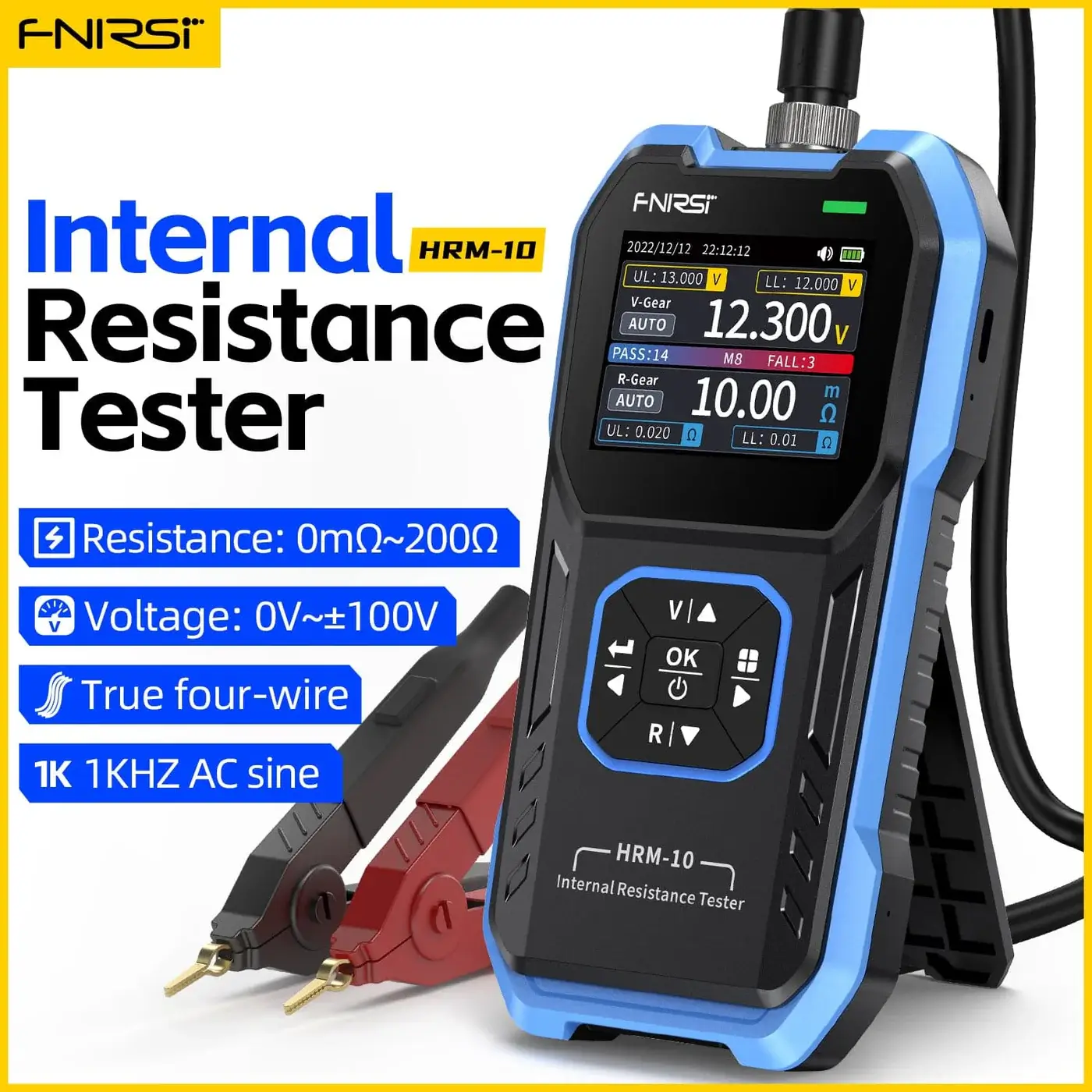

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI HRM-10 is a handheld high-precision battery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, and convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, displaying measurement results on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

Basic Specifications:

– Device Name: FNIRSI “HRM-10”
– Type: Handheld high-precision battery internal resistance meter

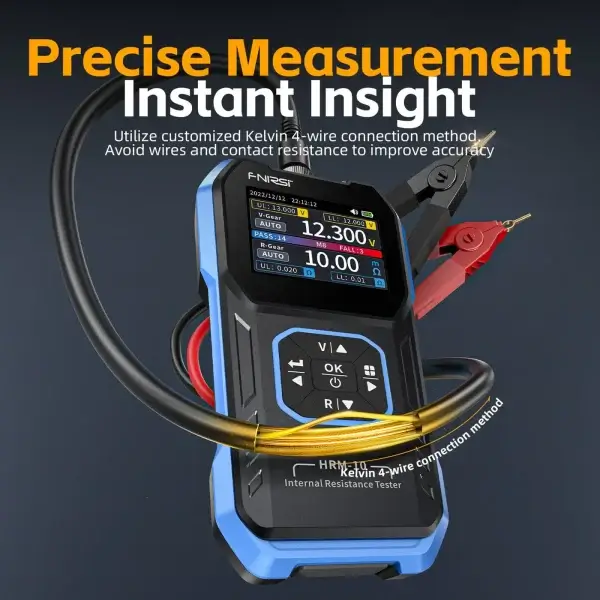

– Measurement Method: True four-wire measurement
– Measurement Ranges:
– Voltage: 0 — ±100V (DC)
– Resistance: 0 — 200Ω
– Accuracy: ±0.5%
– Instrument Test Signal Frequency: AC 1KHz
– Rechargeable: Type-C interface (5V/1A)
– Built-in Battery: 1000mAh lithium battery
– User Calibration: Supported

Display and Technology:

– Screen: HD Color Screen
– Measurement Results Display: On-screen display

Functionality and Features:

Measurement Modes
– Automatic Testing of Internal Resistance and Voltage
– Manual Adjustment of Voltage and Resistance Range

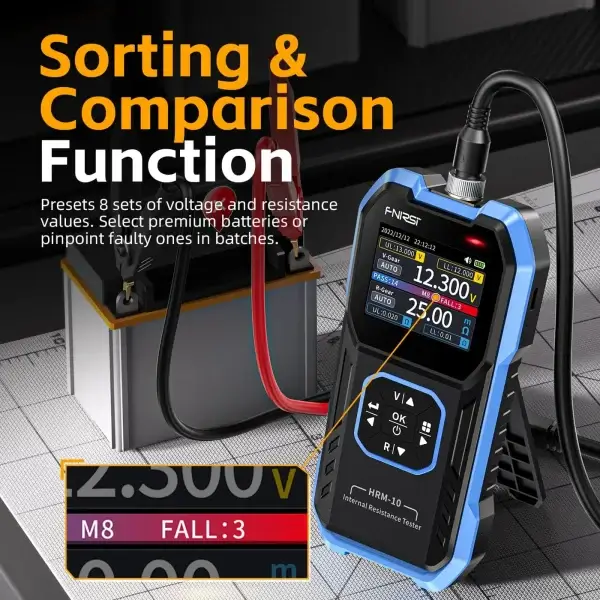

Sorting Mode
– Automatically filters good and bad batteries based on user-set thresholds

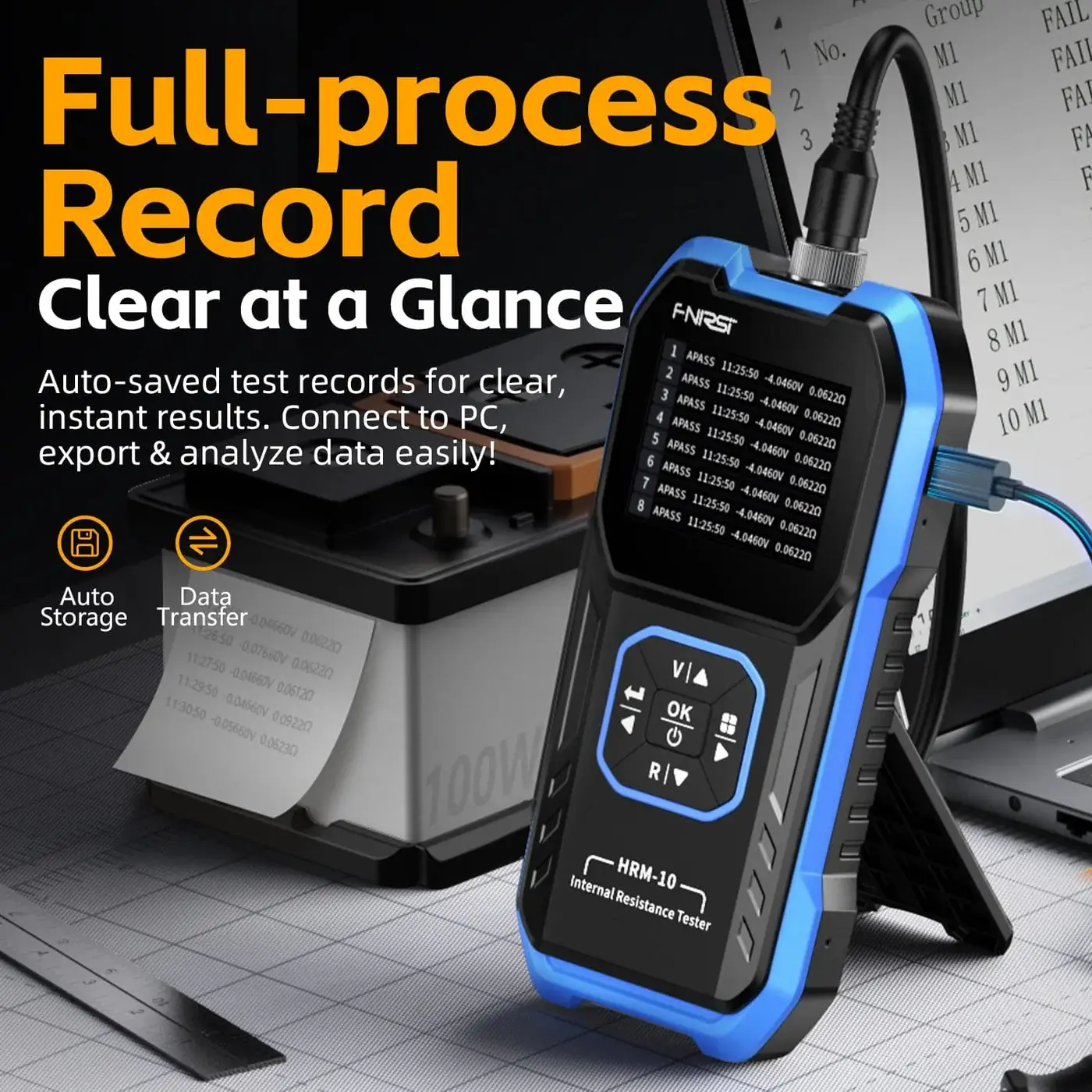

Historical Records
– Supports historical records and exporting data tables of historical measurements

Connectivity and Power:

– Connectivity: Type-C Interface
– Power Input: 5V/1A

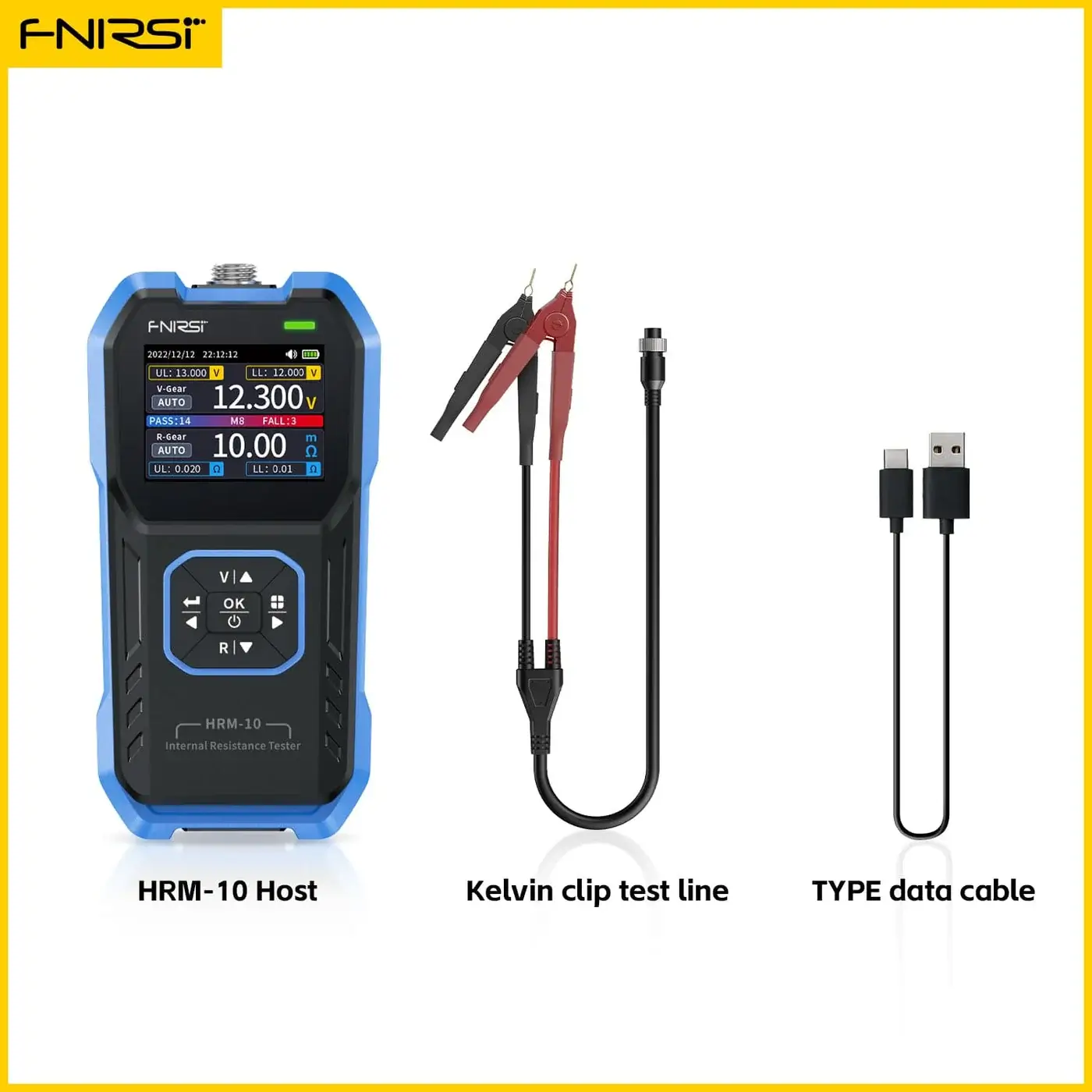

Package Contents:

HRM-10 Host * 1
Clip Test Line * 1
Type-C Data Cable * 1
User Manual * 1
Packaging Box * 1

Package Size:

– Size: 158.7×80.5×28.4mm
– Weight: 225g
