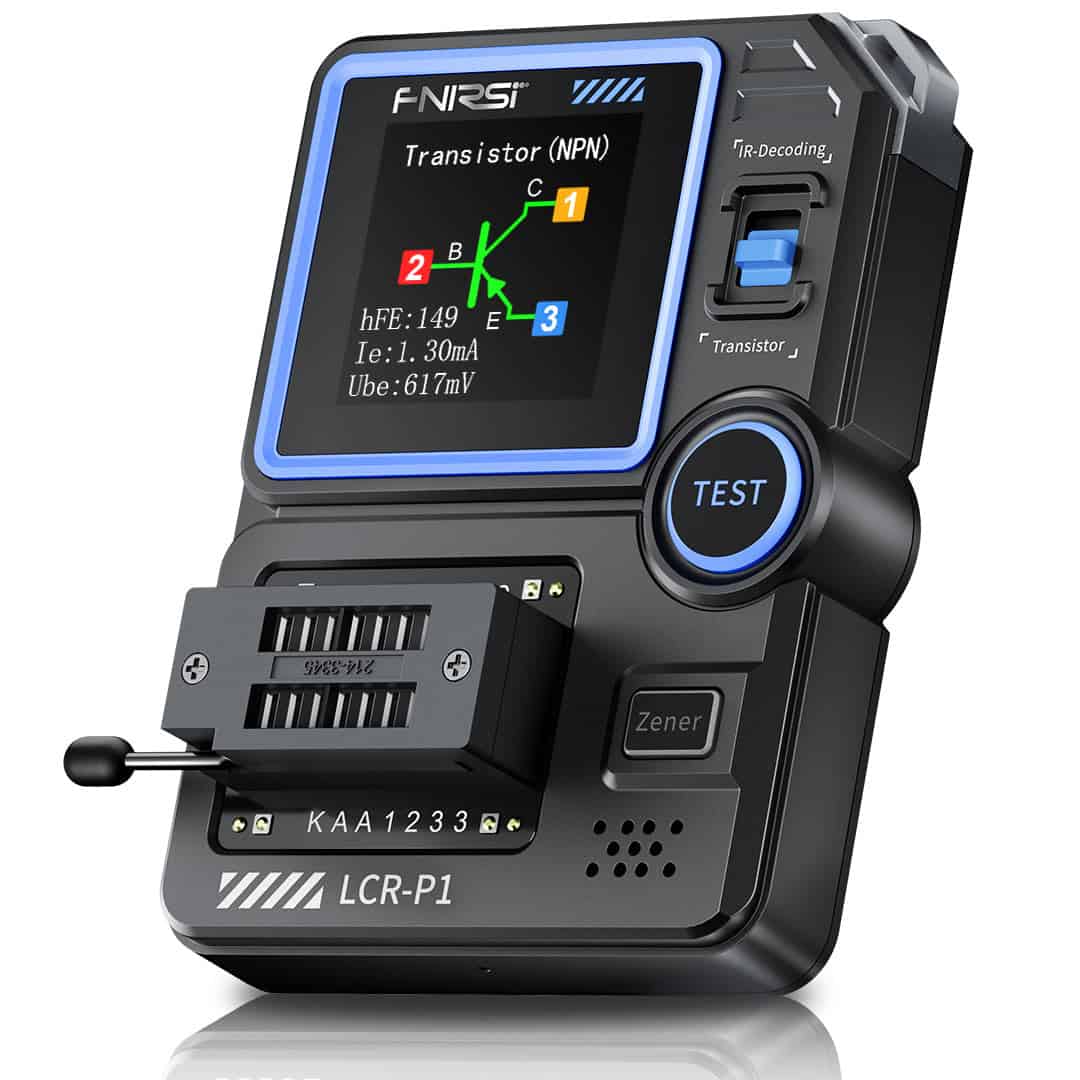

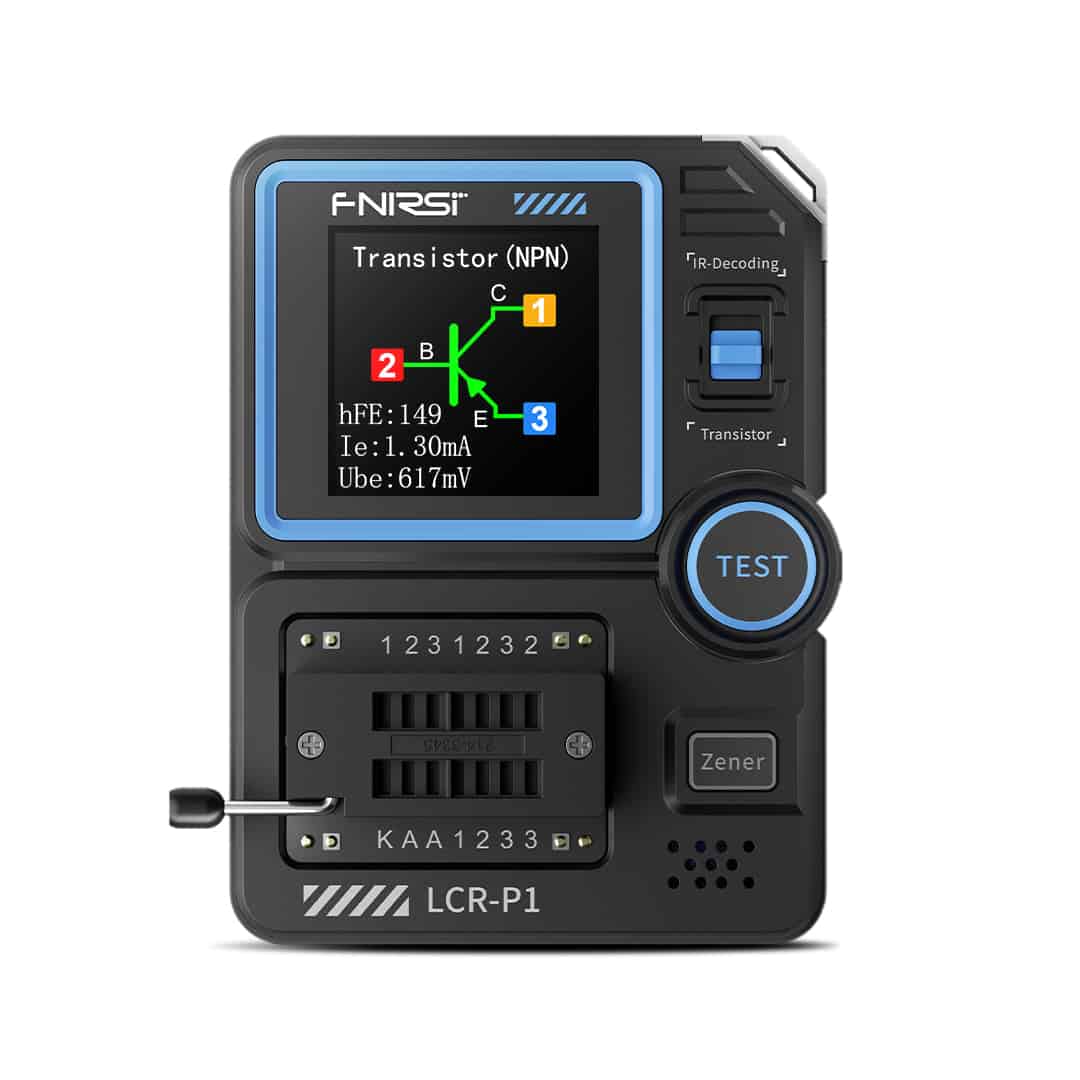

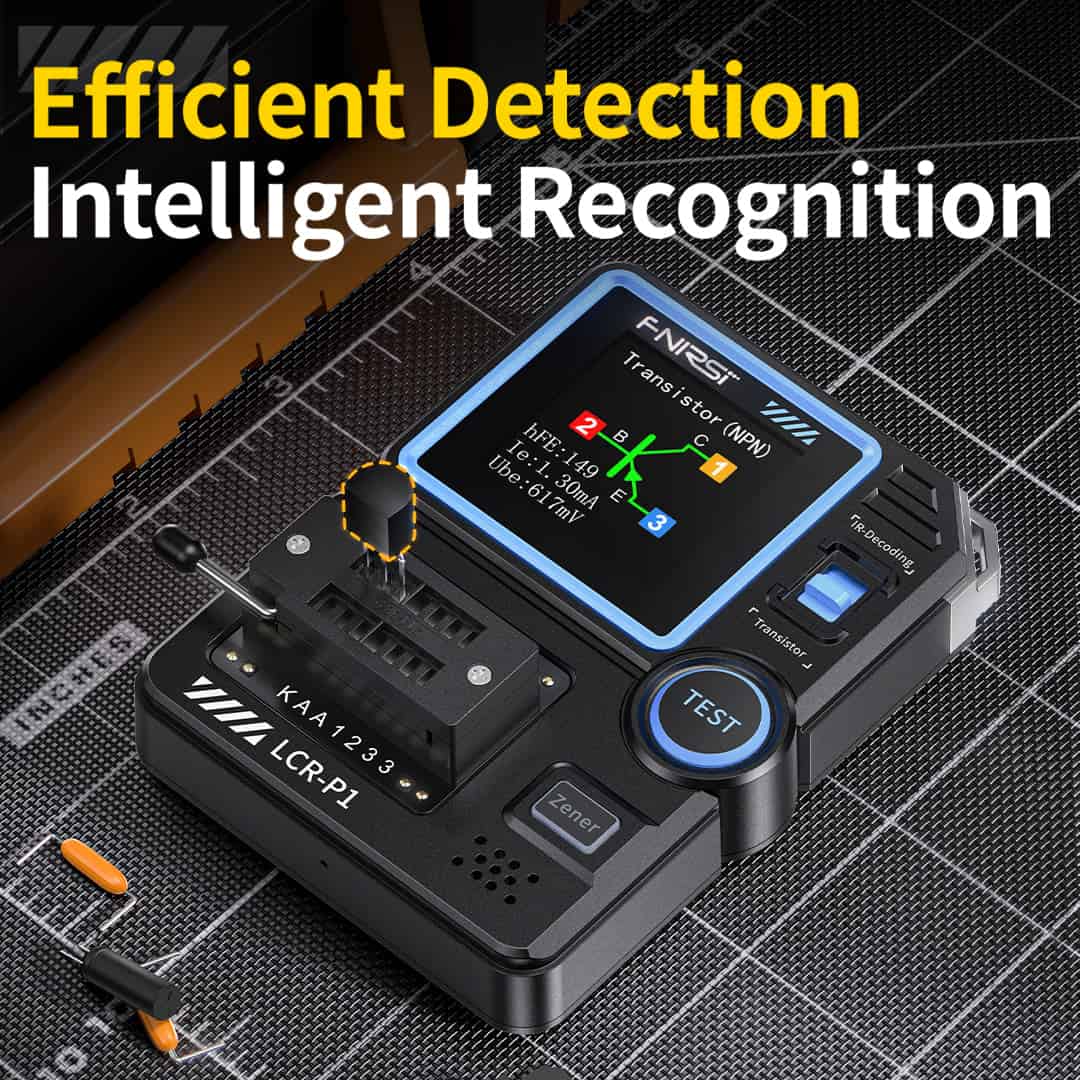

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-P1 is a versatile, portable, and compact multifunction tester designed to measure a wide range of components including transistors, capacitors, resistors, inductors, and more. It features a 1.44-inch color display for clear readings, and multiple measurement functions, making it an ideal tool for electronic testing, repair, and development.

Key Features:

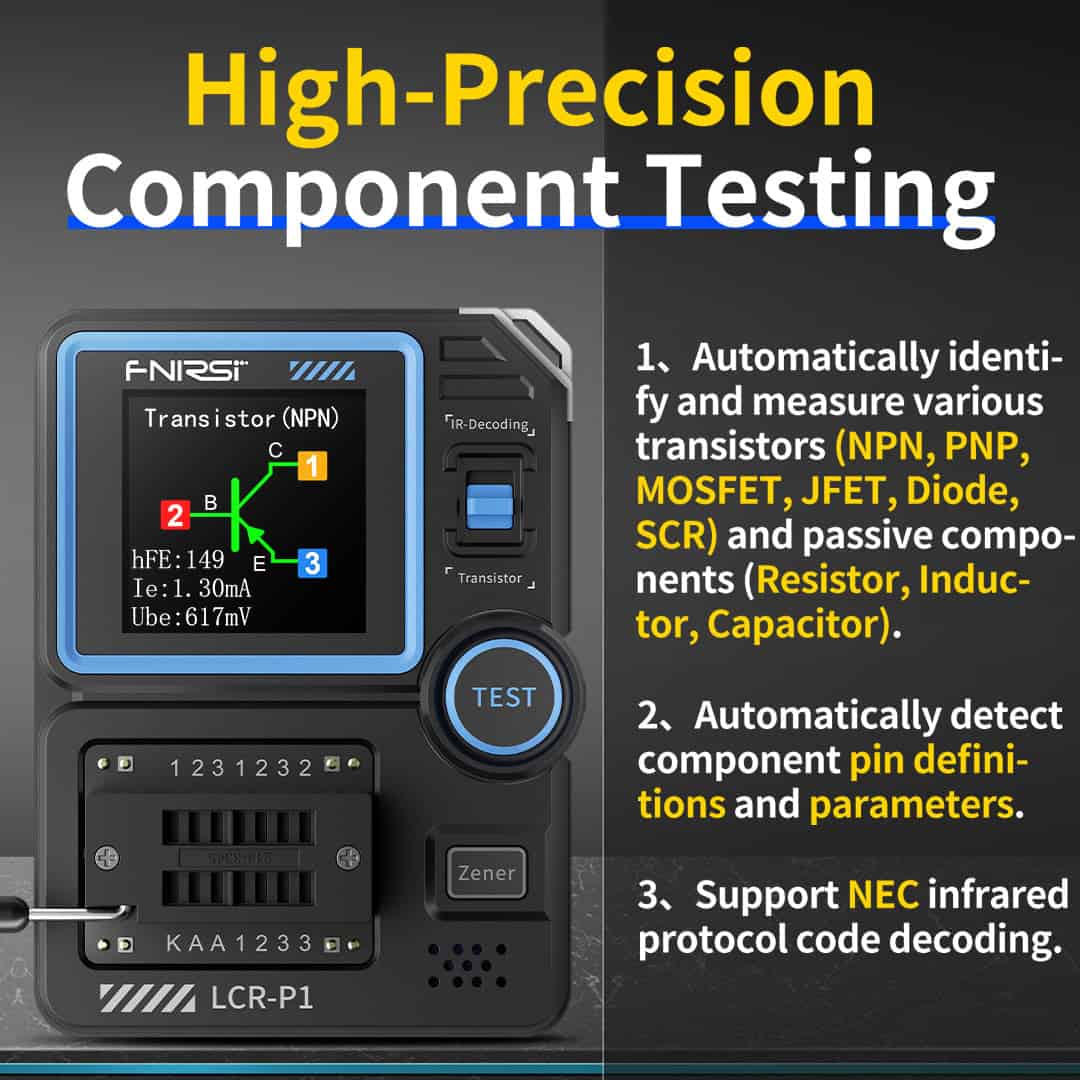

1. Component Testing: Supports transistors, capacitors, resistors, inductors, diodes, and field-effect transistors (FET).
2. Wide Range of Measurements:
   • Capacitance: 25pF-100mF
   • Inductance: 10μH-1000μH
   • Resistance: 0.01Ω-50MΩ
   • Transistor Range: 10 < B < 600
   • Diode forward voltage: < 4.5V

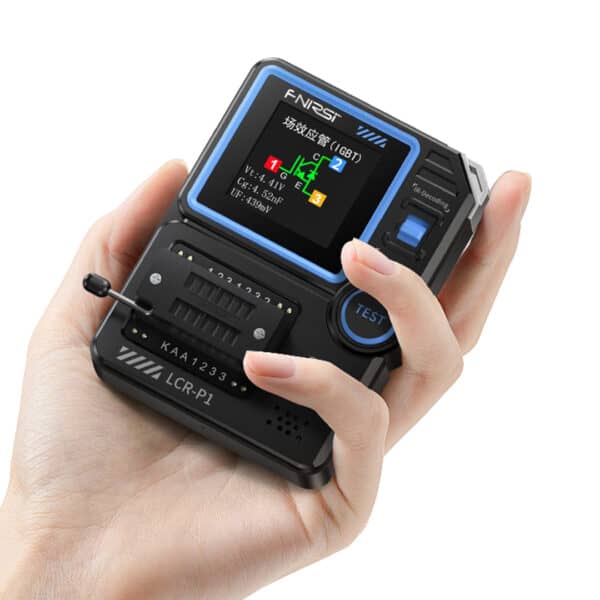

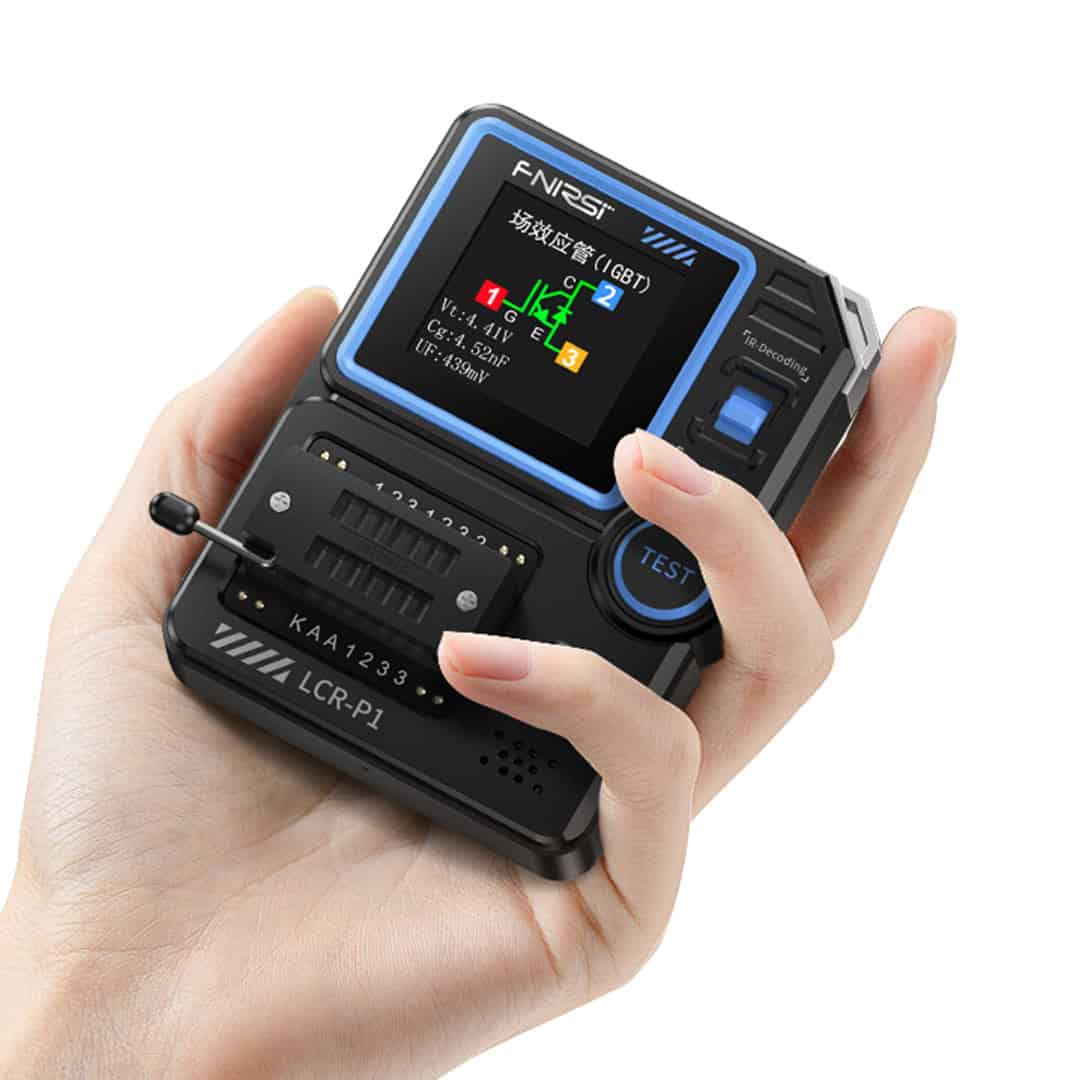

3. Field-Effect Transistor Testing: JFET, IGBT, and MOSFET supported.
4. Bidirectional Thyristor Testing: Turn-on voltage < 5V, gate trigger current < 6mA.
5. Voltage Regulator Diode Testing: Supports 0.01-32V.
6. Infrared Decoding: NEC protocol IR code reading supported.

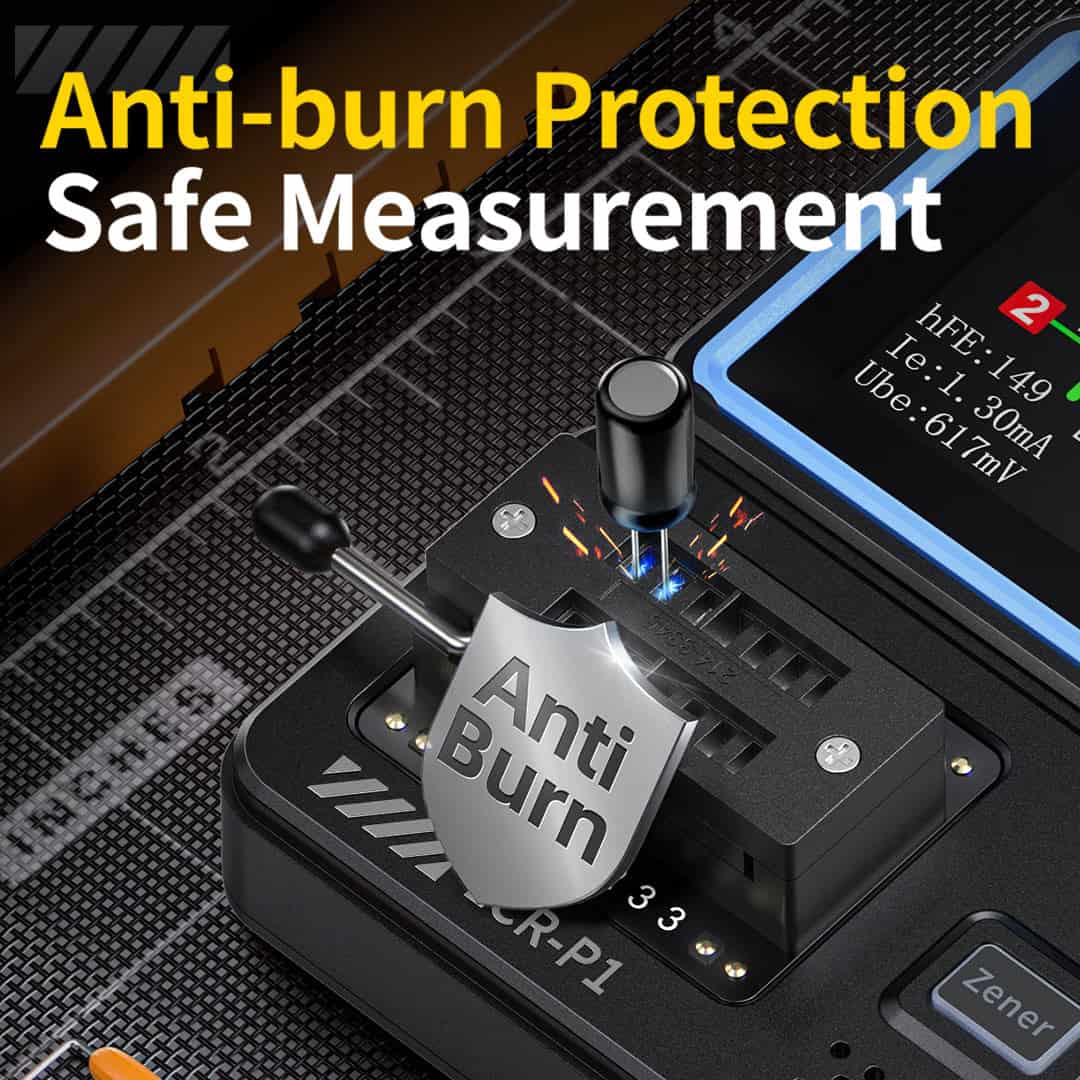

7. Anti-Burn Protection: Safeguards the tester during high voltage or incorrect connections.
8. Data Export & Firmware Upgrade: Via USB Type-C connection.
9. Battery: Powered by a 300mAh lithium battery, rechargeable via USB Type-C (5V/1A).
10. Display: 1.44″ TFT color screen with clear readings for multiple parameters.
11. Operating Temperature: Works in environments with temperatures between 0~40°C.

Specifications:

• Dimensions: 13 x 8.5 x 4.5 mm
• Display Type: Digital only
• Power Supply: Rechargeable lithium battery (300mAh)
• Charging Interface: USB Type-C (5V/1A)
• Measurement Accuracy: High precision with a wide range for each component.
• Protection: Anti-burn protection for safety during operation.
• Firmware: Supports upgrade for future improvements.

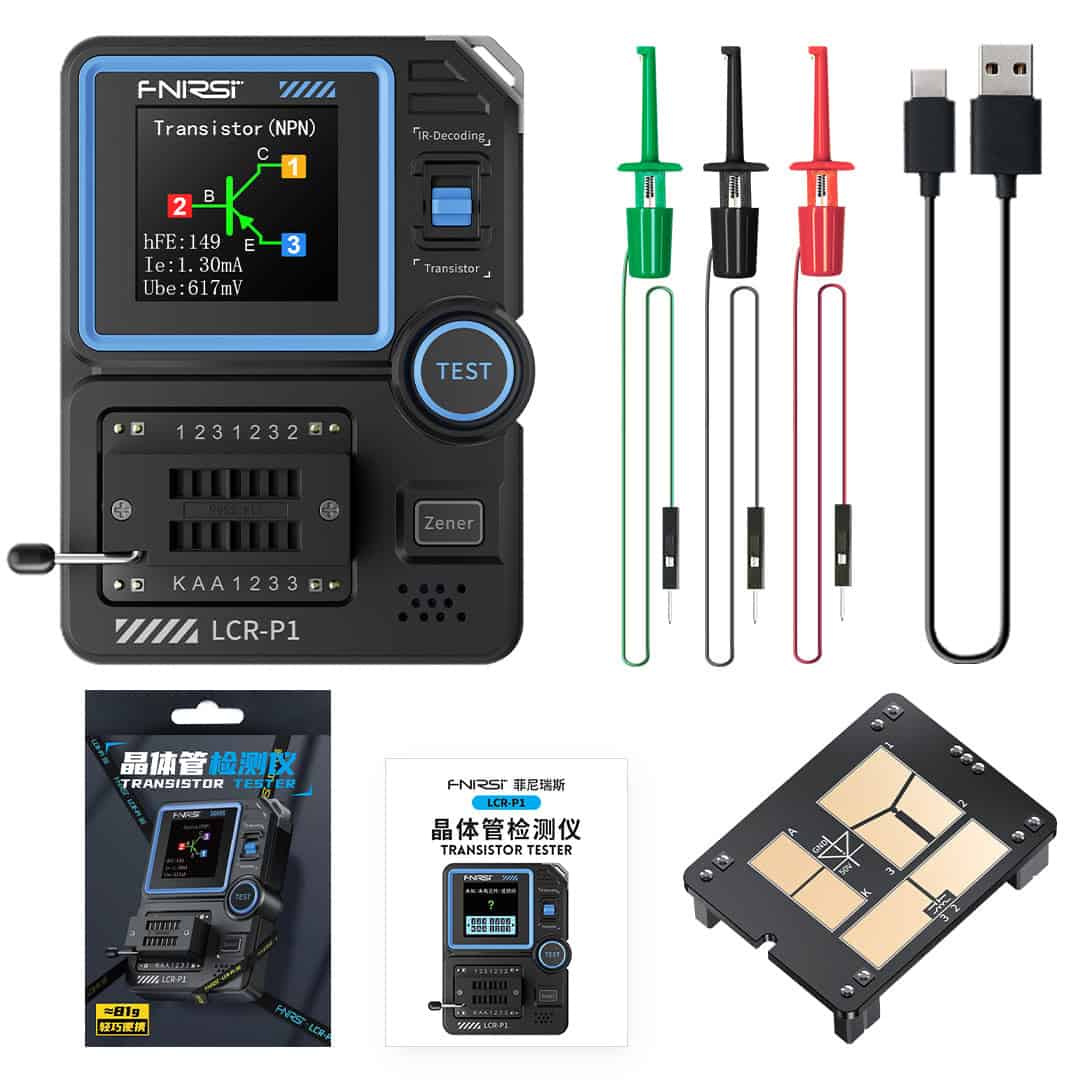

Package Contents:

1 * LCR-P1 host

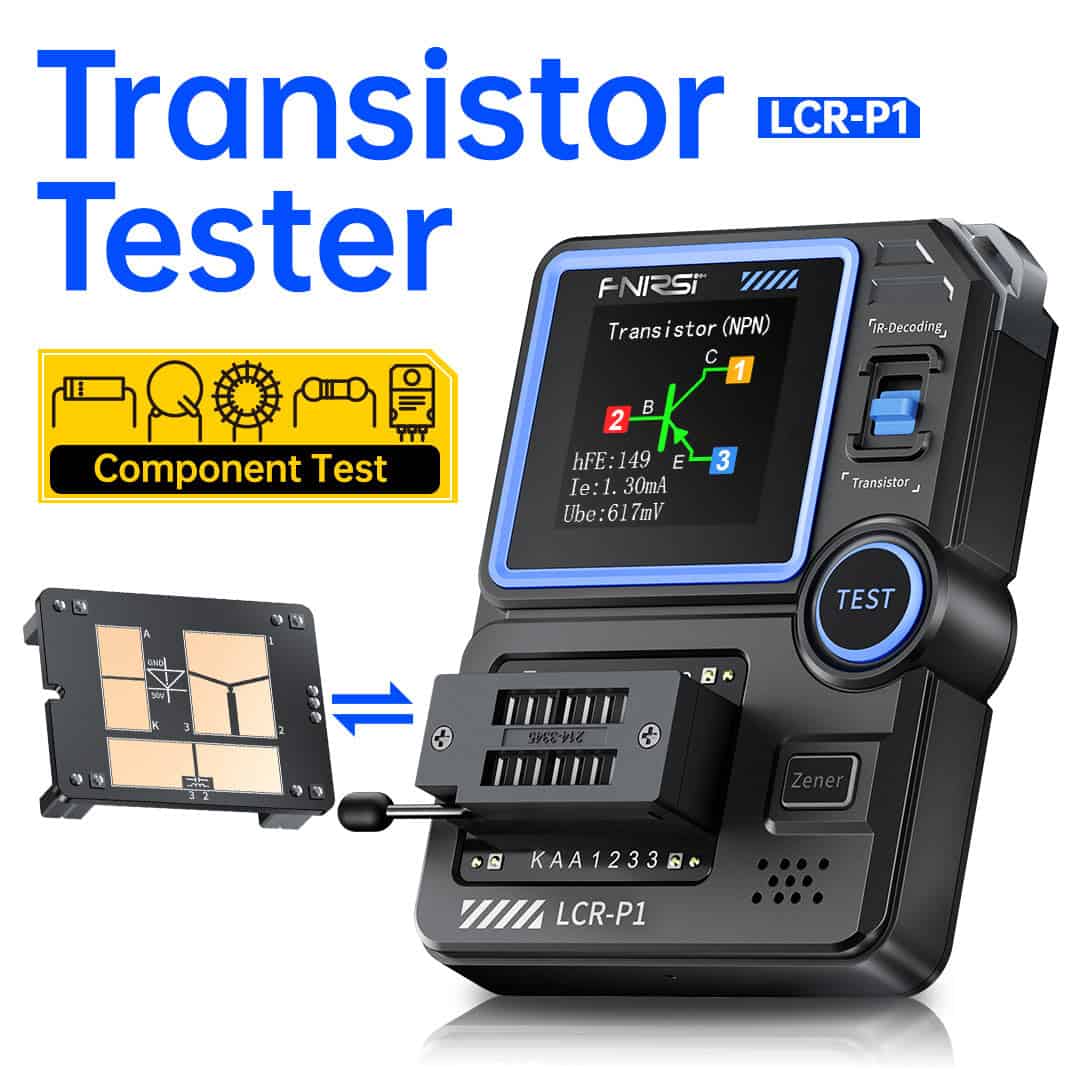

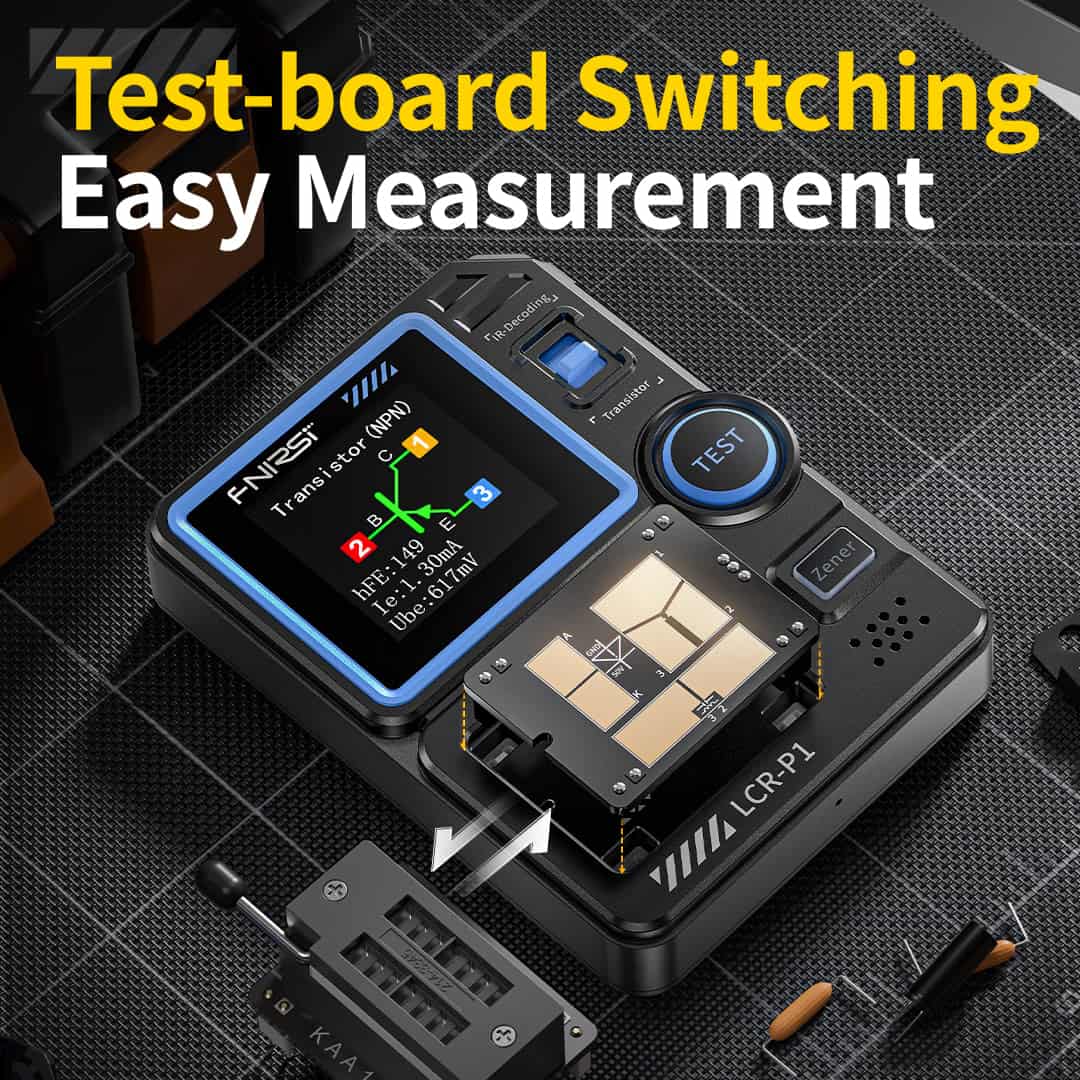

1 * Replaceable test board

1 * Test hook (3 pieces)

1 * USB data cable

1 * User manual

1 * Packing box
