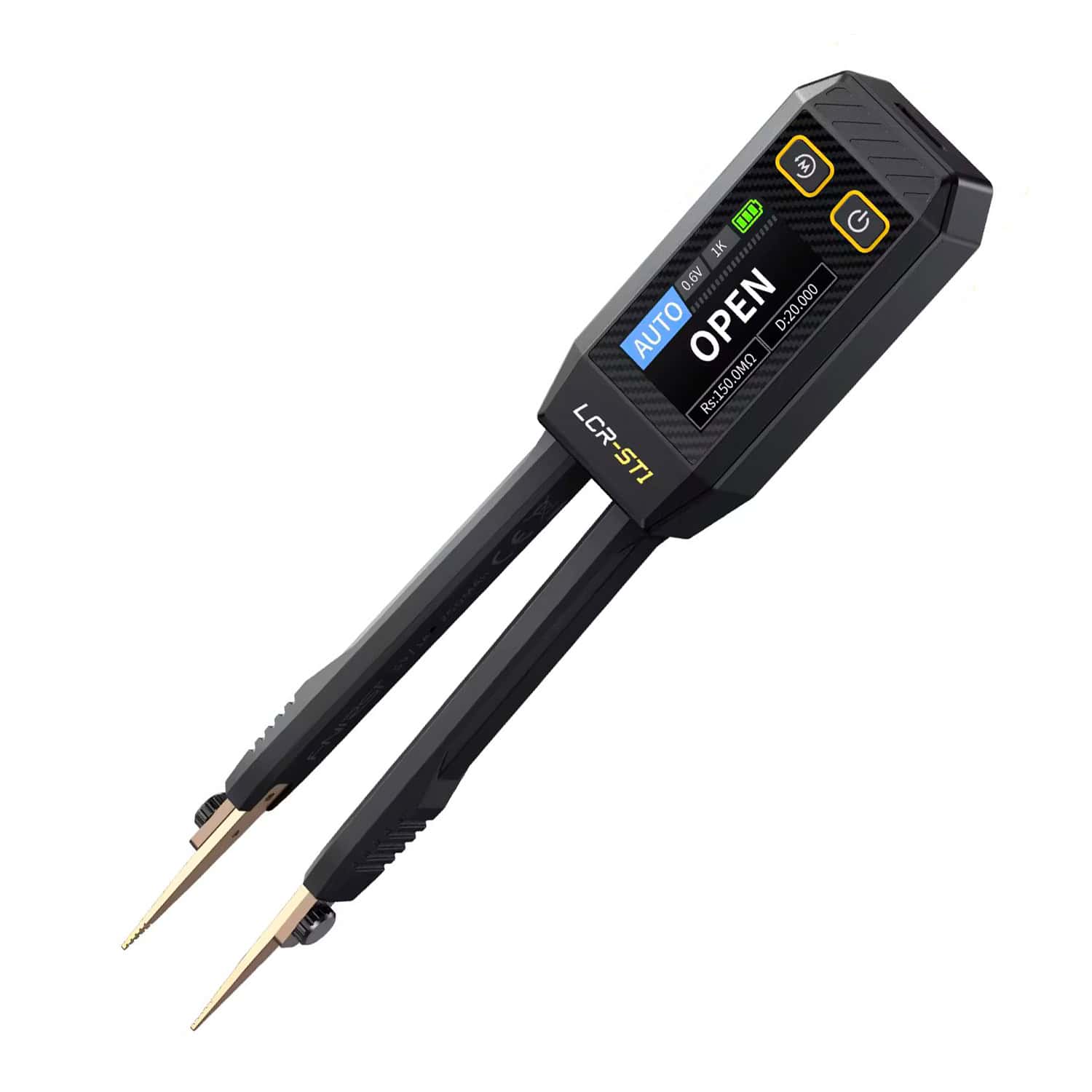

FNIRSI LCR-ST1 Mini Smart Tweezer

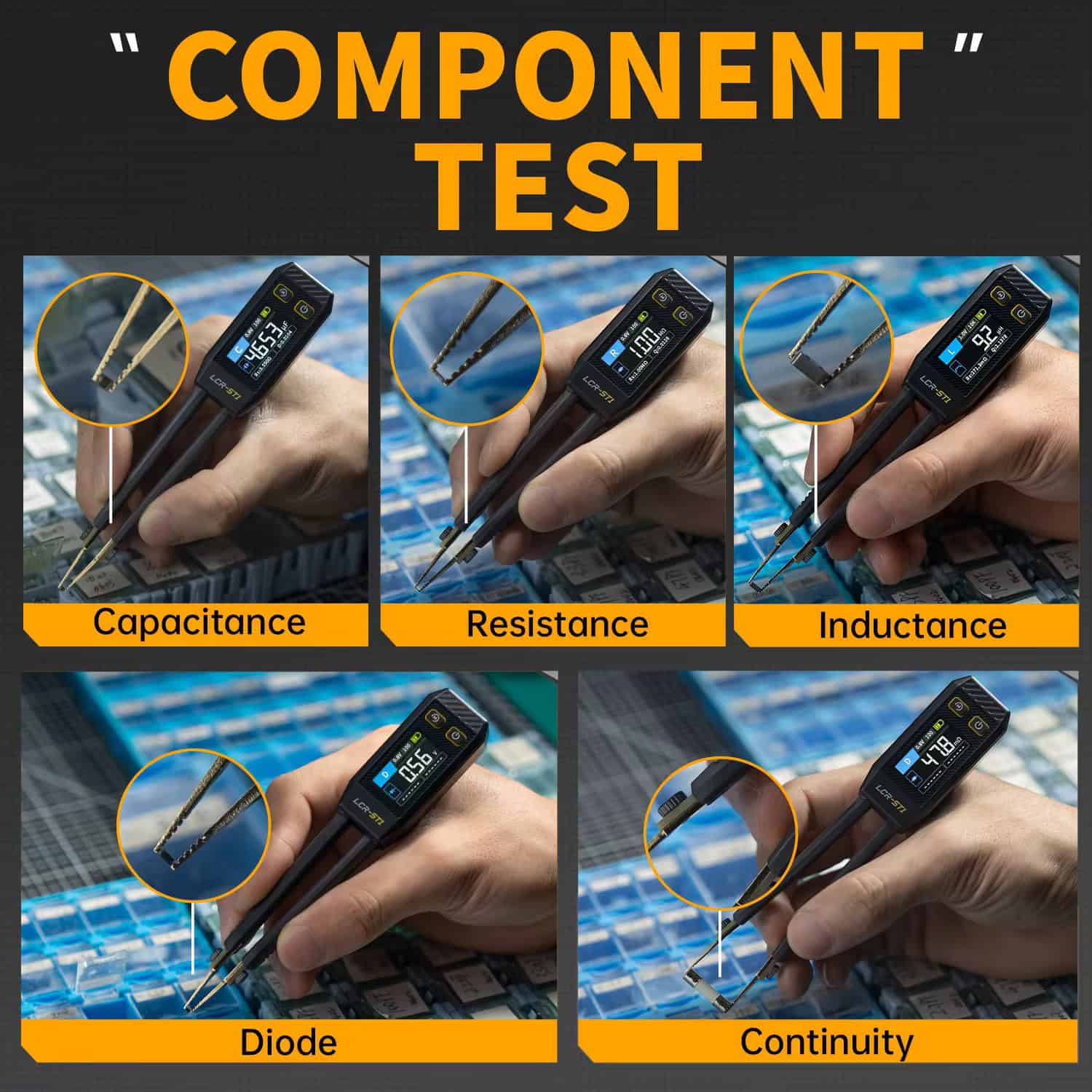

FNIRSI LCR-ST1 is a multi-functional and portable testing instrument. It supports precise automatic resistance, capacitance, inductance, diodes, and Continuity measurements.

This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14-inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz with 0.3V, and 0.6V RMS test levels.

The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.

Whether you are an experienced engineer or a novice in electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don’t miss out on this excellent tool that combines functionality and portability!

Basic Specifications:

Model: LCR-ST1
Capacitance range: 1pF-22mF
Inductance range: 1μh-10H
Resistance range: 10mΩ-10MΩ
Diode: On voltage 0.7V

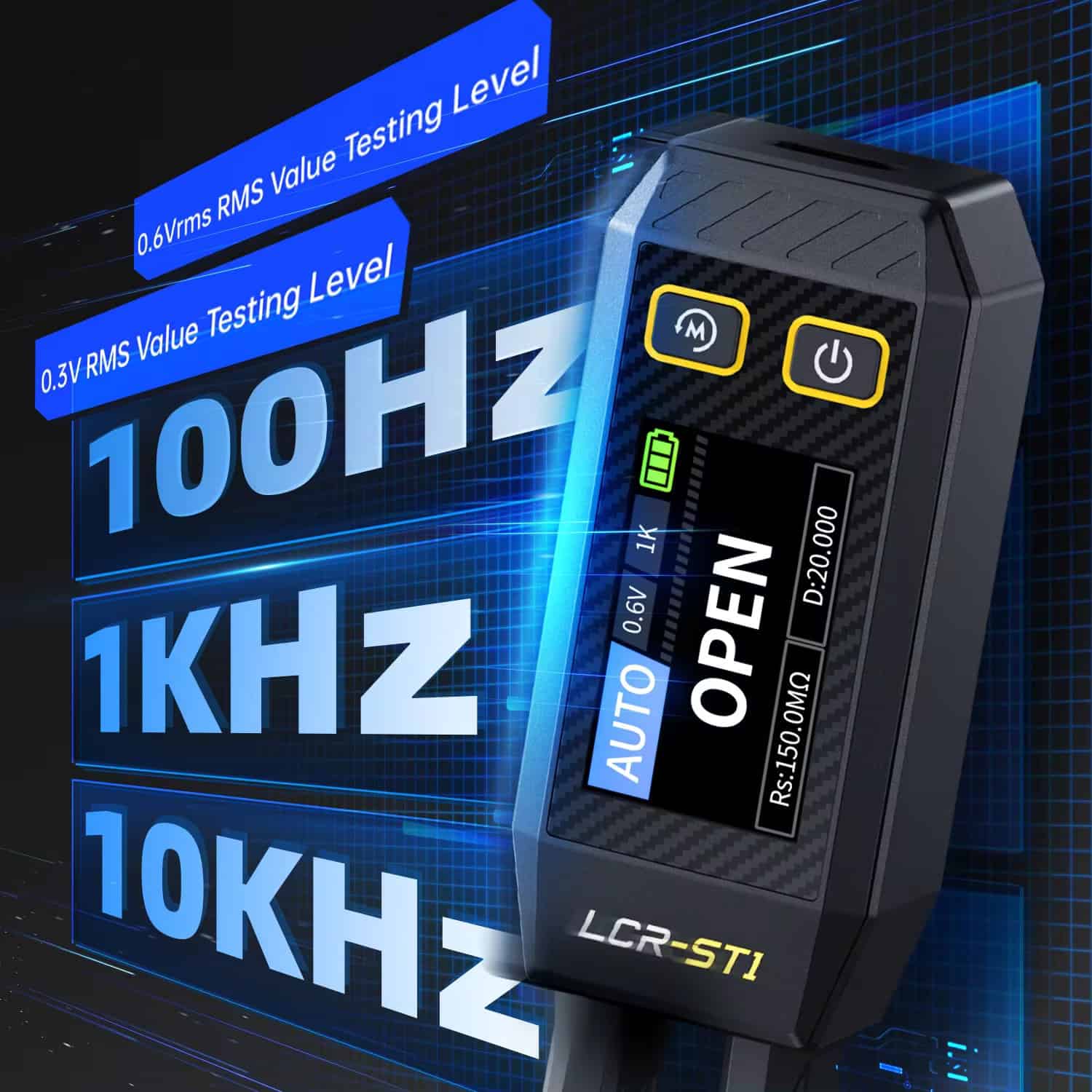

Frequency test: 100Hz, 1kHz, 10KHz
Level test: 0.3V, 0.6V RMS

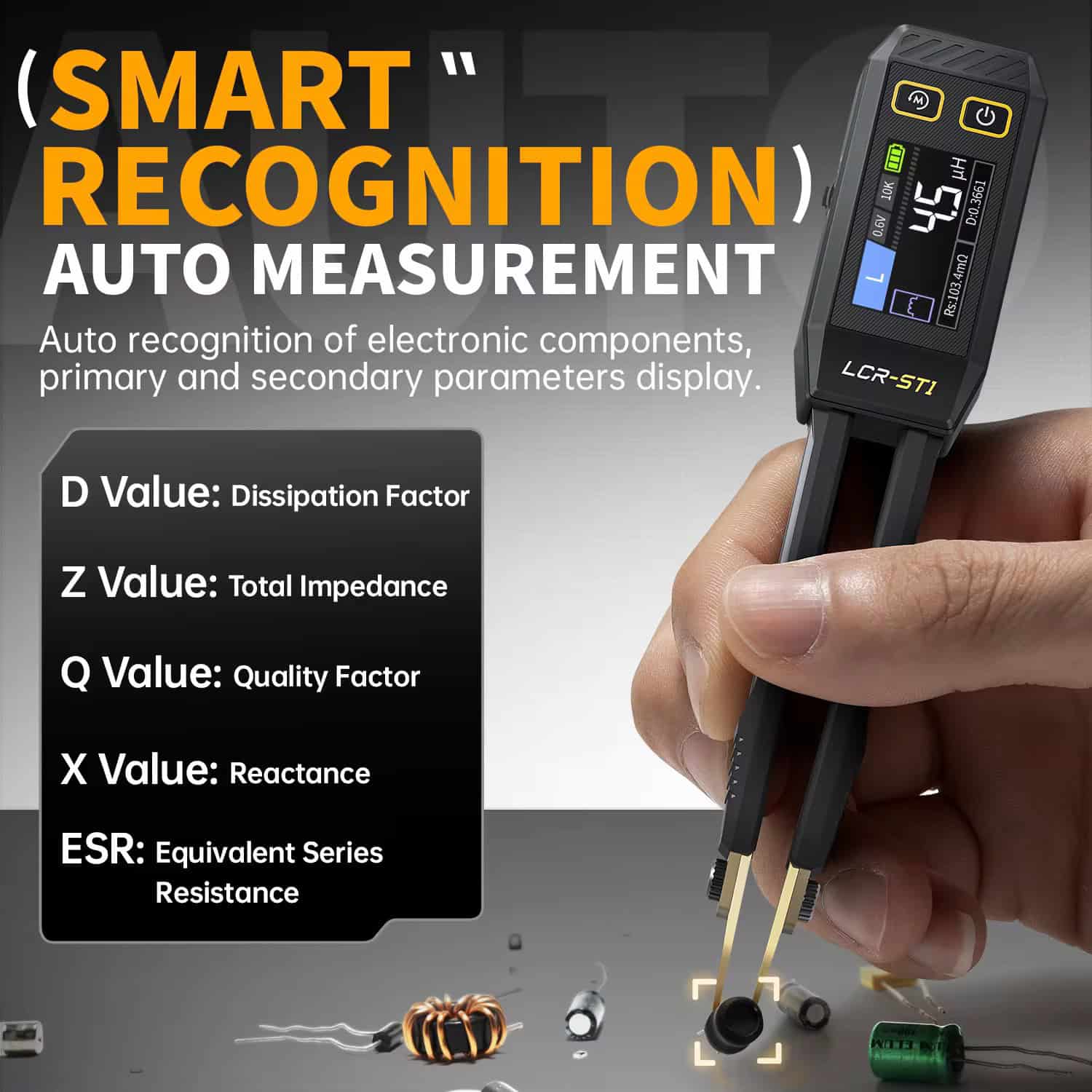

Parameter display: ESR, D value, Q value, Z value, X value
Display: 1.14” color screen
Charging Interface: Type-C, 5V/A
Power Supply: 250mAh lithium battery
Auto-recognition measurement: Support
Replaceable tweezer head: Support
Auto shutdown: Support
Data hold: Support
History record: Connect to PC to view and export
Language: Chinese, English
Size: 28×19×150mm
Weight: 41g

Package Contents:

1 * LCR-ST1 smart tweezers
1 * Pointed head (one pair) + Hook head (one pair)
1 * Magnetic patch
1 * USB data cable
1 * User manual
1 * Mini case
1 * Packing box
