HIWIN Linear Guideways

Introduction:

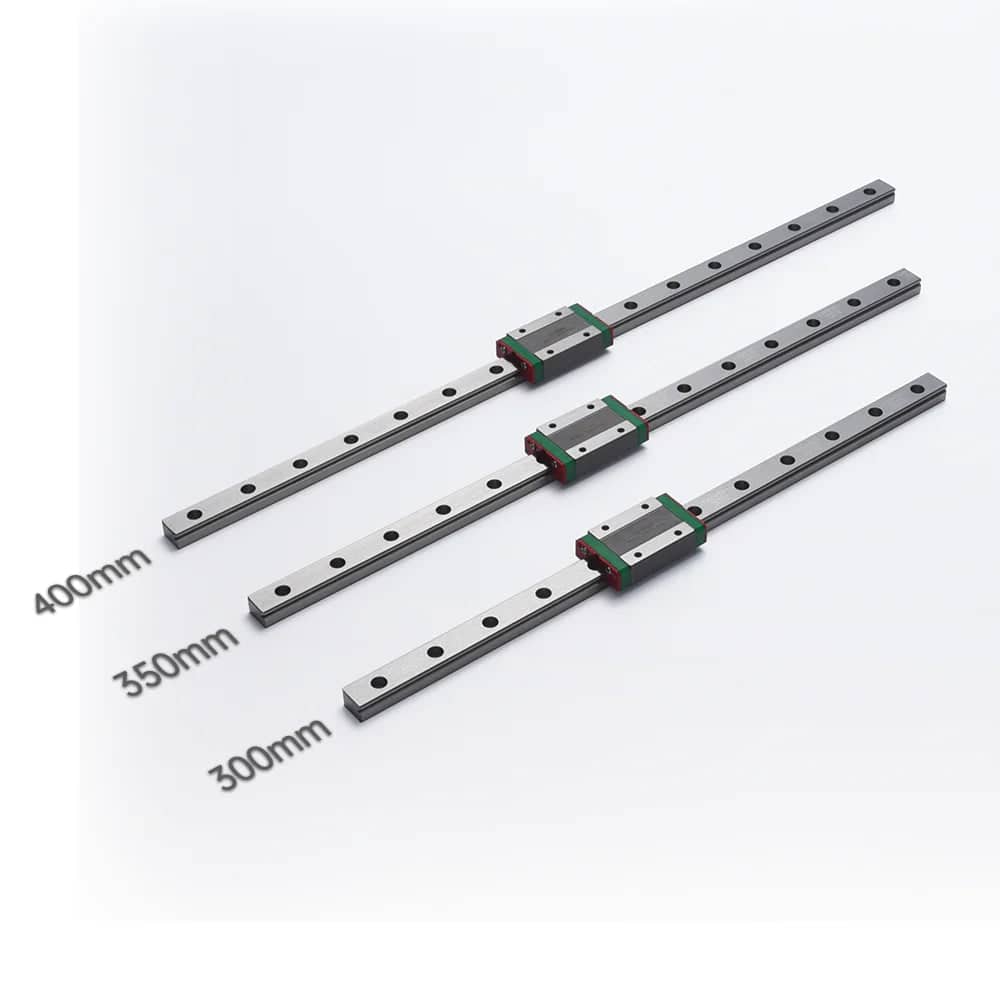

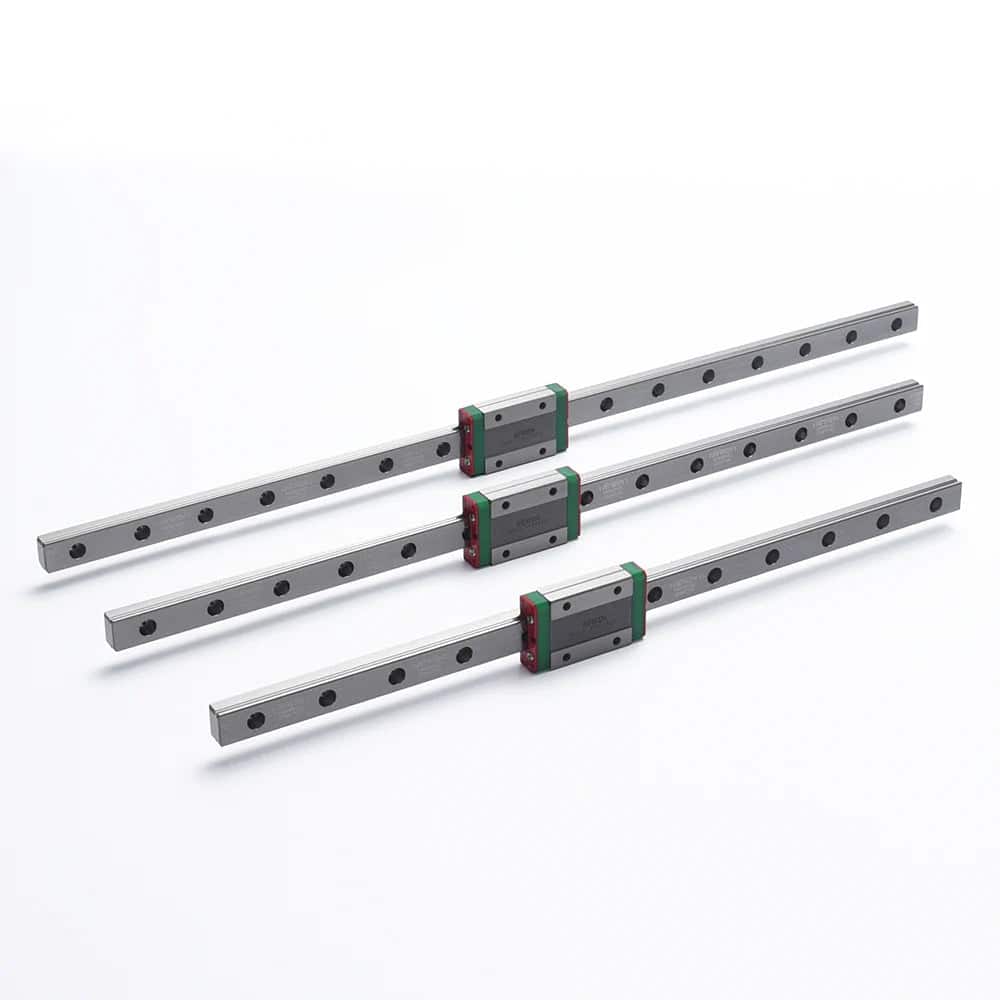

The MG series is a miniature linear guideway that comes in a compact size with a Gothic arch contact design that offers high stiffness and high rigidity against moment loads in all directions. The MG series also offers anti-corrosion protection which all material is in a special grade of stainless steel for compatibility in various working environments. The MG series is available in a narrow block type (MGN) and also with an enlarged width (MGW).

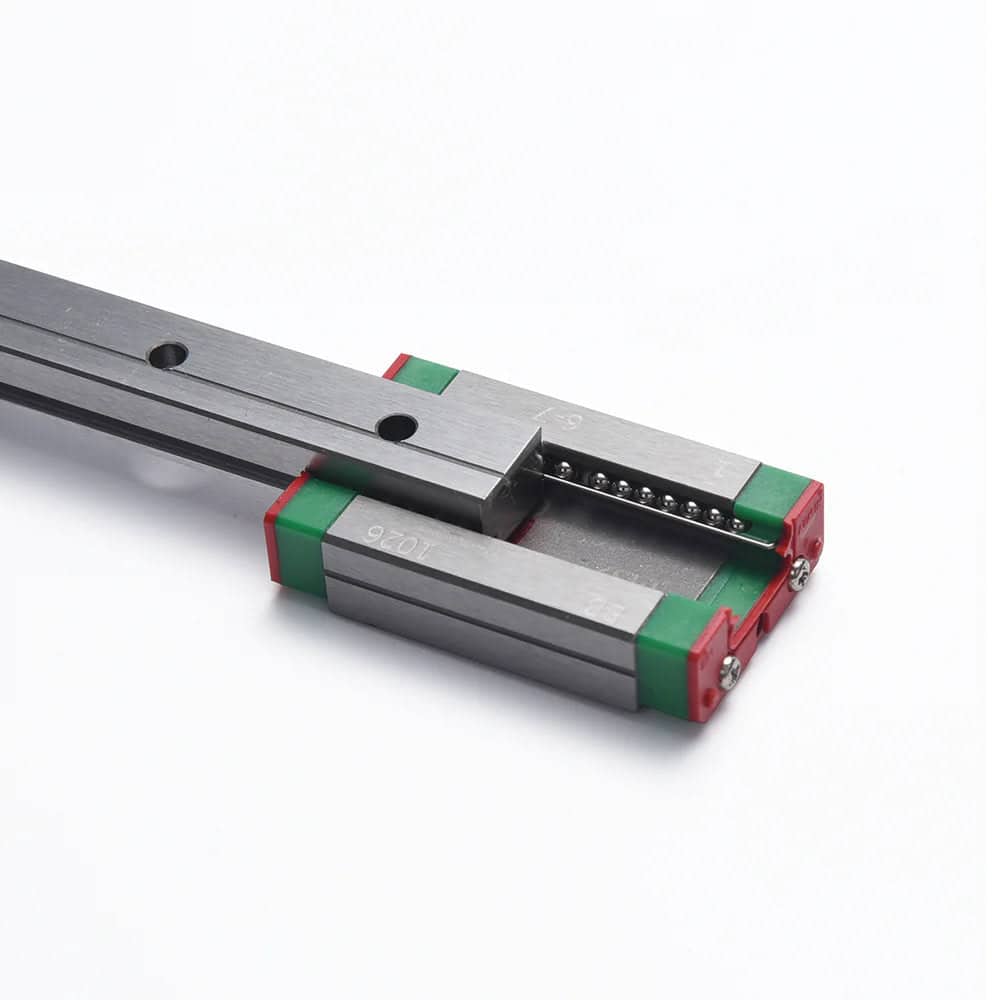

Linear guide is consisted of rail, block, rolling elements, retainer, recirculator, end seal etc. By using the rolling elements, such as balls or rollers between the rail and block, the linear guide can achieve high precision linear motion. Linear guide block is divied to flange type and square type without flange, or Seal type block, Standard type block, Double bearing type block, Short type block. Also, linear block is divided to high load capacity with standard block lenth and ultra high load capacity with longer block length.
