MINIWARE MDP-L1060 Programmable Intelligent DC Electronic Load Module

MDP-L1060 is the first programmable intelligent DC electronic load module of MDP mini digital power system. MDP-L1060 has four working modes: constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP). OVP), low voltage (UVP), over-current (OCP), over-power (OPP), over-temperature (OTP), reverse polarity (Anti-Reverse) and other comprehensive intelligent safety protection functions, it is a variety of AC/DC Portable intelligent solutions for product testing scenarios such as power supplies, DC/DC converters, chargers, batteries, adapters, and power electronic components.

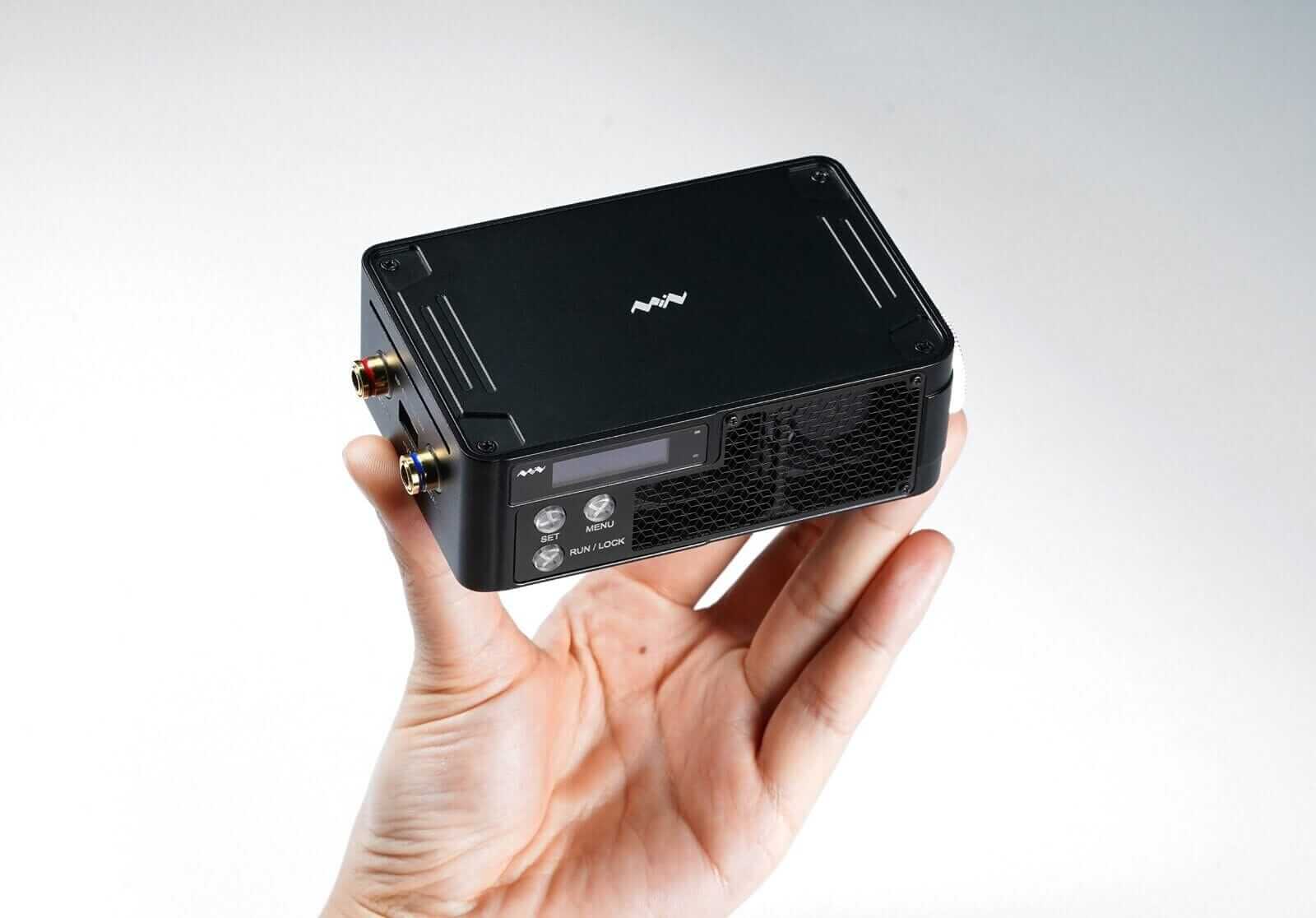

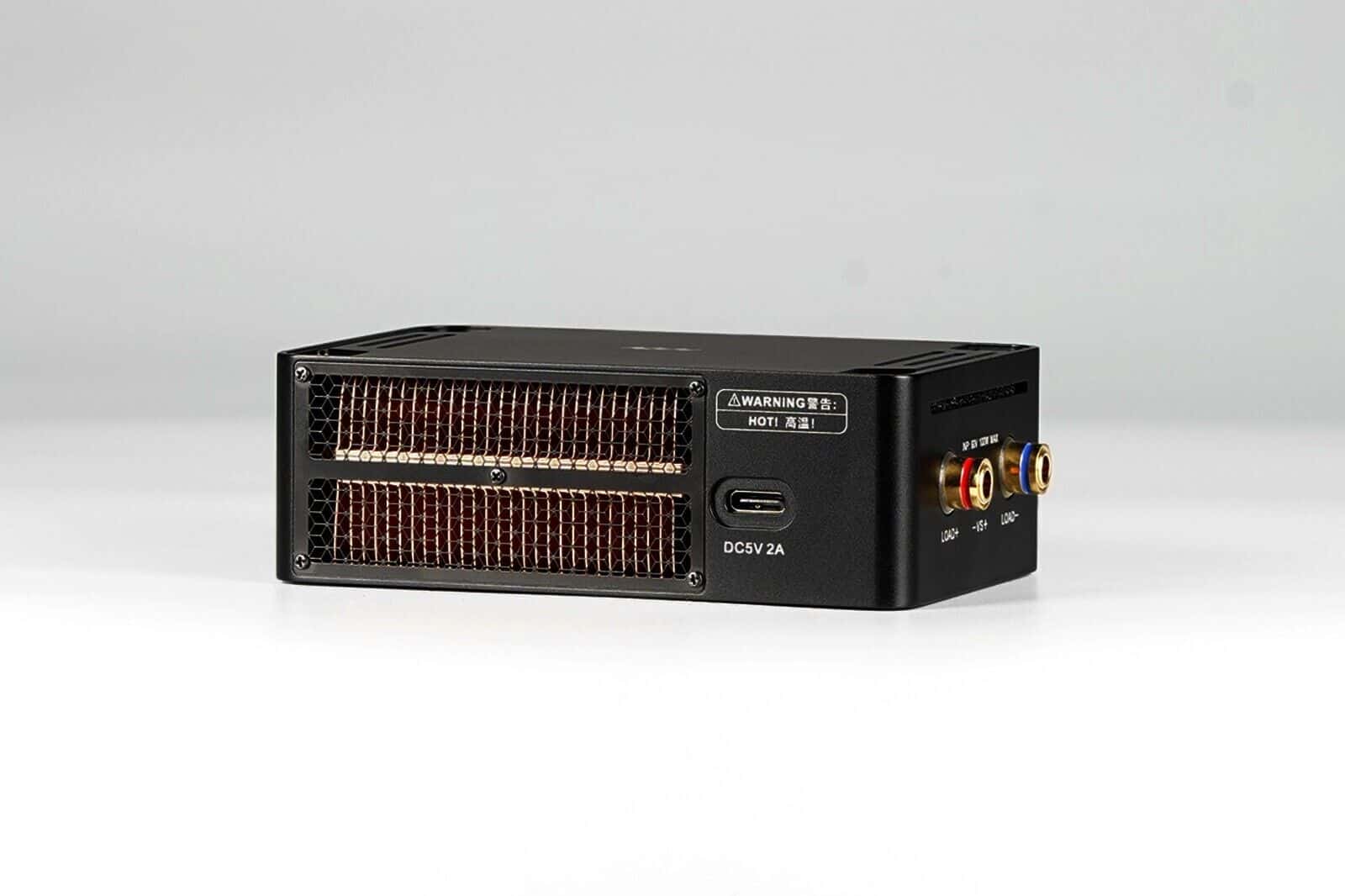

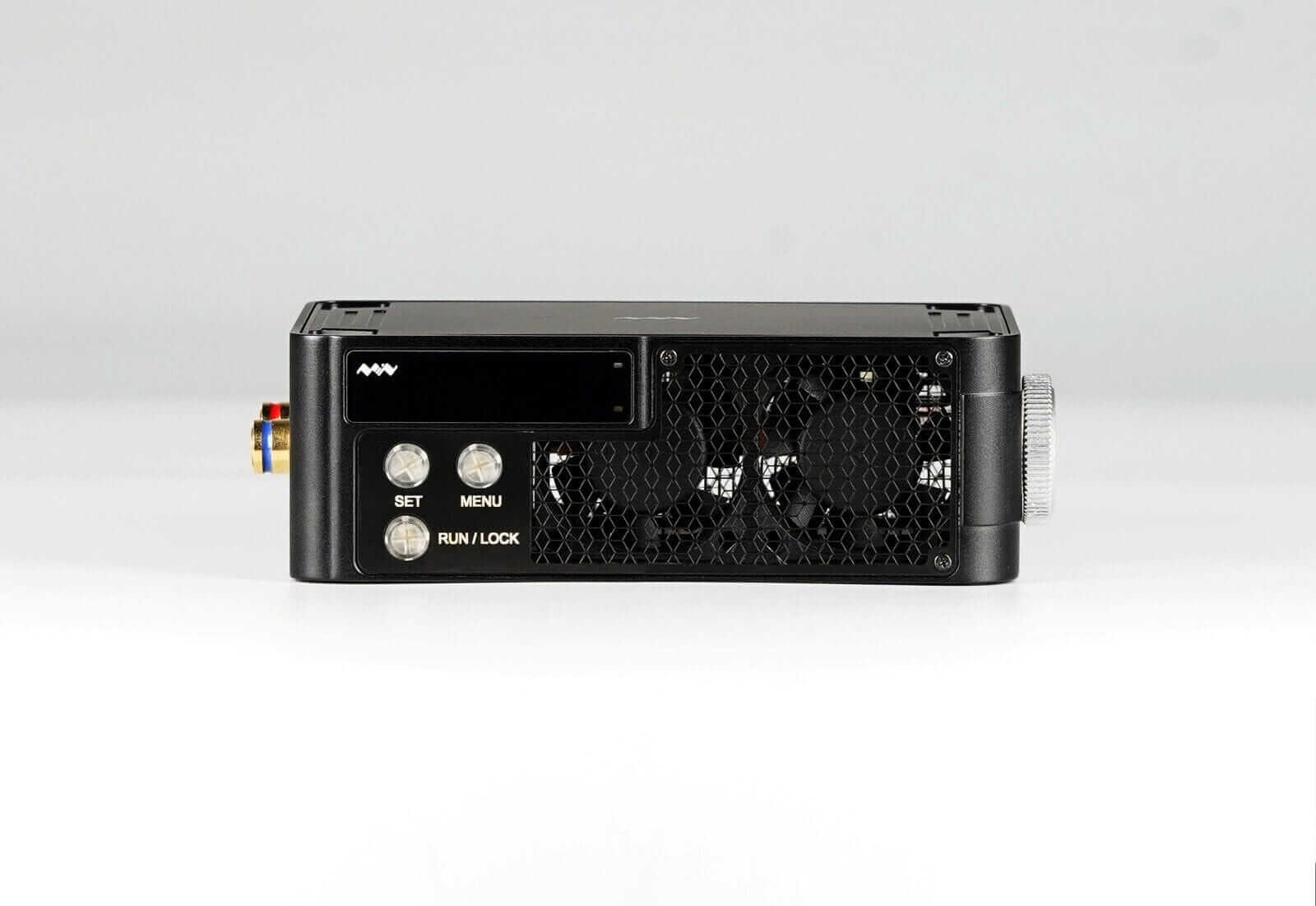

MDP-L1060 continues the stackable appearance design of the MDP mini digital power supply series. It is small and portable as a whole. The built-in 650mAh battery can meet the short-term wireless load test. The main body of the load module adopts CNC aluminum alloy frame, built-in high-efficiency brass heat sink and high-speed cooling fan, which can automatically adjust the wind speed to dissipate heat according to the load consumption. There are hollow decorative sheets on the front and back of the fuselage to maximize the air intake of the equipment and ensure the heat dissipation speed. The load input port adopts 4mm gold-plated standard three-purpose input port, and is equipped with XT30 remote compensation input port, which can complete more accurate load test.

As an electronic load module of the MDP series, after the MDP-L1060 and the display control module (MDP-M01) have reached wireless communication, complex remote control can be performed, such as battery capacity test, internal resistance test, factory test, dynamic test , overcurrent protection test and other advanced functions and flexible trigger options, the usability is stronger.

Feature:

• Stackable design of MDP series, miniaturized, convenient and easy to use;
• 2.4G wireless communication, realizing complex remote control and advanced functions through MDP display control module;
• 4 Working modes: constant current (CC), constant voltage (CV),constant resistance (CR) & constant power (CP);
• 5 Advanced functions: battery (capacity) test, internal resistance test, factory test, dynamic test & over-current protection test;
• 6 Major intelligent safety protections: over-voltage (OVP), under-voltage (UVP), over-current (OCP), over-power (OPP), over-temperature (OTP) & anti-reverse protection;
• Intelligent fan/wind speed control, efficient heat dissipation, energy saving;
• Better accuracy with 4mm three-purpose gold-plated standard input port, XT30 remote compensation input port;
• Support programmable loading test.

Specifications：

Product Model: MDP-L1060
Power input: DC 5V 2A
Battery capacity: 650mAh
Input Interface: USB TYPE-C
Maximum load input voltage: 60V
Maximum load input current: 10A
Maximum load input power: 100W
Safety protections: Over voltage protection (OVP), under voltage protection (UVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP), anti-reverse protection
Size: 112*66.5*35 (mm)
Weight: 330g

Working mode    CC, CV, CR, CP

Mode	Range	Resolution (Device adjustment)	Resolution (Via display control module)
CC	15mA~10A	1mA	1mA
CV	0.1V~60V	10mV	1mV
CR	10mΩ~4KΩ	10mΩ	10mΩ
CP	3mW~100W	10mW	1mW



Packing List:
1 x MDP-L1060
1 x User Manual
1 x XT30 Female Connector
2 x Input Cable
