MINIWARE MDP-M01 Mini Digital Power System

MDP (Mini Digital Power System) is a system of programmable linear DC power supply based on modular design, capable of connecting different modules for use as needed.
Current Functional Modules:Display Control Module、Digital Power Module
Modules in Develop:Digital Signal Generator Module、Electronic Load Module、Power Charger Module、Battery Pack Module

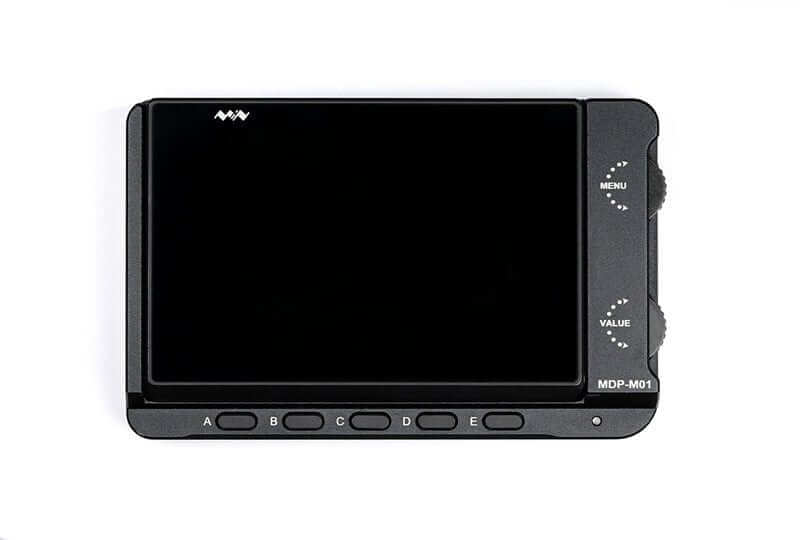

MDP-M01 is a display control module equipped with a 2.8-inch TFT display screen;

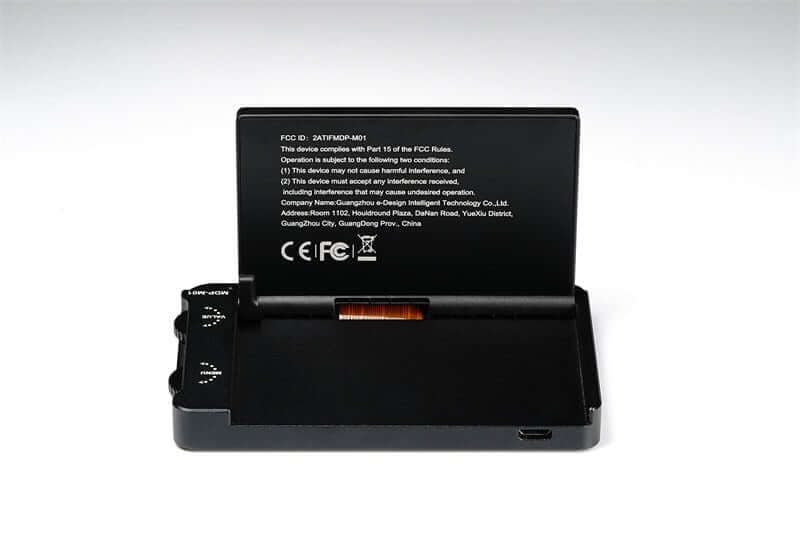

The screen can beturned 90degrees, which is convenient forusers to view data;
MDP-M01 can realize online display and control with MDP-P905 mini digital power supply module and other modules of MDP system through 2.4G wireless communication;
Can control up to 6 sub-modules at the same time.

MAIN PARAMETERS:
Screen Size: 2.8-inch TFT display screen
Screen Resolution: 240*320

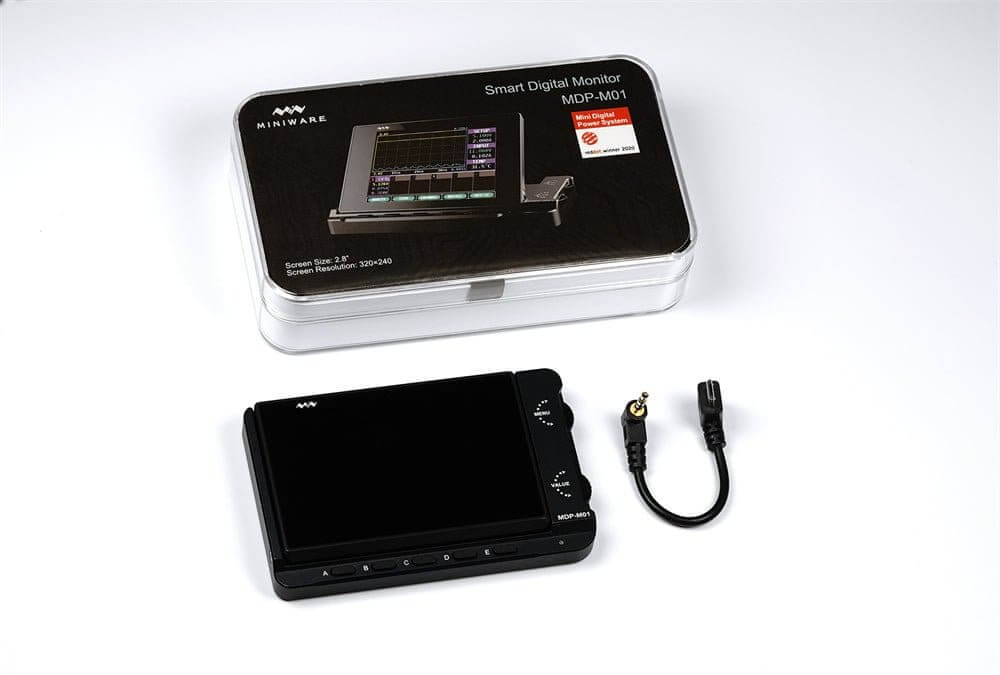

Power Input: Micro USB power input or taking power from sub-module via dedicated power cable
Input: DC5V, 0.3A
Controllable Channel Number: 6
Size: 107mm*66mm*13.6mm
Weight: 133g

Applications:
Universal tests and teaching experiments in R&D laboratory .
Maintenance of cellphones, laptops and other digital products .
Power supply testing and data logger of RF and microwave circuits or modules.
Supply purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices.
Property verification and fault diagnosis of devices and circuits.
Quality control and quality inspection.
Emergency power supply for model airplanes and vehicles.
