MINIWARE MDP-P906 Mini Digital Power Supply

MDP-P906 is the second digital power supply module of MDP series, following MDP-P905；

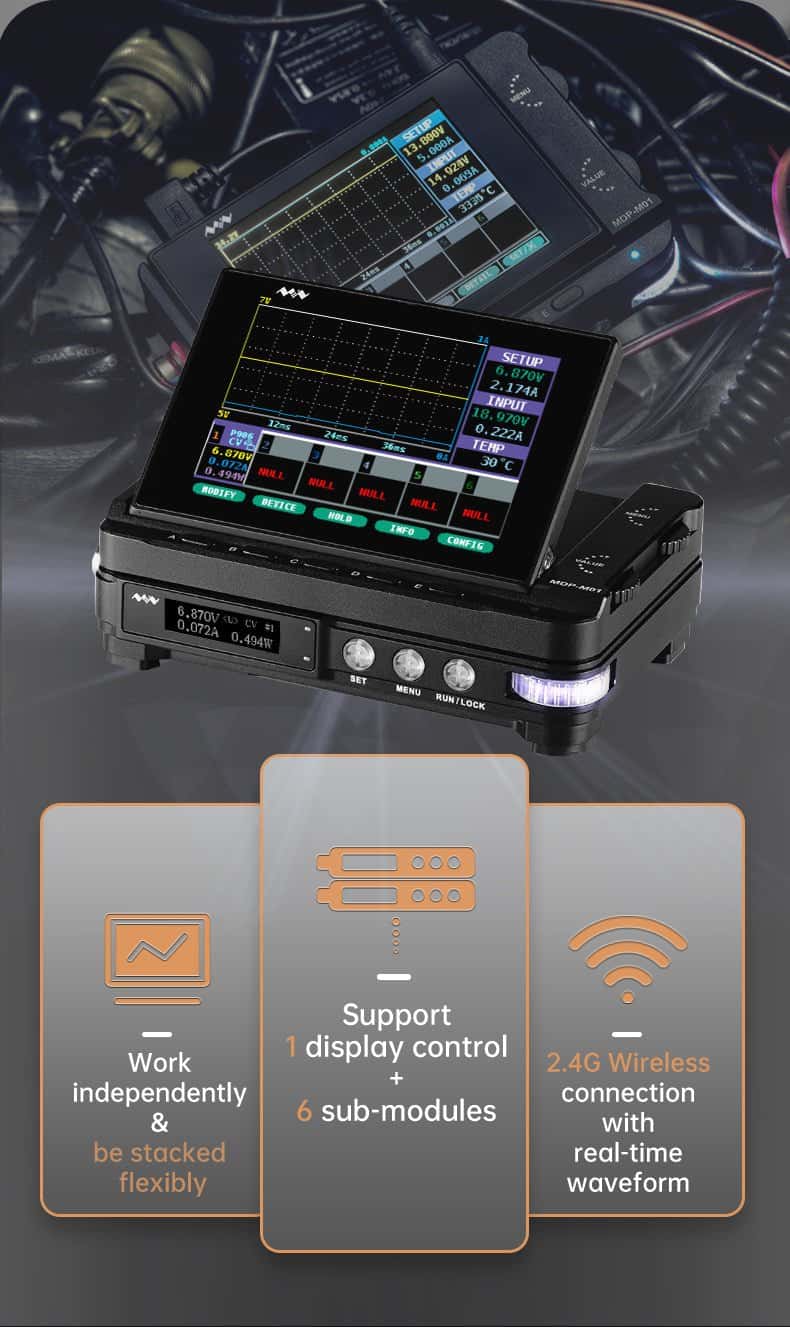

2.4G wireless connection, supporting wireless connection to Display Control module；

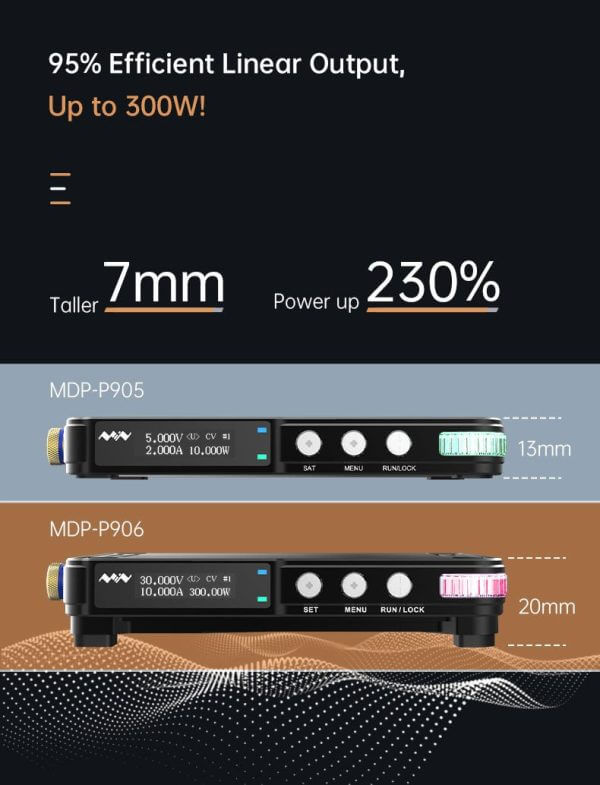

95% High efficiency programmable linear output, max 300W power output；
Built-in low noise & high-speed cooling fan；

Ultra high-speed transient response & ultra low ripple and noise；
Support multiple in-series and in-parallel connection to output higher voltage；


MAIN PARAMETERS:

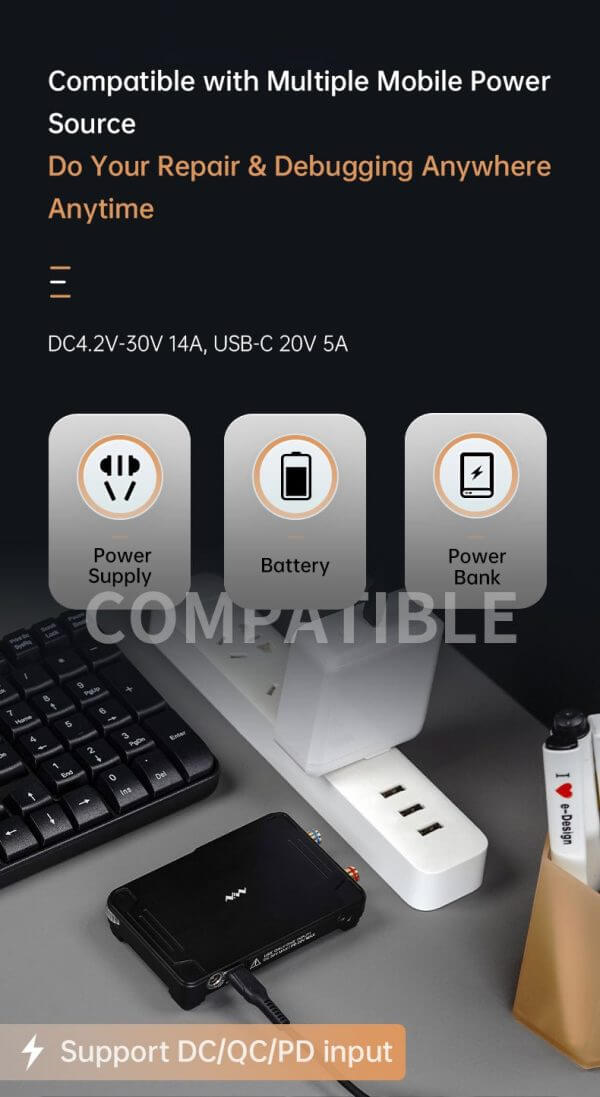

Input: DC4.2V-30V 14A (Max), QC3.0/PD2.0 20V 5A (Max)
Output: 0-30V 0-10A 300W (Max)
Adjustment Rate: Load Adjustment Rate <±0.01^%
Power Adjustment Rate: <±0.01^%
Ripple and Noise: ＜250uVrms, 3mVpp; ＜2mArms
Transient Response Time: ≤4uS
Output accuracy: 0.03%+5mV, 0.05%+2mA
Protection: Input over-voltage, under-voltage,
reverse connection protection, output over current,
back-flow protection and over temperature protection
Others: Automatically shut down and enter micro-power mode；
Support USB firmware upgrade

PRODUCT SPECIFICATIONS:
Data Transfer Interface: Micro USB Port

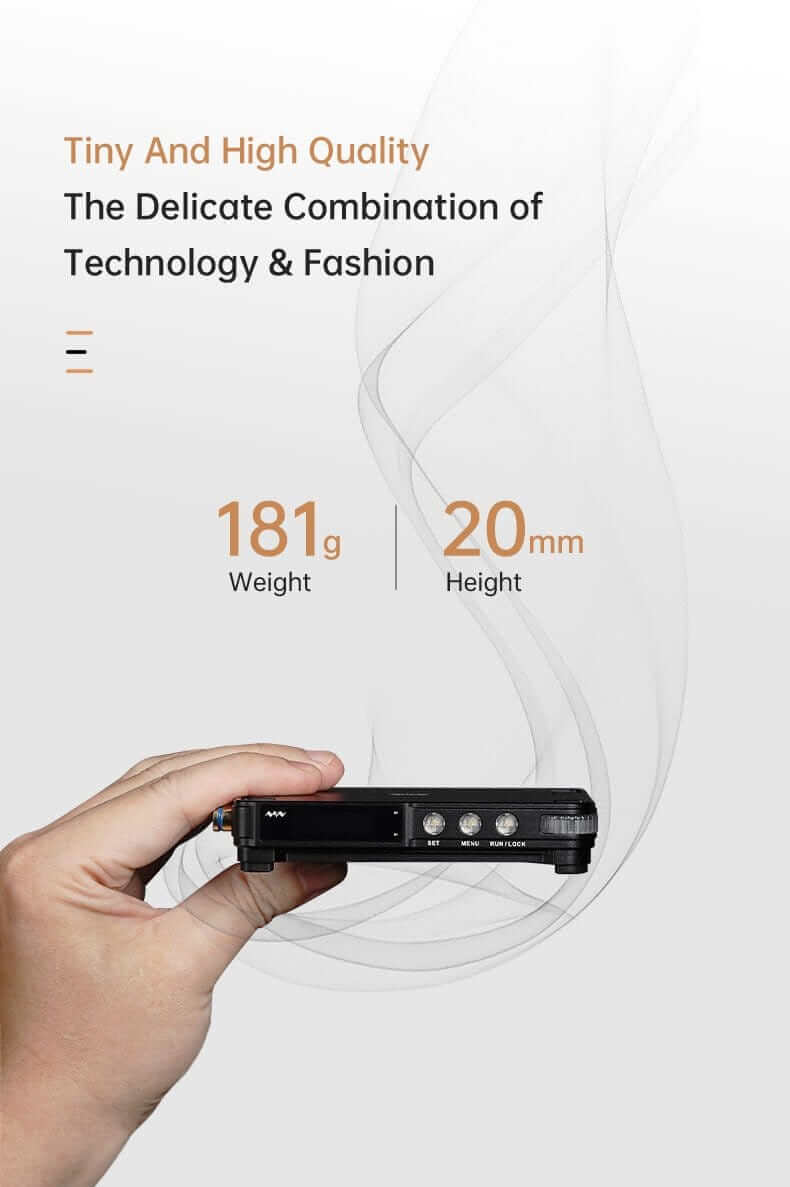

Net Weight: MDP-P906 181g
Certification: Compliant with EU Certification CE FCC
