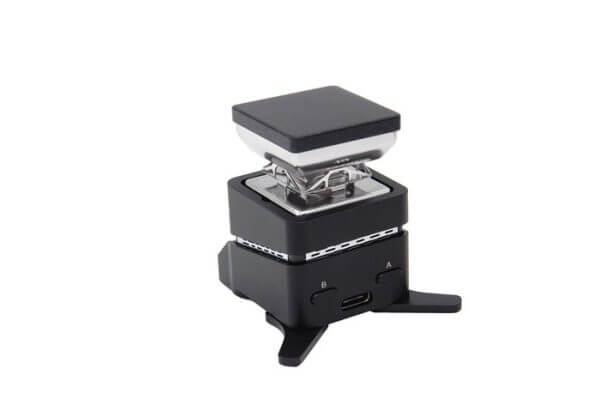

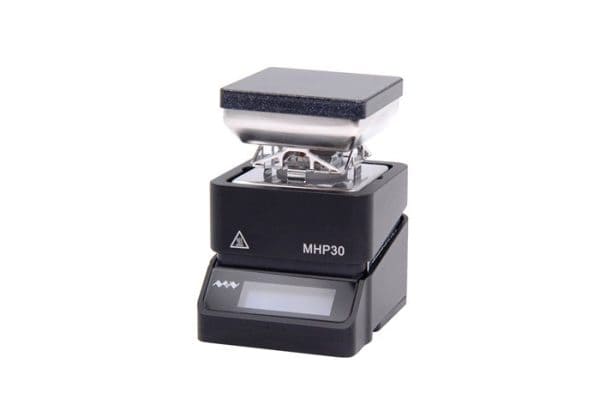

MINIWARE MHP30 Mini Hot Plate Preheater (PD)

MHP30 Mini Hot Plate Preheater is an ultra-mini smart constant temperature hot plate with pocket size;

MHP30 has a small and exquisite appearance, with a square tower shape and a total height of only 5.2cm (2 inches);

It eliminates redundancy, retains sufficient effective heating area, greatly saves energy and heating time;

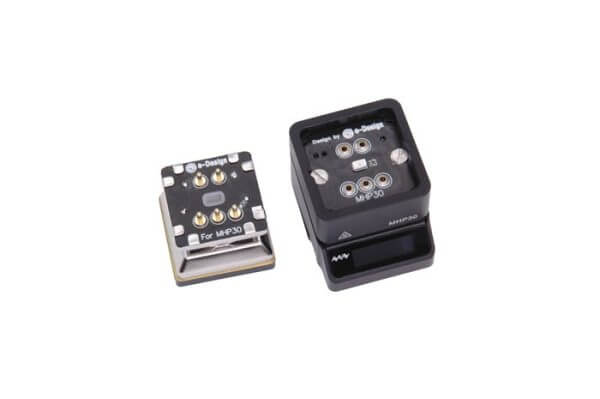

MHP30 controller and hot plate can be flexibly separated and replaced;The controller is equipped with an OLED display and two physical buttons (on the back);

A pair of support feet at the bottom can be spread out to better support the whole station;

The hot plate’s heating body is made of brass with nano-ceramic coating, smooth on surface and evenly heated；

When using 65W PD power supply, it only takes 150 seconds to heat from 26°C room temperature to 300°C；

The controller has a built-in true color LED that changes color with the rises and falls of the temperature, letting you know the warm and cold at a glance；

MHP30 also has smart modes such as preset temperature, tilt protection, power wake-up and automatic sleep;

Users can set to turn on or off these functions according to their needs.

Product Features:

• Ultramini size, exquisite and compact;
• Separablecontroller and hot plate, flexible to replace;
• High quality aluminum alloy shelland stainless steel heat dissipation slices;
• Built-in OLED displayand true color LED, light color changes with heating temperature;
• Twosupporting legs at the bottom can be spread out to provide stable support;
• Nano-ceramic coatingon brass hot plate, smooth, durable, and evenly heated;
• Hot plate features a futuristic stainless steel heat dissipation bracket,artistic and practical;
• PD power supply input, power up to 60W;
• Takes only 150 seconds to heat from room temperature to 300°C (65W PD power supply);
• Energy saving andenvironmentally friendly;
• Multi smart modes: preset temperature, tilt heating, power wake-up, automatic sleep, firmware upgrade
• Applications: Portablefor out fields; preheating, desoldering circuit boards, components, LED beads, etc.

Specifications:

• Heating area: 30mm*30mm
• Temperature range: 100-350°C
• Temperature stability: 3%
• Ground resistance: <2Ω
• Power: 60W (Max)
• Power input: PD
• Size: Controller: L43mm*W35mm*H31mm
  Hot plate: L31mm*W31mm*H28mm
• Weight (Controller + Hot plate): 82g

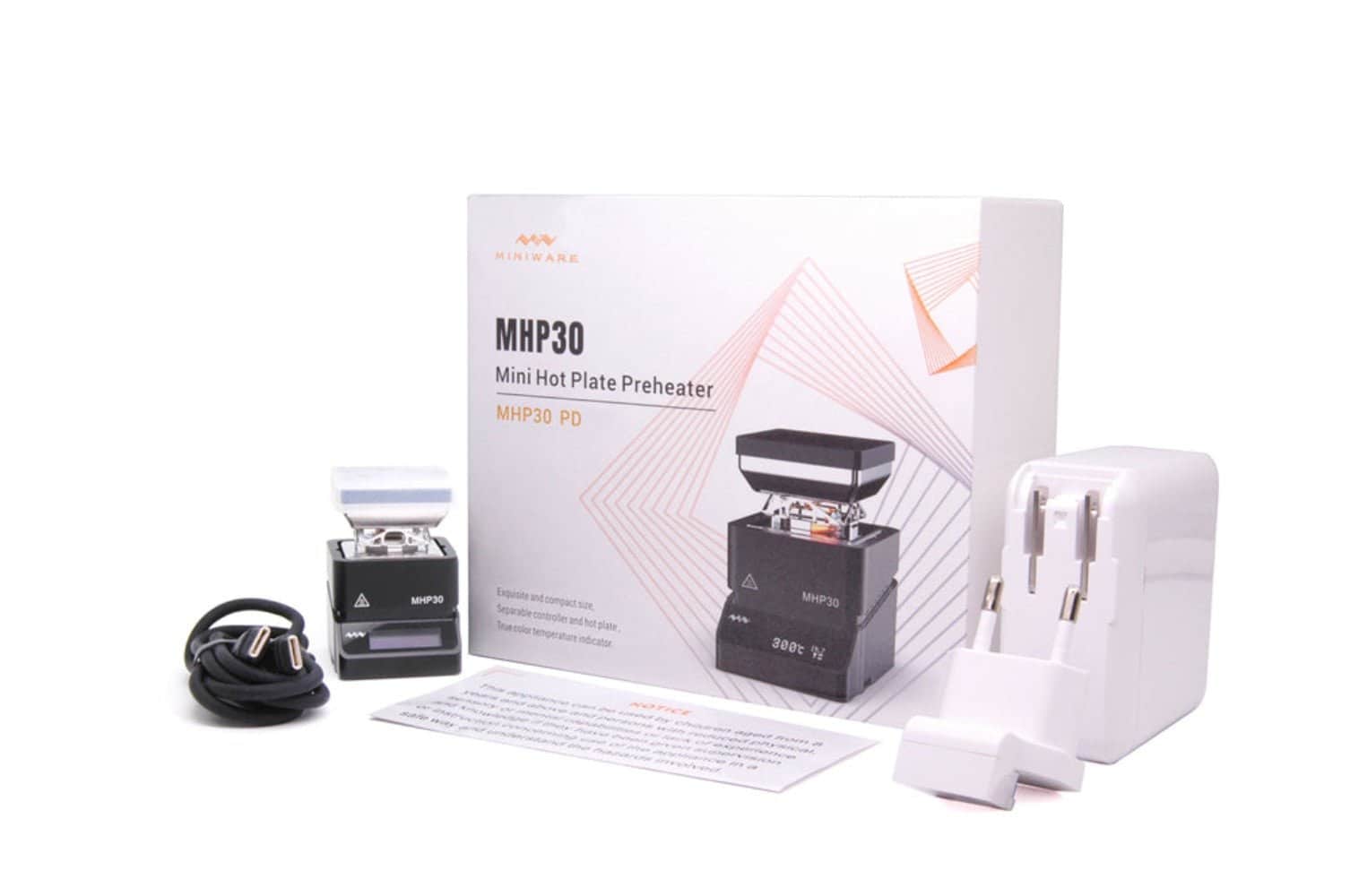

CONTENTS:
MHP30 Controller x 1
Hot Plate（BS30） x 1
Type-C-C Cable x 1
65W PD Power Plug (US) x 1
Plug Adaptor (EU) x 1
Safety Instructions x 1

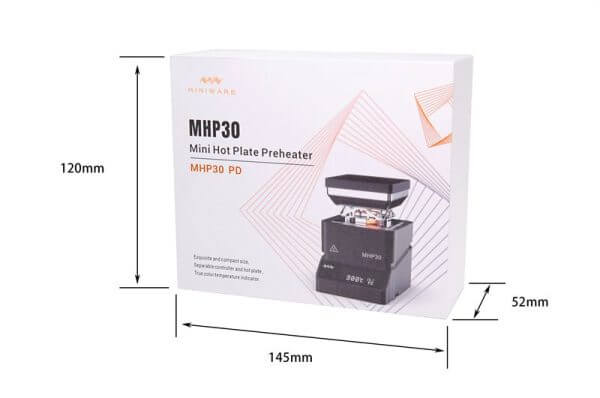

PACKING SPECIFICATIONS:
Gross Weight：477g (including package)
Package Size：145mm x 120mm x 52mm
