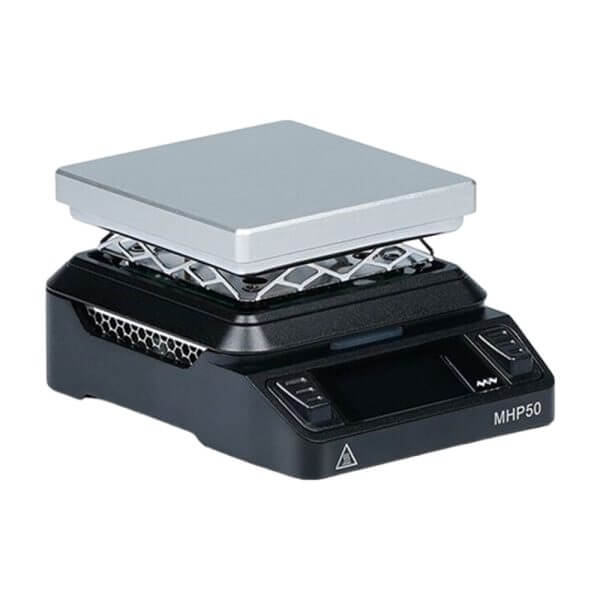

MINIWARE MHP50 Mini Hot Plate Preheater

5cm*5cm heating area, 3.7cm height, mini pocket size, suitable for mobile soldering application scenarios;

Aluminum alloy heating body, a classic material and evenly heated;

Separable controller and hot plate, flexible to replace;

Built-in high-speed cooling fan, which can automatically detect the temperature of the controller, intelligently adjust the fan speed, and accelerate heat dissipation;

Innovative air deflector to effectively cut off heat transferring, protecting controller from thermal damage;

Innovative heating curve function, you can customize the heating temperature and duration by sections to achieve a similar reflow soldering effect;

160*80 resolution color LCD, clear and rich parameter display;

Built-in OLED display and true color LED, light color changes with heating temperature;

Please consider the following requirements when selecting a power supply for your MINIWARE MHP50:

• Voltage range: 19V-24V
• Current: 5A recommended
• Maximum power: 150W
• Connector: 2.5mm x 5.5mm

Alternatively, you can use a power supply with Power Delivery (PD) support:

• PD Voltage: 20V
• PD Maximum power: 100W

Power Supply Recommendations:

1. For maximum performance, use a power supply with an output voltage of 24V/5A.
2. When using a PD charger, ensure it supports an output voltage of 20V and up to 100W of power.

Takes only 150 seconds at the fastest heating from room temperature (28℃) to 300℃ (under DC 24V power input);

MHP50 also has smart modes such aspreset temperature, overturn protection, brightness adjustment and automatic sleep.
