SUNLU Filament Connector FC01

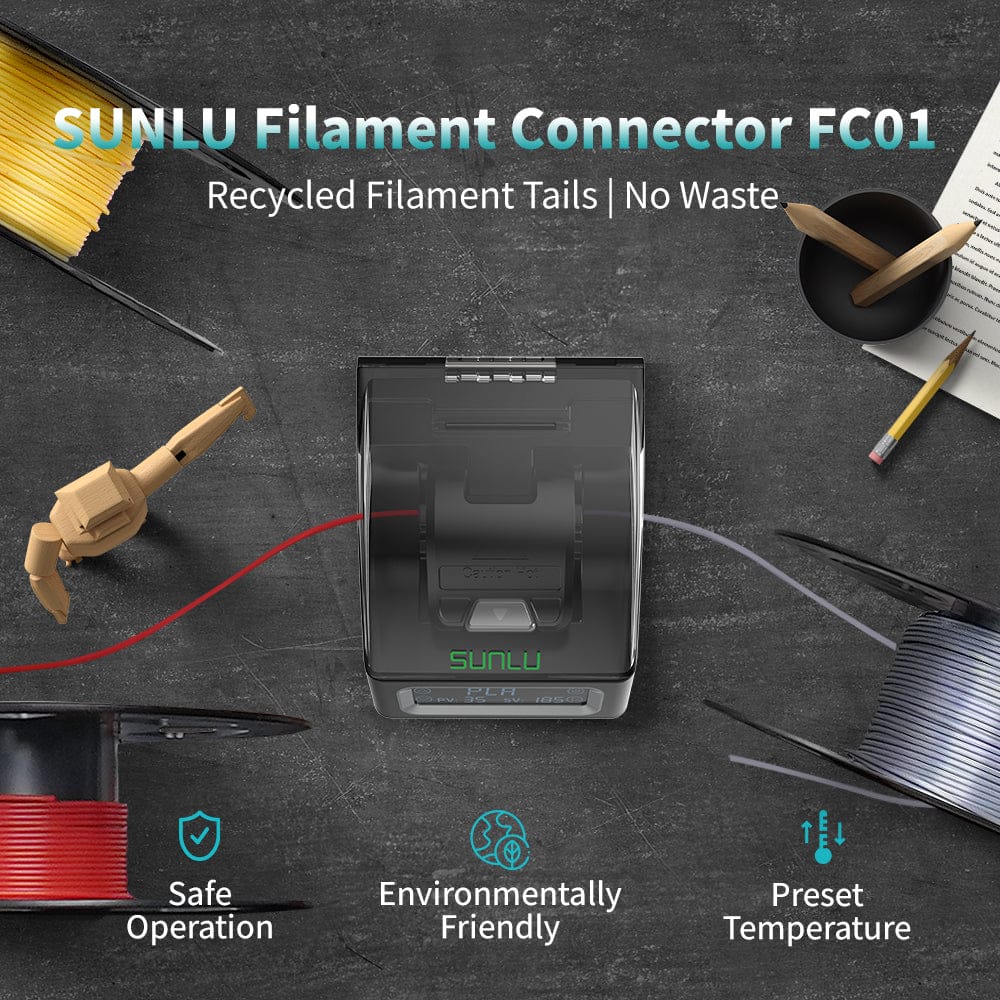

Zero Waste
SUNLU Filament Connector FC01 fully utilizes leftover 3D printing filament, minimizing waste and saving costs. The fusion splicer reduces tail material waste and helps users save on new consumables. Achieve efficient printing projects with zero waste.

Creative DIY, Multi-Color Printing
Easily fuse filaments of the same material but different colors. Create vibrant, personalized 3D prints for multi-color models or gradient effects. Unleash your creativity and make every piece unique with SUNLU Filament Connector FC01.

Quick and Accurate Heating

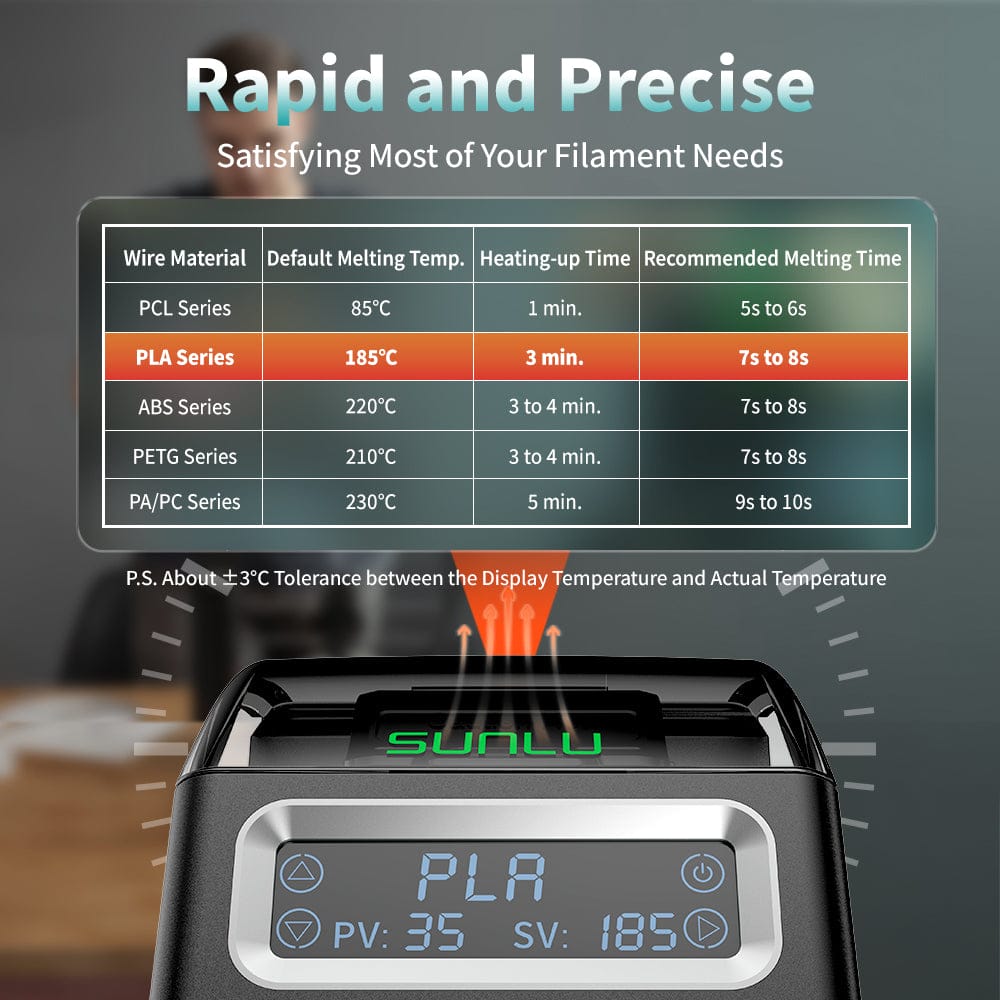

SUNLU Filament Connector FC01 rapidly heats up to 185°C in about 3 minutes, improving efficiency and saving time. Temperature accuracy within ±3°C ensures reliable and consistent operation for a stable and efficient experience.

Wide Material Compatibility
SUNLU Filament Connector FC01 supports up to 240°C and is compatible with various 3D printing materials such as PLA, ABS, and PETG (1.75mm diameter). Enjoy excellent fusing performance regardless of the material used.

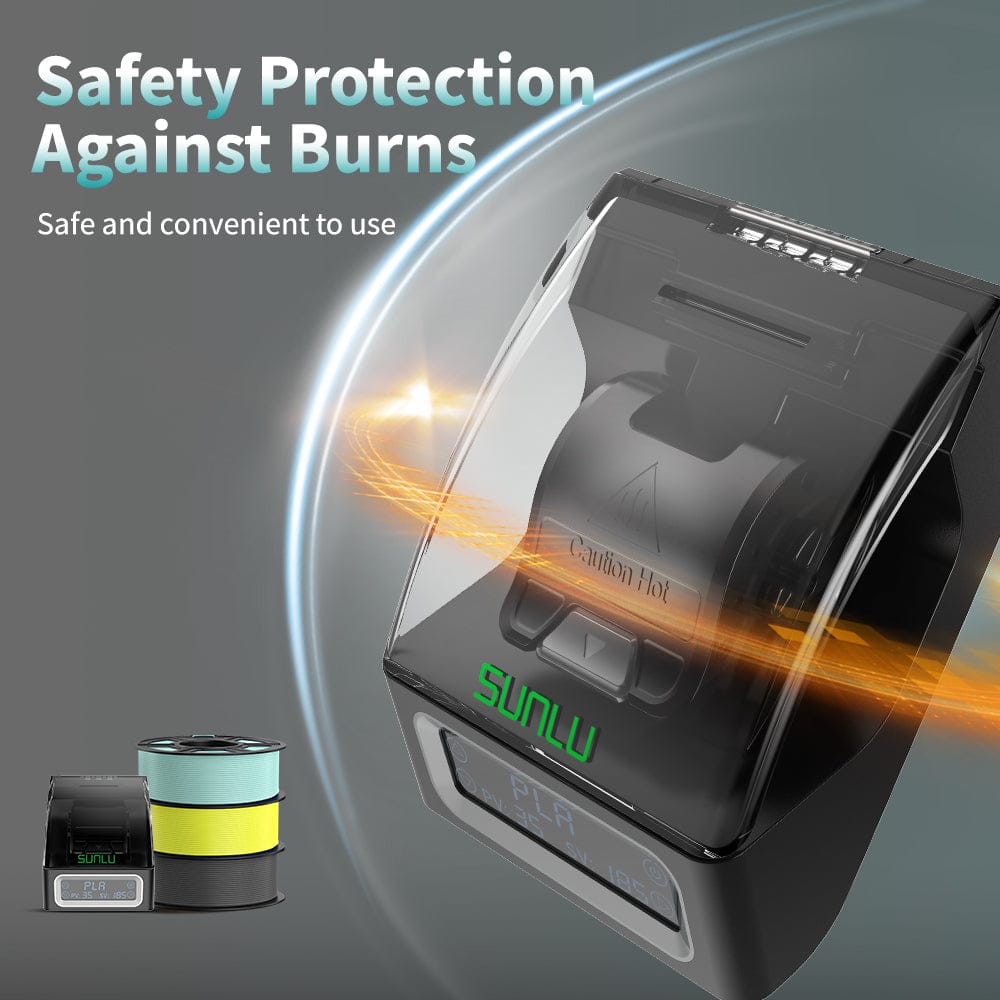

Safe Design
SUNLU Filament Connector FC01 advanced temperature control and high-quality insulation materials keep the external temperature between 50-100°C during fusion, ensuring safe and worry-free use.

Easy Operation
User-friendly design with a simple, intuitive interface. Select the appropriate settings based on the filament type, and follow detailed instructions and video tutorials. Perfect for beginners, with no complicated adjustments needed. Fusion completes in 10-15 seconds. (To guarantee a good connection, it is recommended that the filaments are dry before bonding to ensure that they are not damp.)

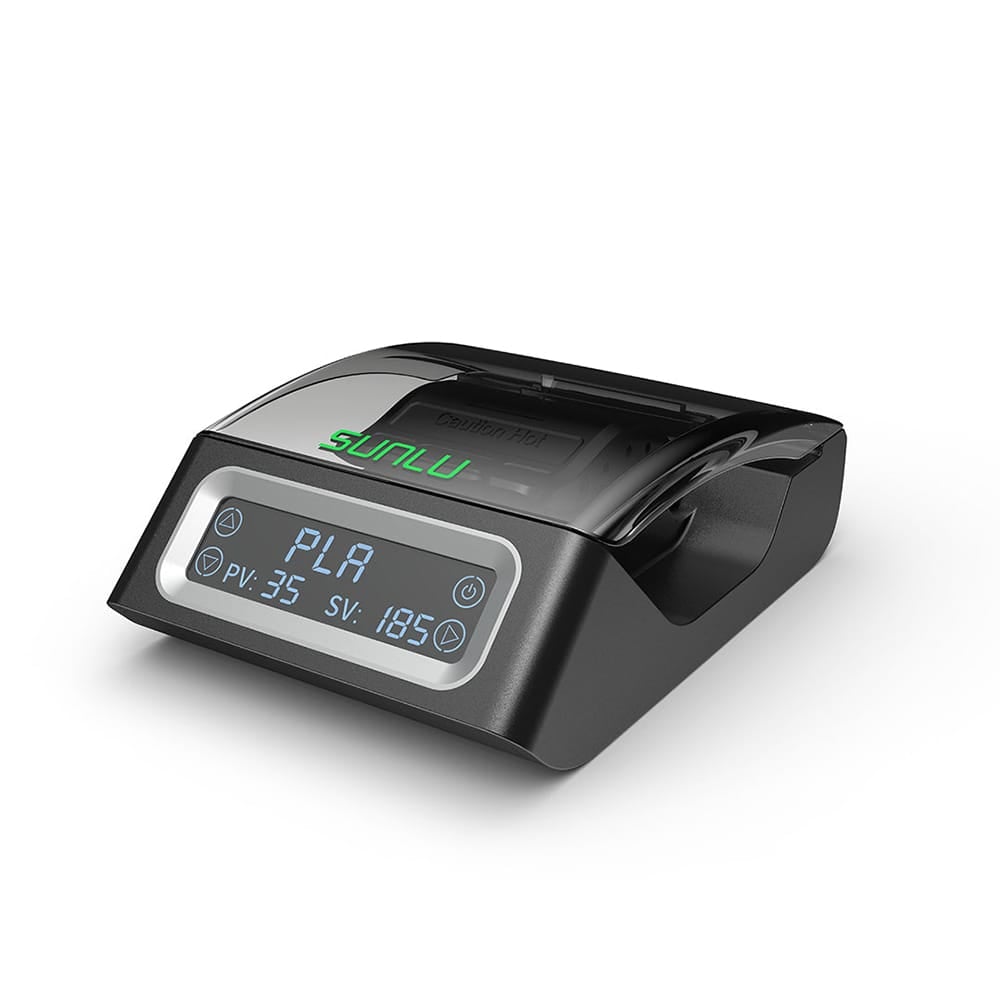

Visual Operation

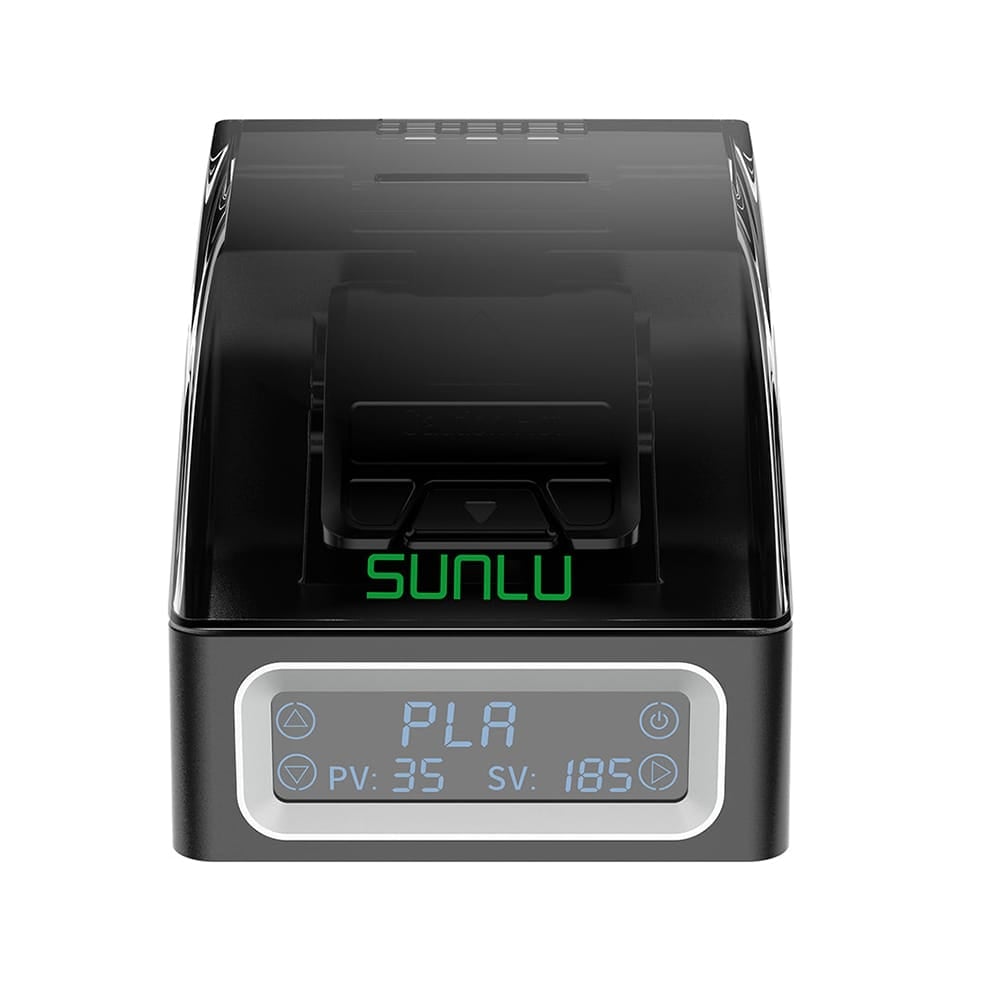

Built-in window and display screen for real-time monitoring of the fusion process. Provides real-time temperature information, ensuring users are informed of each step and the equipment’s status.

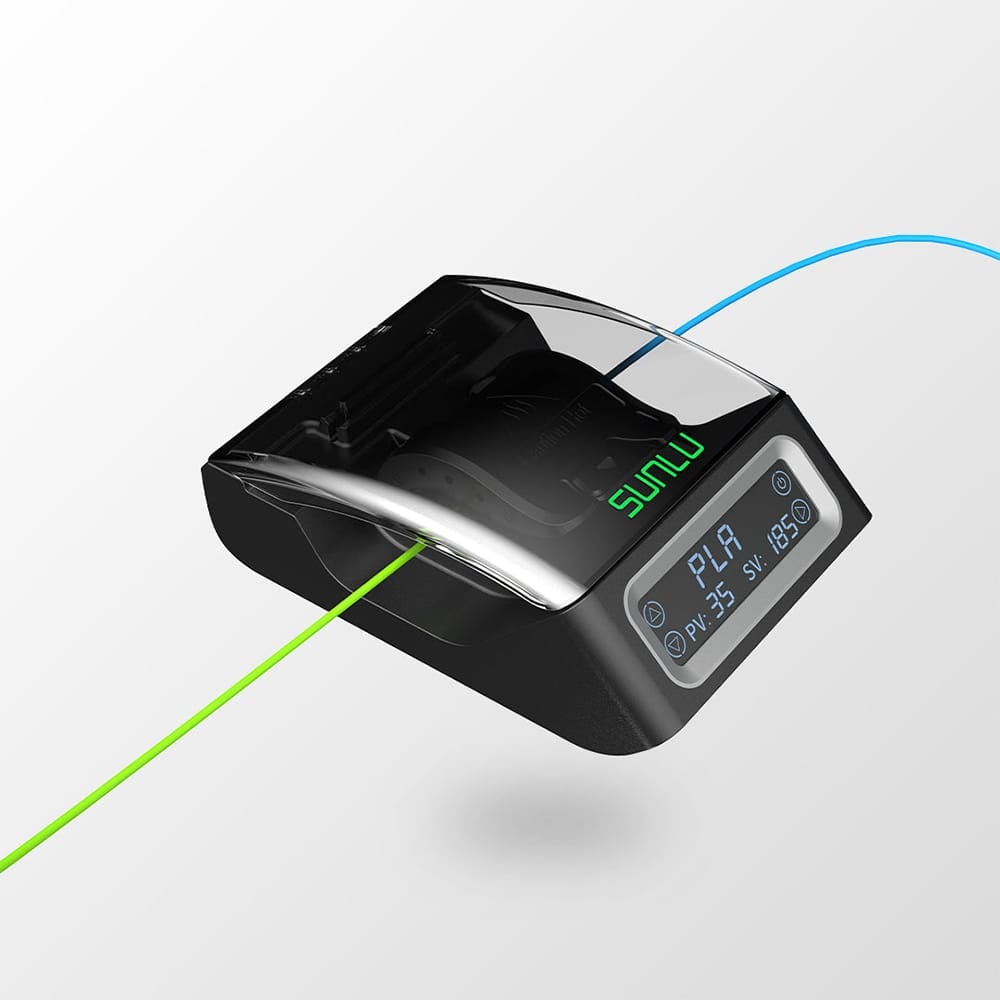

Efficient Welding, Excellent Results
Professional fusing technology ensures strong joints and smooth surfaces without affecting print quality. Produces models with smooth, seamless surfaces and stable performance during printing, ensuring high-quality results for both detailed and large components.

Specifications:

Product Specifications:

• Size: 111 x 79.4 x 33 mm
• Net Weight: 143 g
• Operating Environment Temperature/Humidity: 10°C – 25°C, Humidity ≤ 90%
• Maximum Temperature Resistance: ≤ 250°C
• Power Input Specification: 5V/2A
• Standby Current: 15 mA
• Maximum Working Current: 2A
• Filament Diameter: 1.75 ± 0.03 mm

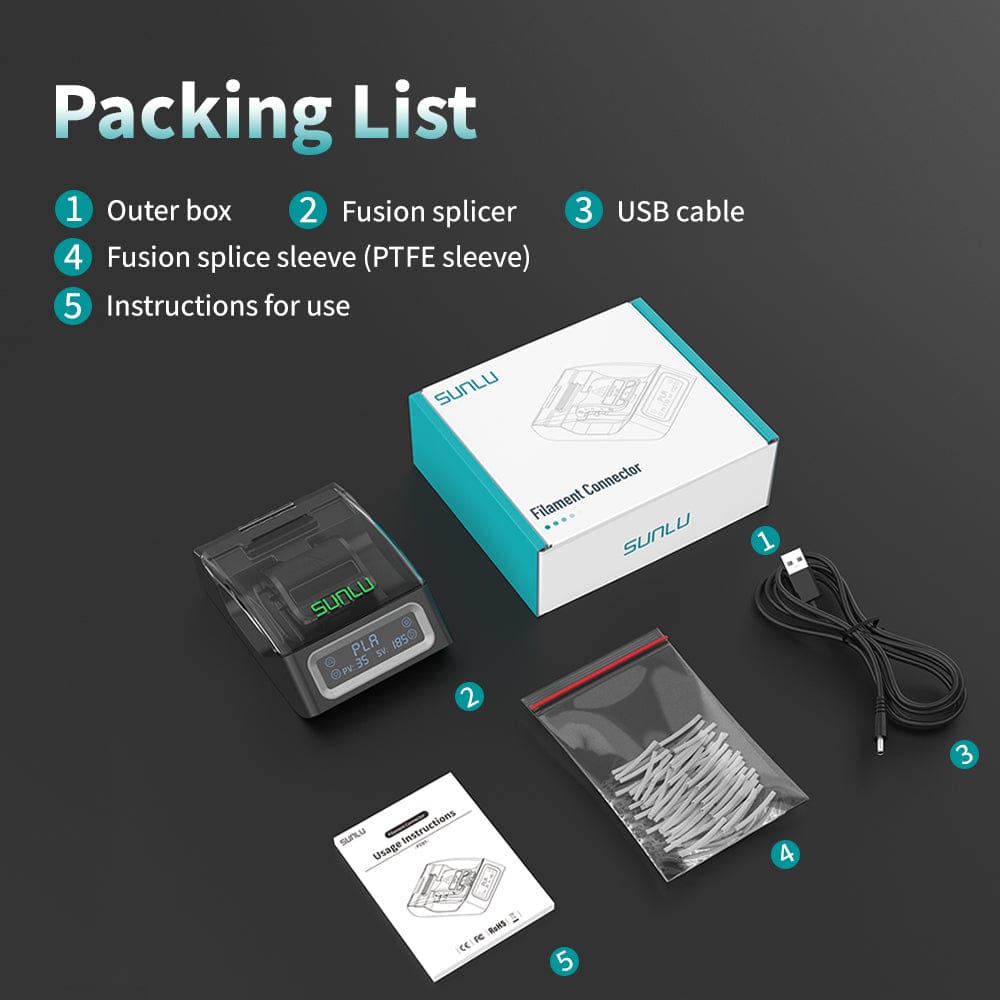

Package Contents:
1 * SUNLU Filament Connector FC01
1 * USB cable
1 * Teflon tubes set (approx. 200 pcs of PTFE sleeves)
1 * Usage Instruction
