Thermostat terneo s

terneo s thermostat – elegant sensor control

Тhe thermostat is designed to control heating floor in the range from 5 to 40 ° С. Temperature data is transmitted from a sensor placed in the floor.

Pleasant design and interface

The digital screen displays temperature and system messages. It also makes it easier to navigate the settings menu. Touch buttons on the case look more elegant and serve longer..

Useful additional features

You can set the start of heating by timer (from 0.5 to 99 hours). If you are going to leave the house for some time – set the timer, and when your return there will be a comfortable temperature.

The device maintains heating time statistics to help control power consumption. You can also adjust the temperature displayed on the screen.

Easy installation

All you need for installation is in the package! Installation is realized in a standard sub-socket with a diameter of 60 mm.

Safety first

The device is equipped with thermal protection. If the temperature inside the housing reaches 85 ° C, the thermostat will stop working until it drops to 80 ° C. You can also lock the buttons so that the heating parameters will not be accidentally changed, for example, by your children.

Universal thermostat

The device can be used with most of the heating cables, films and mats on the market.

Technical properties of terneo s

Sphere of application: for underfloor heating, for water heating floor
Type of control: digital
Installation method: in outlet box
Fusing current: 16A
Characteristics: built-in timer, protection from children
Minimum temperature, °C: +5
Maximum temperature, °C: +40
Maximum load power: 3000 VA
Supply voltage: 230 V ± 10 %
Weight of full package: 0,18 kg ± 10 %

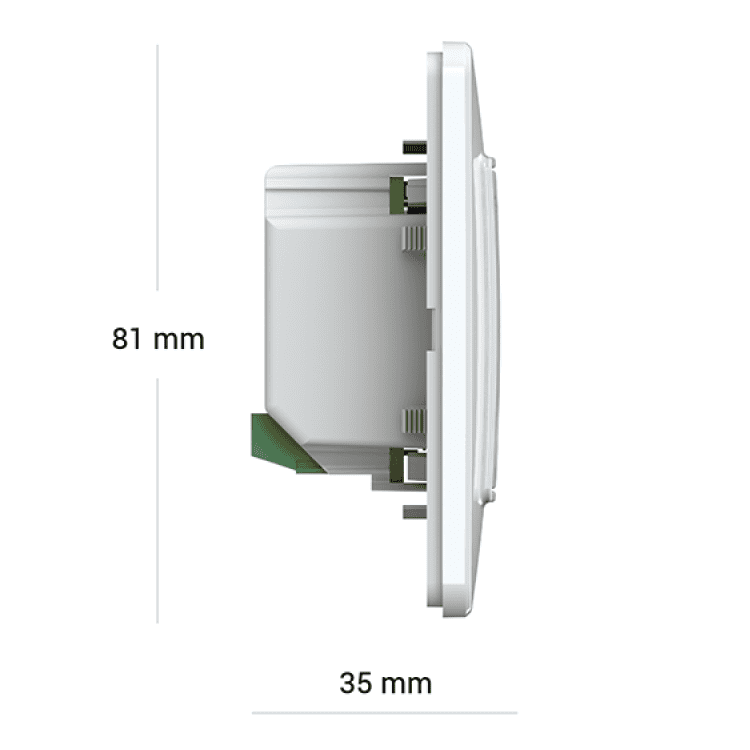

Overall dimensions (W x H x D): 75 х 75 х 34 mm
Inner overall dimensions of decorative frame: 45 х 45 mm
Temperature sensor: NTC thermo-resistor 10 KOM at 25 °C (R10)
Length of connection wire of sensor: 3 m
Number of actuations under load, not less than: 50 000 cycles
Number of actuations without load, not less than: 20 000 000 cycles
Temperature hysteresis: 1 °С
Range of measured temperatures: –26…+76 °С
IP rating: IP20
Supply package: Thermostat, frame, temperature sensor with connected sensor, warranty certificate, technical passport, instruction, the packing box
